Alternator Pulley / Clutch: Service and Repair
AR15.40-P-5710TI Remove/install
alternator
belt pulley

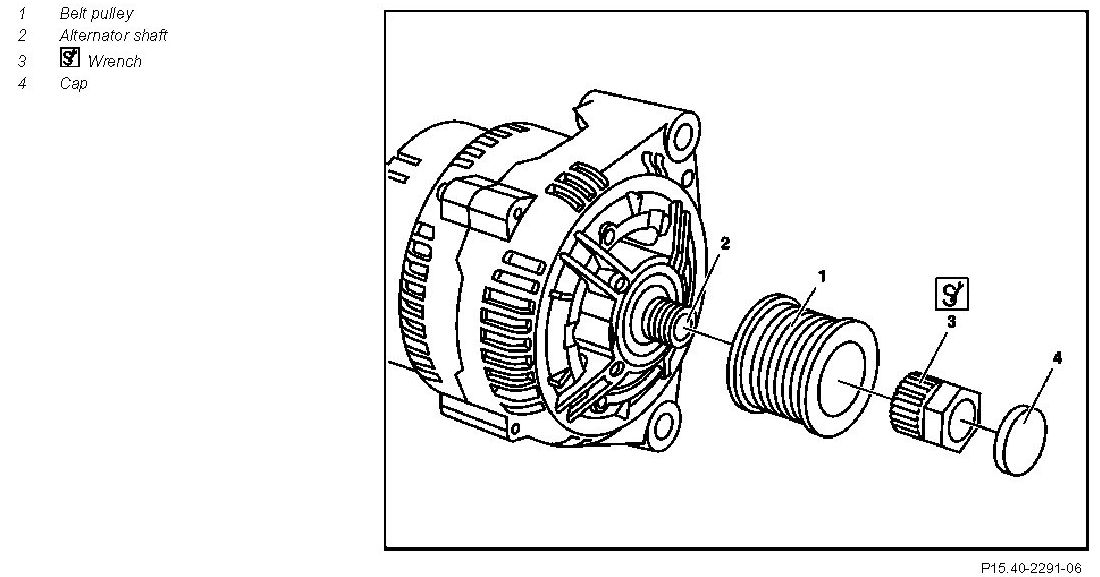

Component Identification:

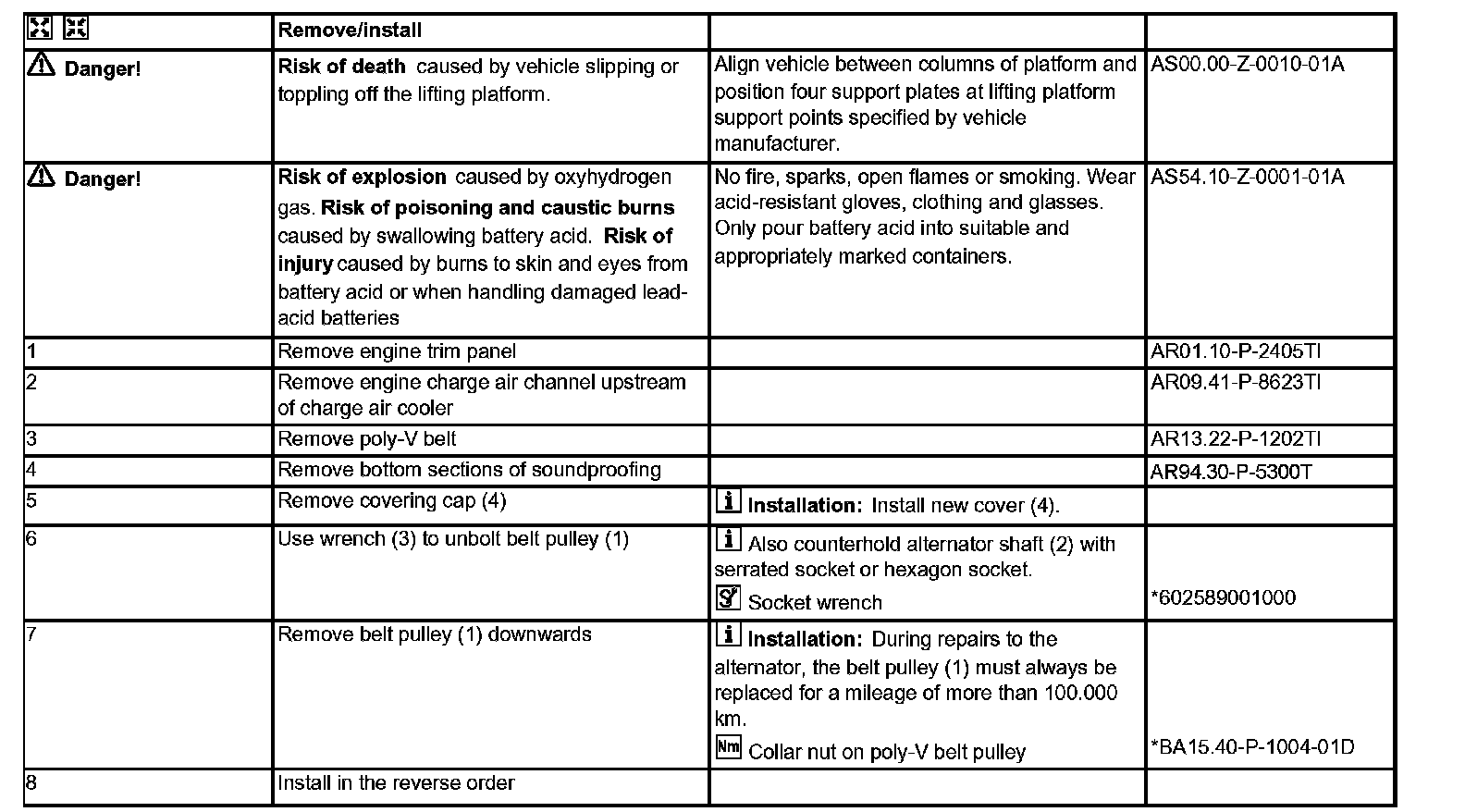

Remove/install Steps 1-8:
Alternator:

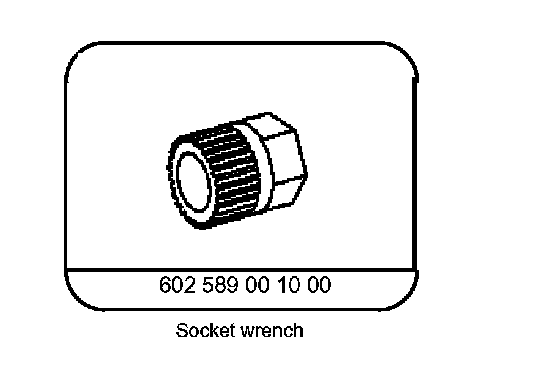

Special Tools:
