AR54.10-P-1129TX Check Condition of Battery
AR54.10-P-1129TX Check Condition of Battery
AR54.10-P-1129TX Check Condition Of Battery

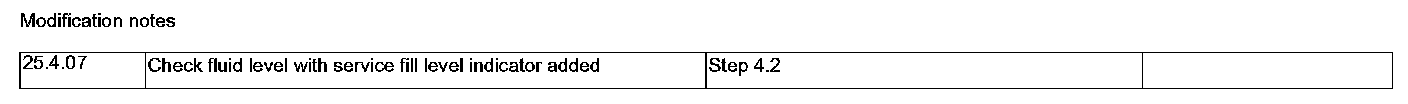

Modification Notes:

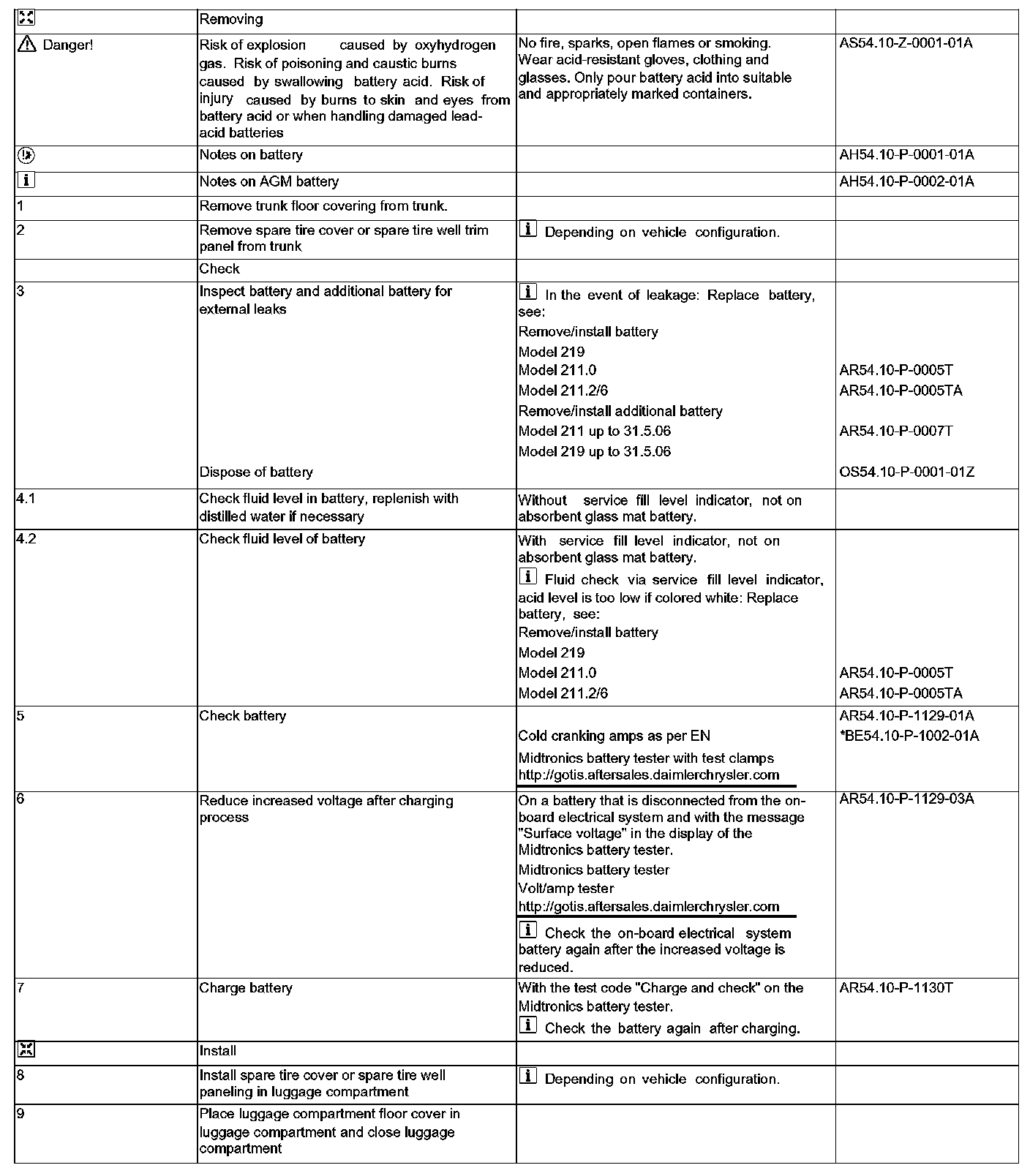

Steps 1 - 9:

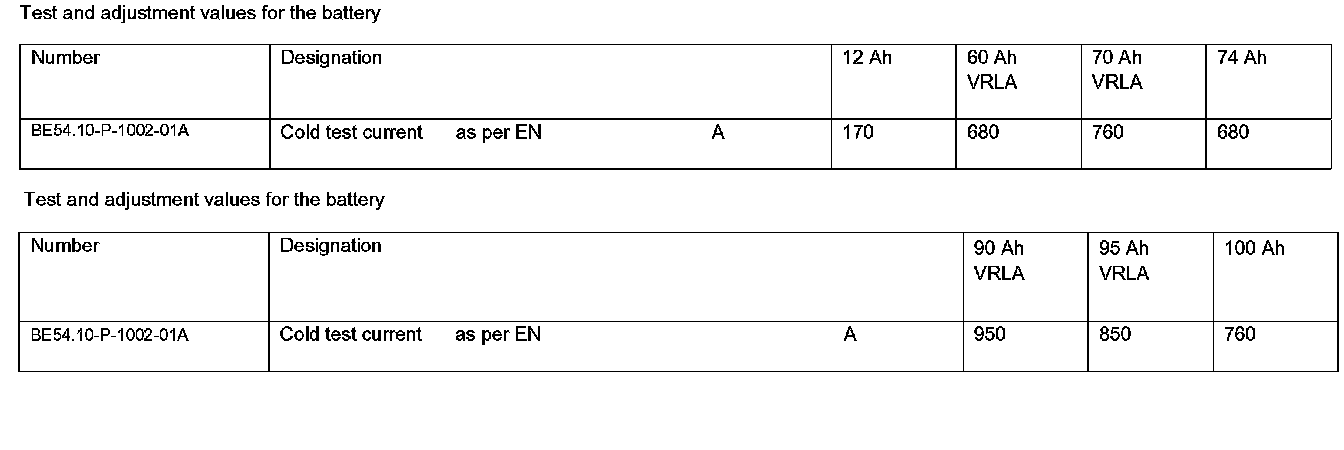

Test And Adjustment Values For The Battery:
