AH54.10-P-0003-01T Notes on Quiescent Power Consumption

AH54.10-P-0003-01T Notes On Quiescent Power Consumption

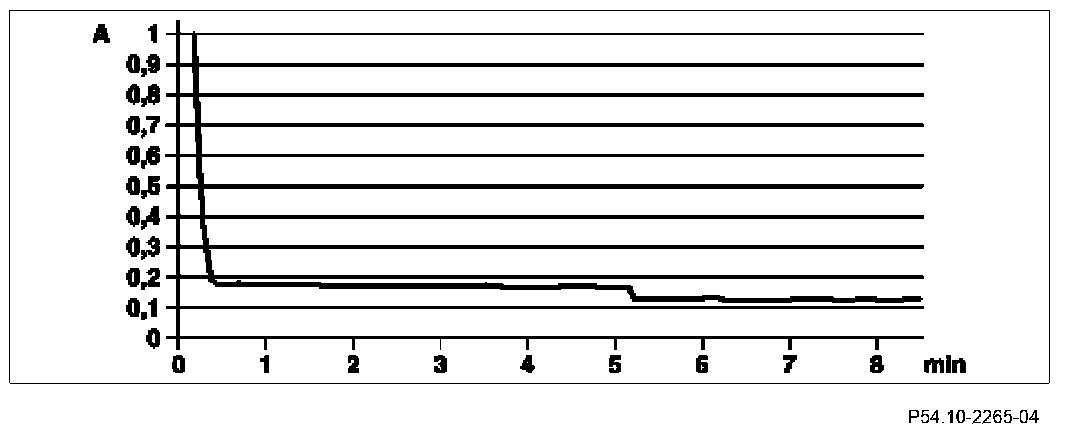

Example of measurement curve for quiescent power consumption







Observe the following characteristic values:
Value 1.2 to 1.9 A: No bus sleep mode, one control module keeps the entire bus awake.

Value 80 to 180 mA: One control module does not switch off resulting in increased quiescent power consumption.

Value < 60 mA: This value should be reached after one half hour at the latest.
