Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Wiper and Washer Systems >> BE82.30-P-1000-01E Adjustment Values For Windshield Wiper

BE82.30-P-1000-01E Adjustment Values For Windshield Wiper



BE82.30-P-1000-01E Adjustment Values For Windshield Wiper

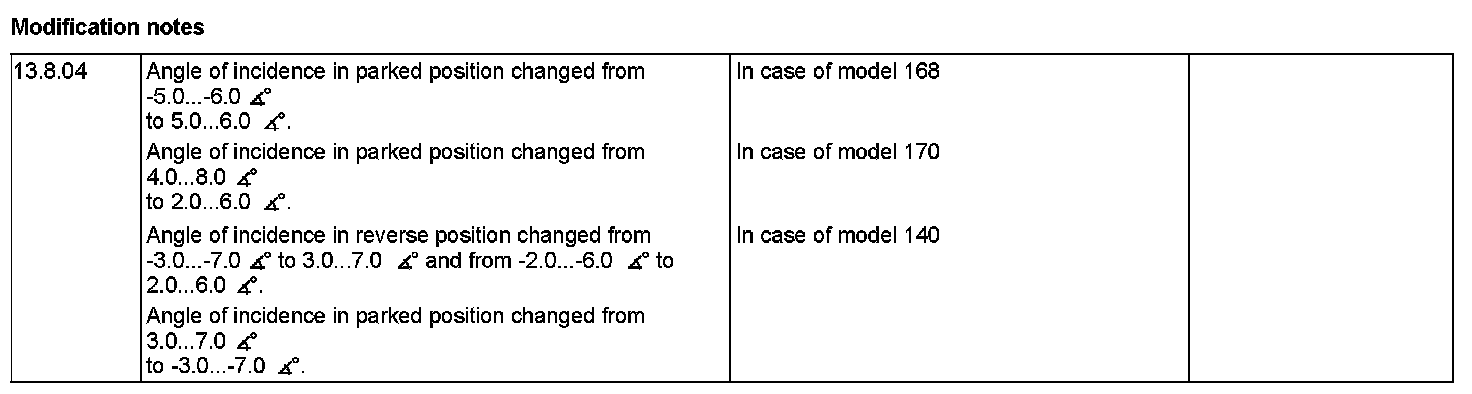

Modification Notes:

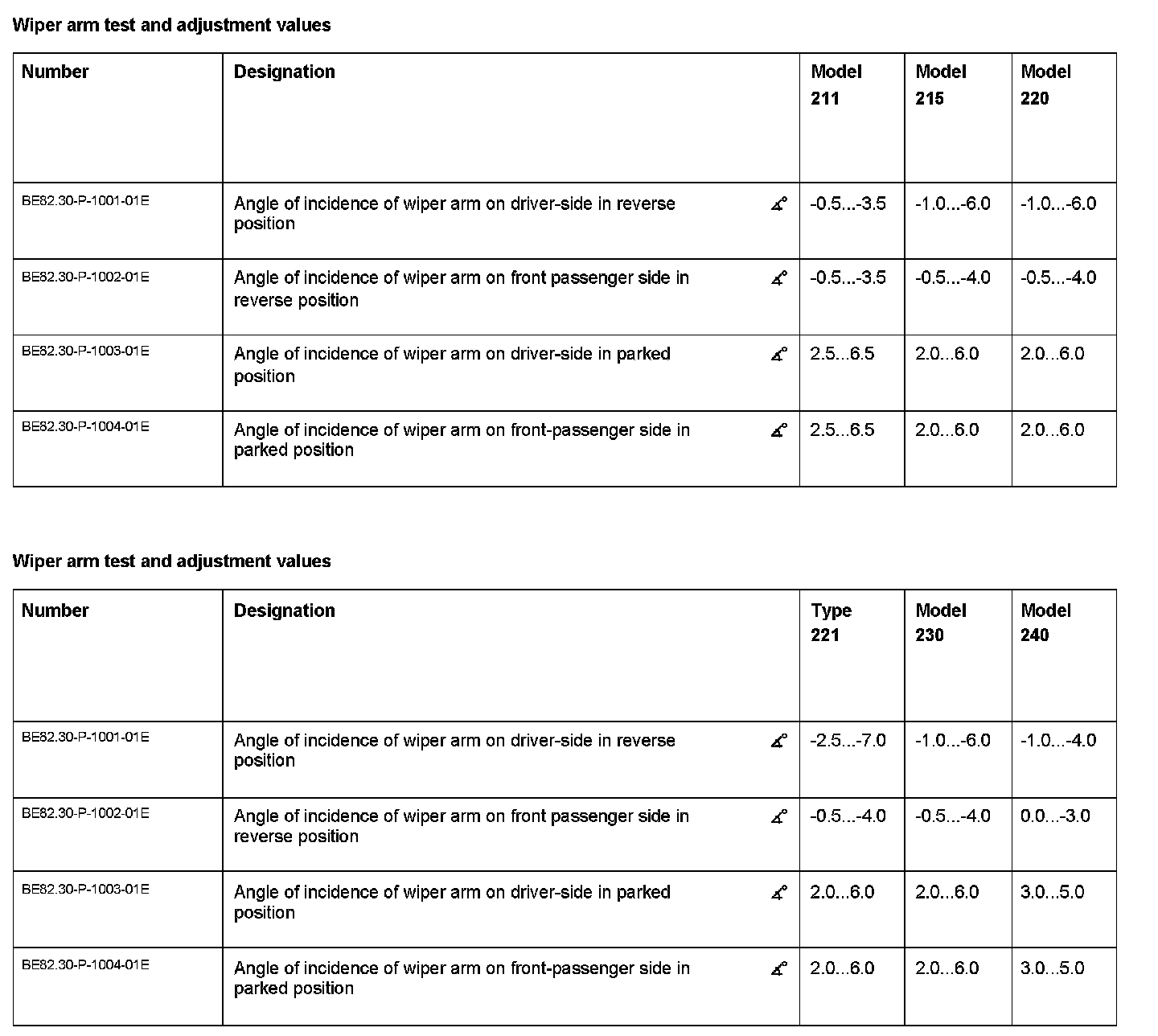

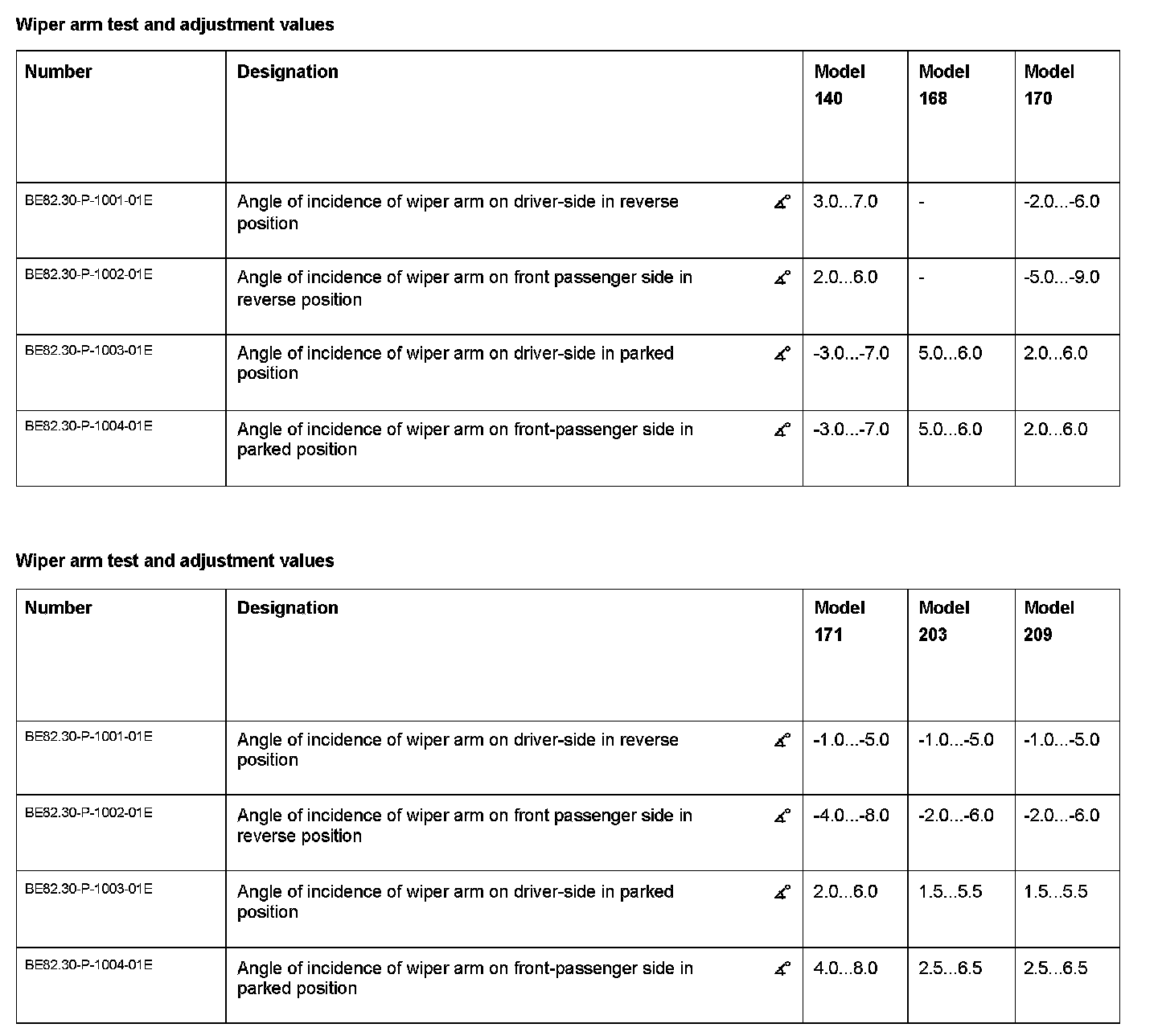

Wiper Arm Test And Adjustment Values:




Wiper Arm Test And Adjustment Values:
