Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Powertrain Management >> Glow Plug System

Glow Plug System

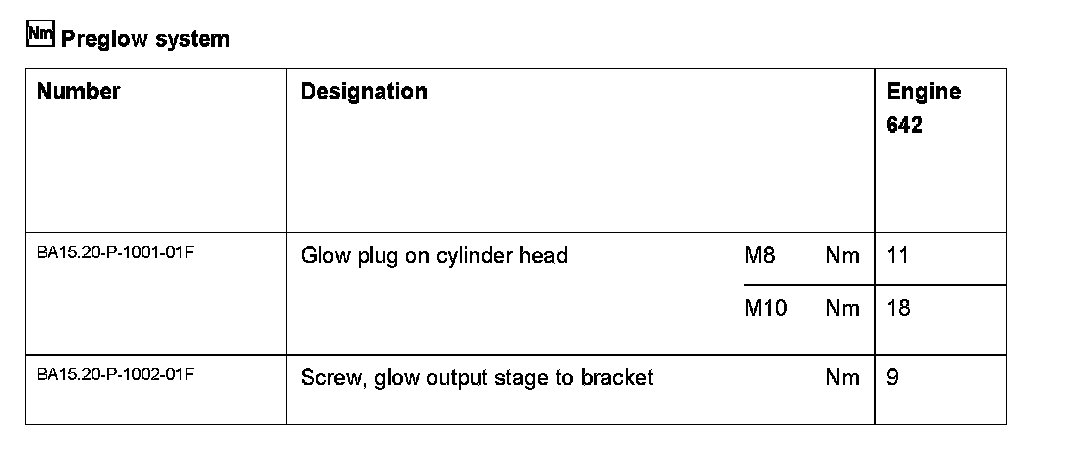

BA15.20-P-1000-01F Preglow System
ENGINE 642
