Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Oil Pan, Engine >> Oil Pan Bolts

Oil Pan Bolts

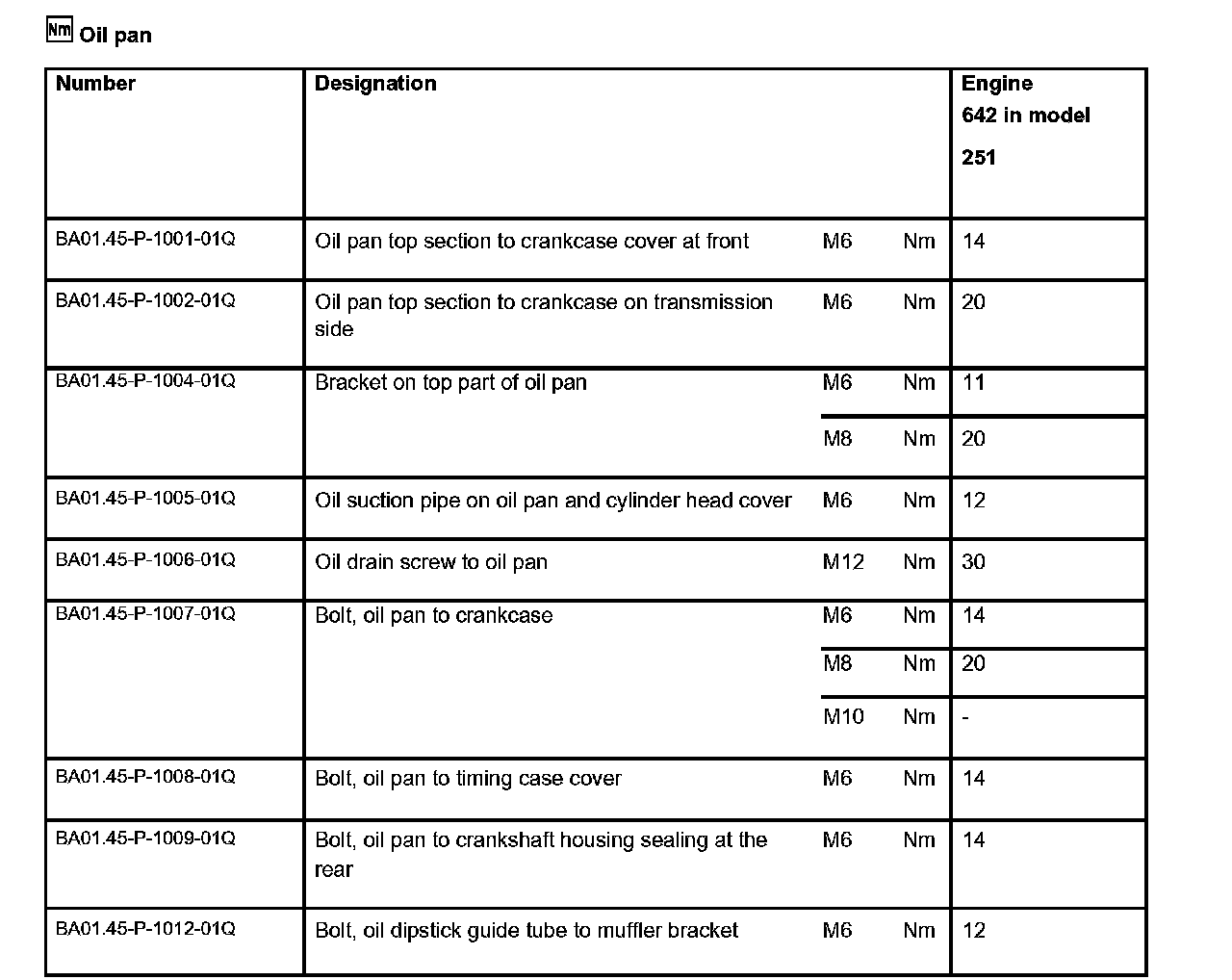

Oil pan:

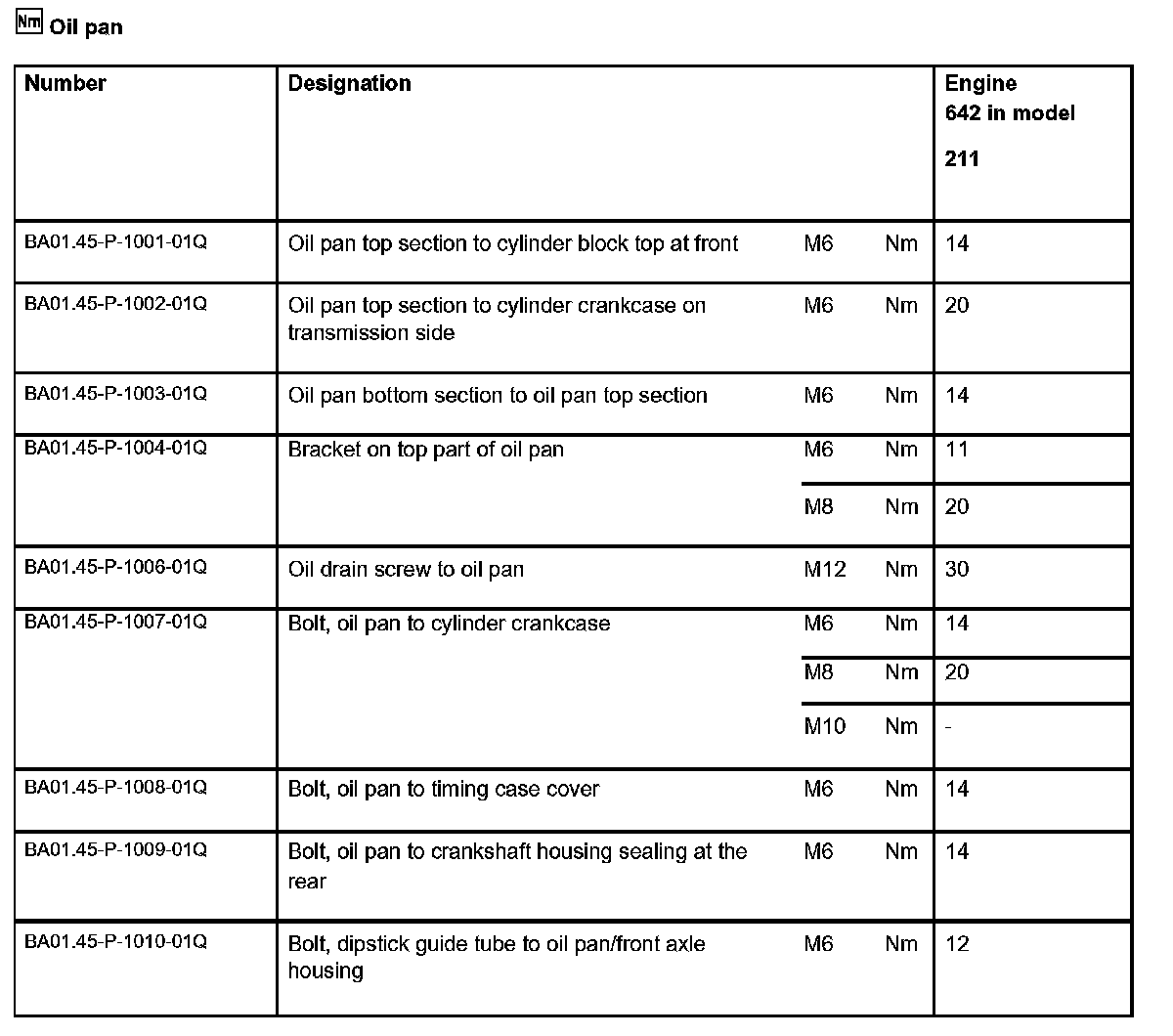

Oil pan:

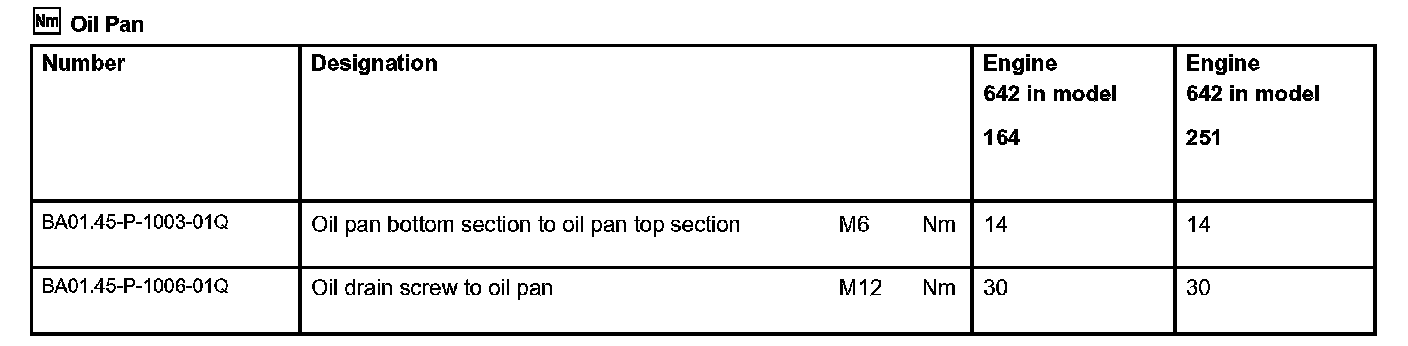

Oil pan:

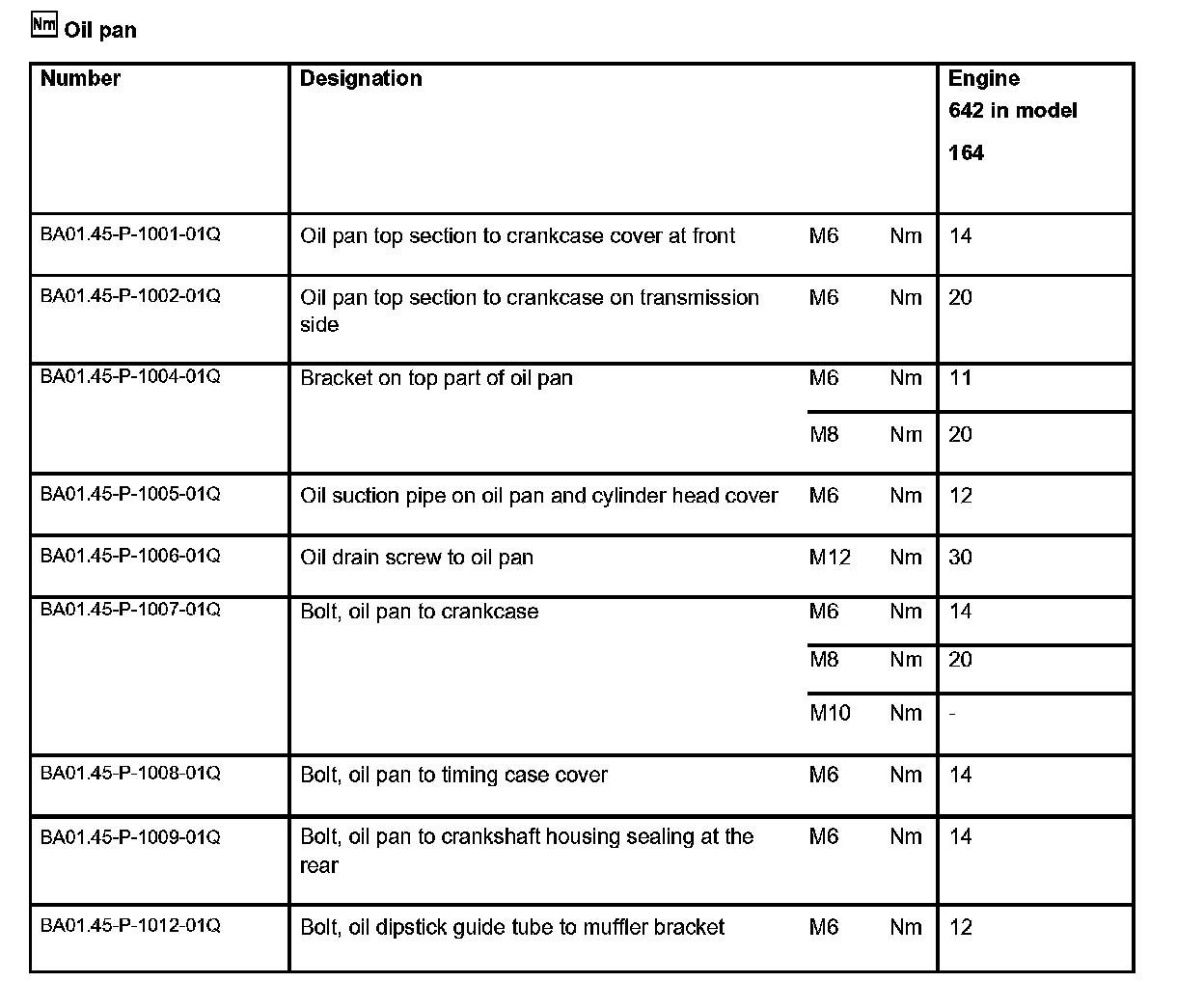

Oil pan:




Oil pan:
