BE01.30-P-1000-02B Inspection Data For Cylinder Head



BE01.30-P-1000-02B Inspection data for cylinder head

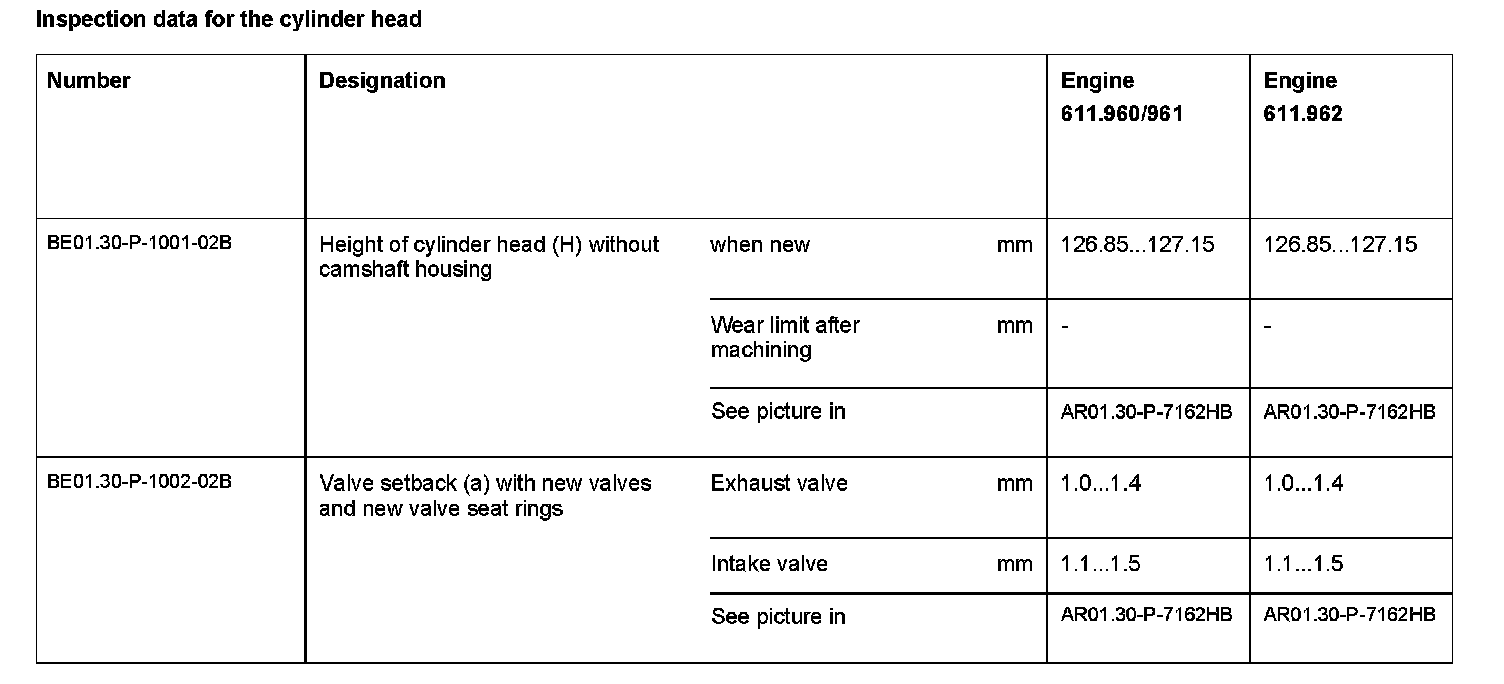

Inspection data for the cylinder head:

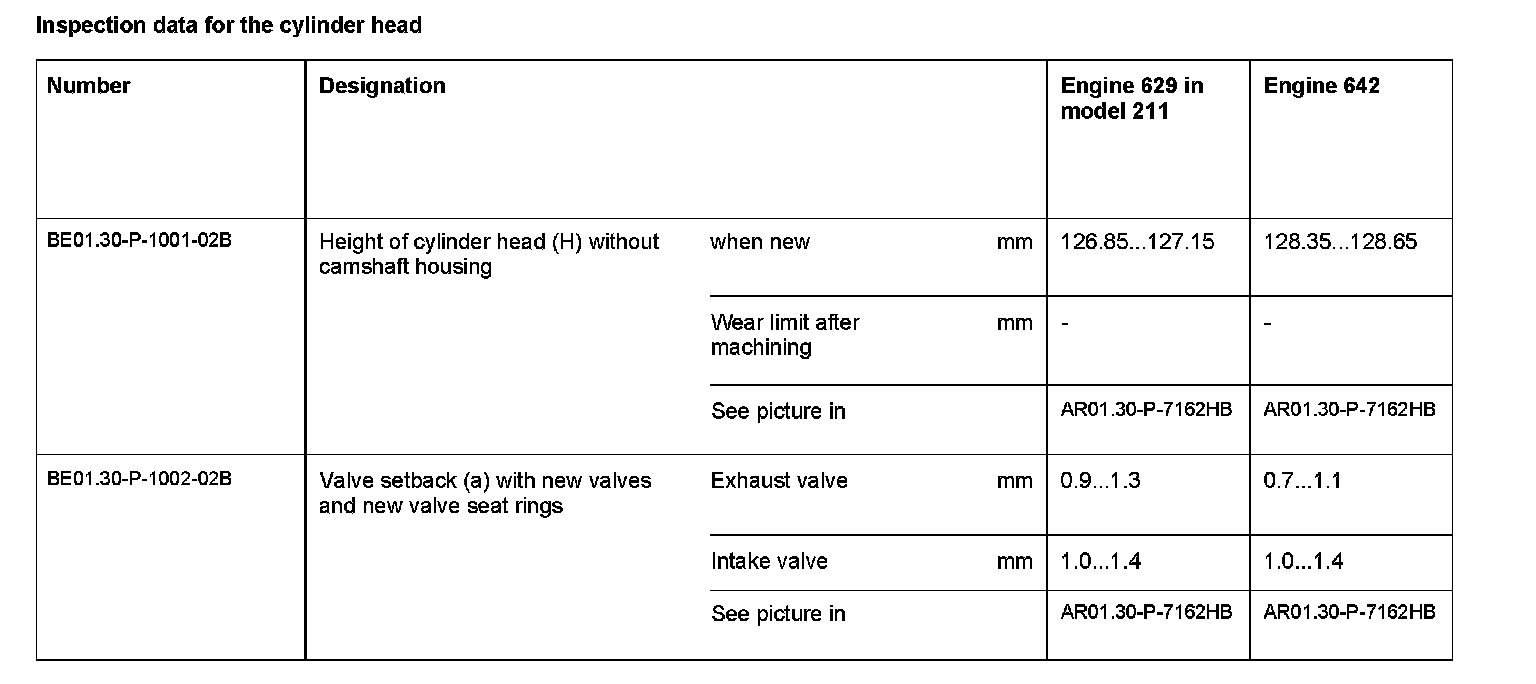

Inspection data for the cylinder head:

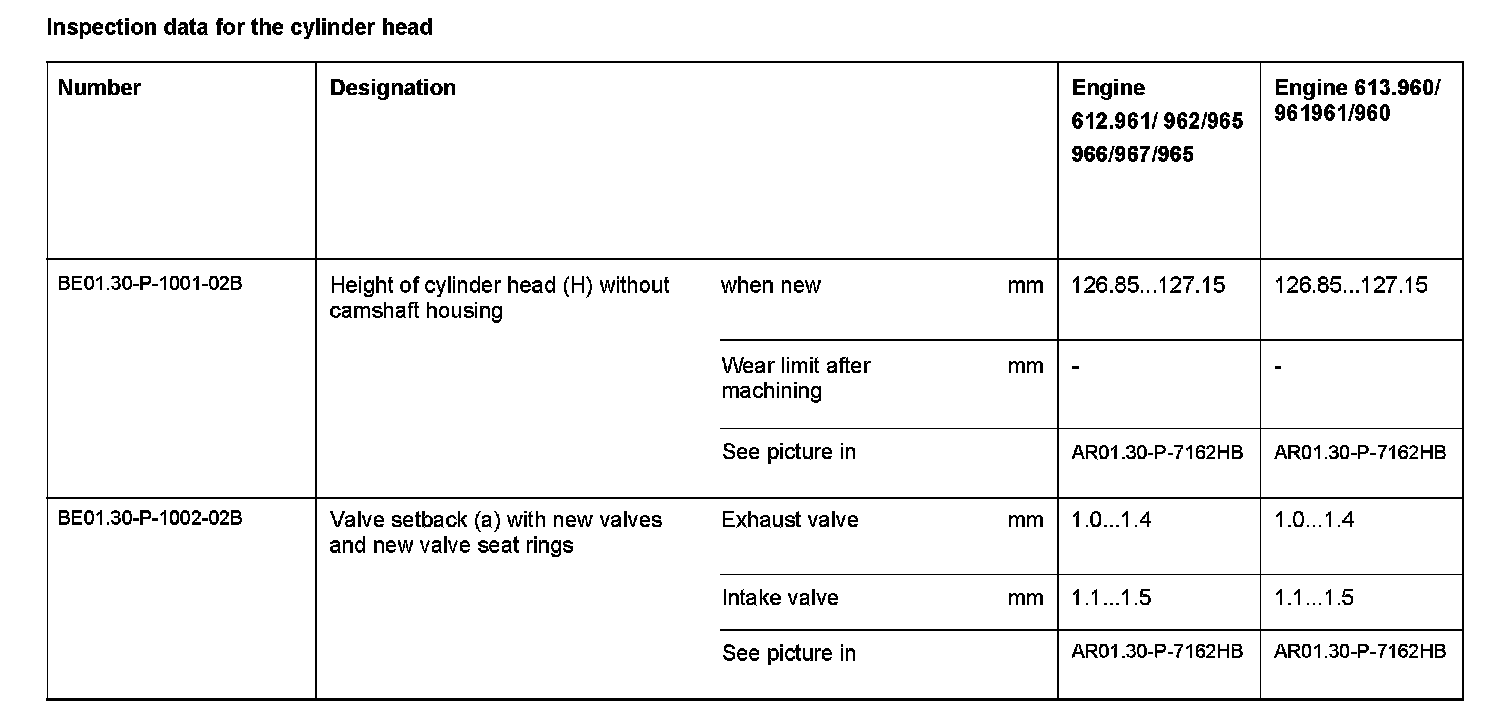

Inspection data for the cylinder head:

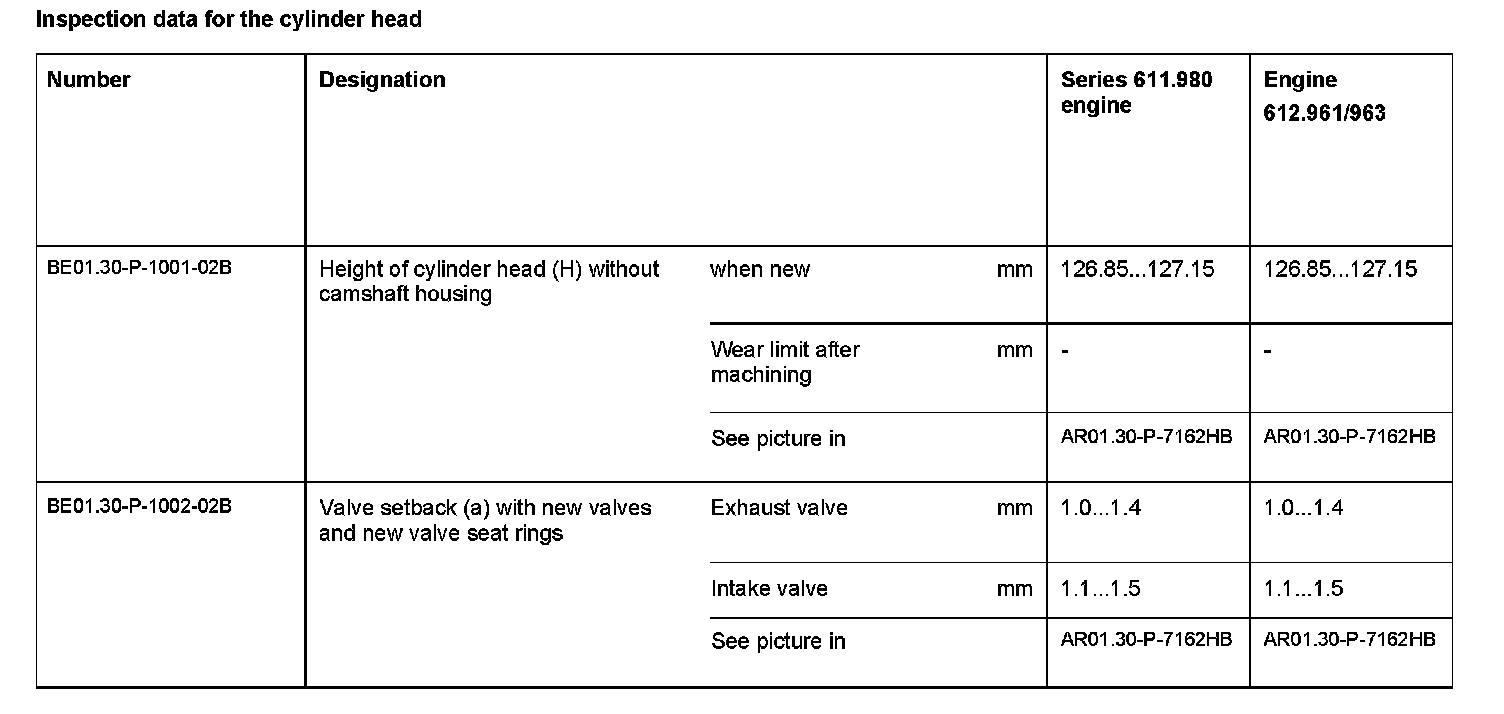

Inspection data for the cylinder head:
