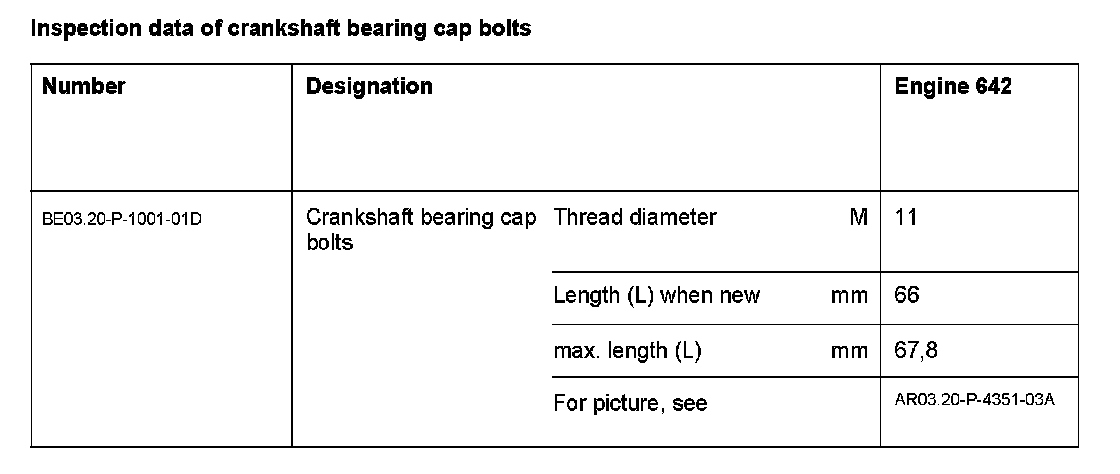

BE03.20-P-1000-01D Inspection Data of Bolts of Crankshaft Bearing Caps
BE03.20-P-1000-01D Inspection Data of Bolts of Crankshaft Bearing Caps
BE03.20-P-1000-01D Inspection Data Of Bolts Of
Crankshaft
Bearing Caps
ENGINE 642
