Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Crankshaft, Engine >> BA03.20-P-1000-01E Crankshaft

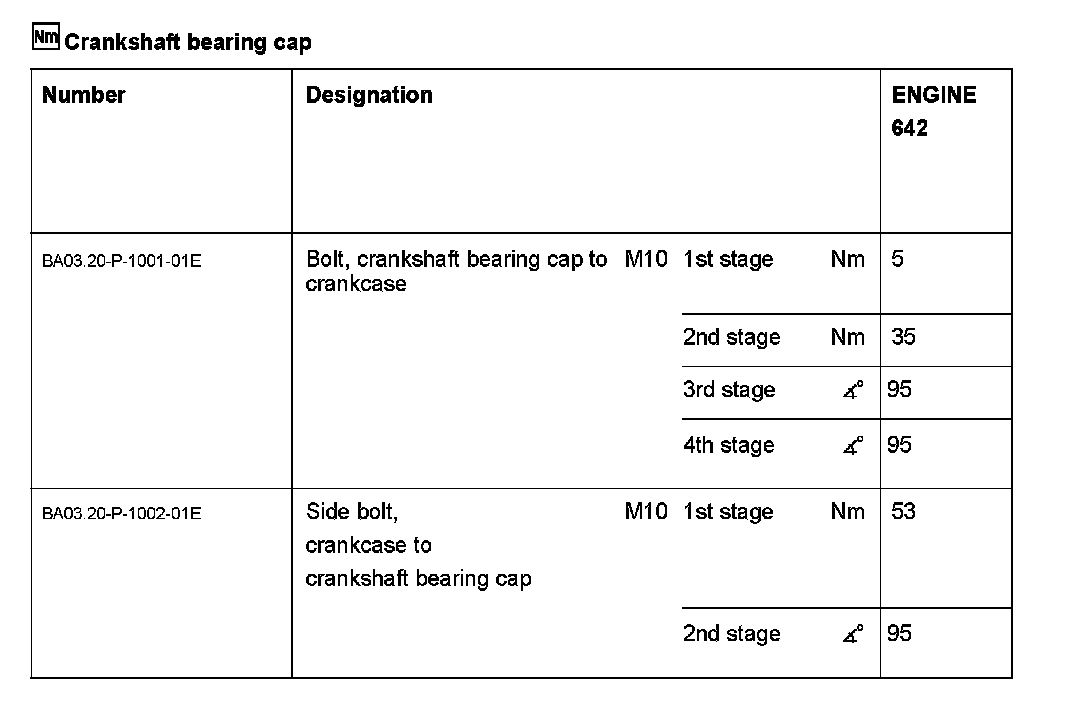

BA03.20-P-1000-01E Crankshaft



BA03.20-P-1000-01E Crankshaft
ENGINE 642
