BA62.30-P-1000-02A Front End With Front Reinforcement



BA62.30-P-1000-02A Front End With Front Reinforcement

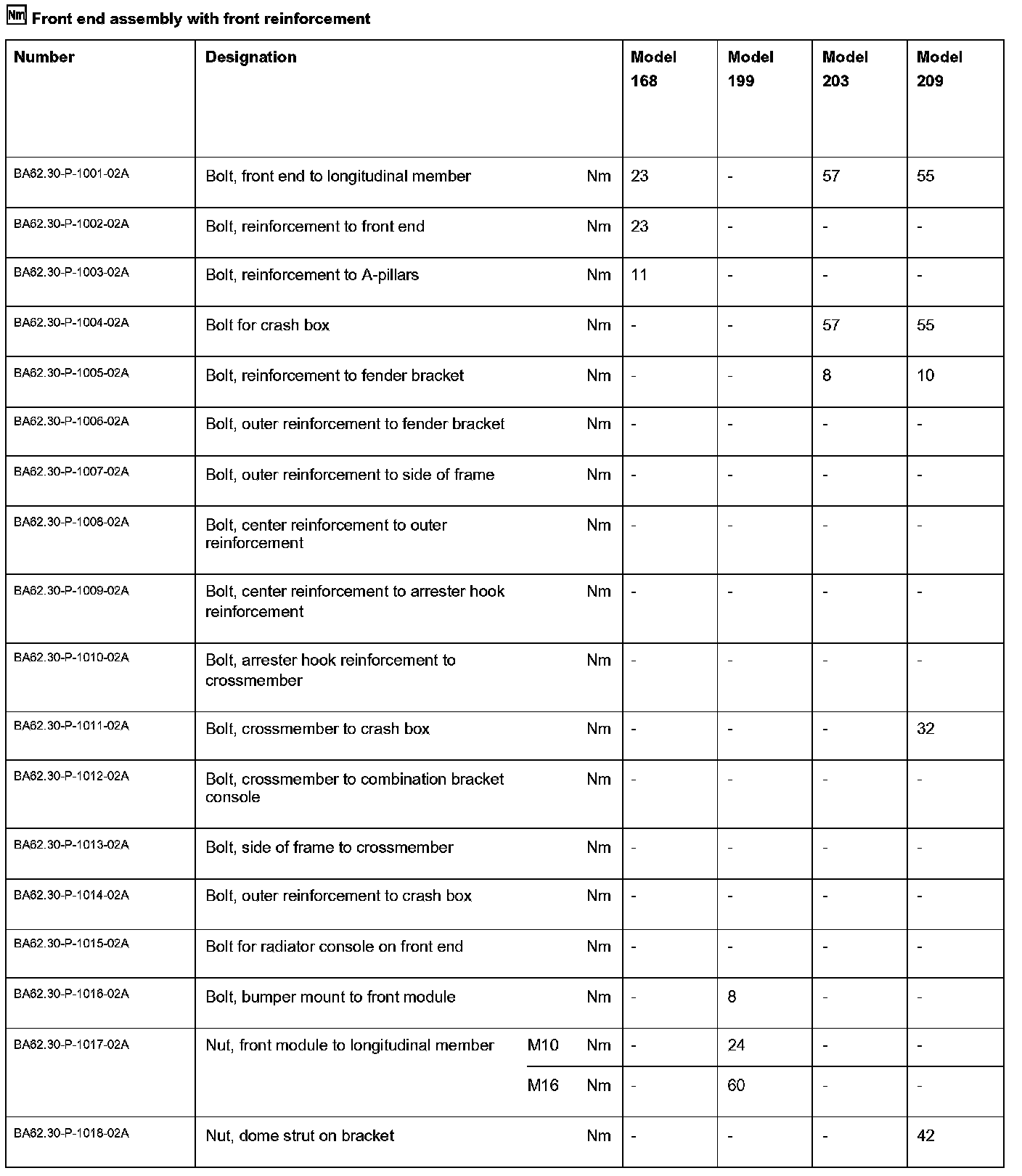

Front End Assembly With Front Reinforcement:

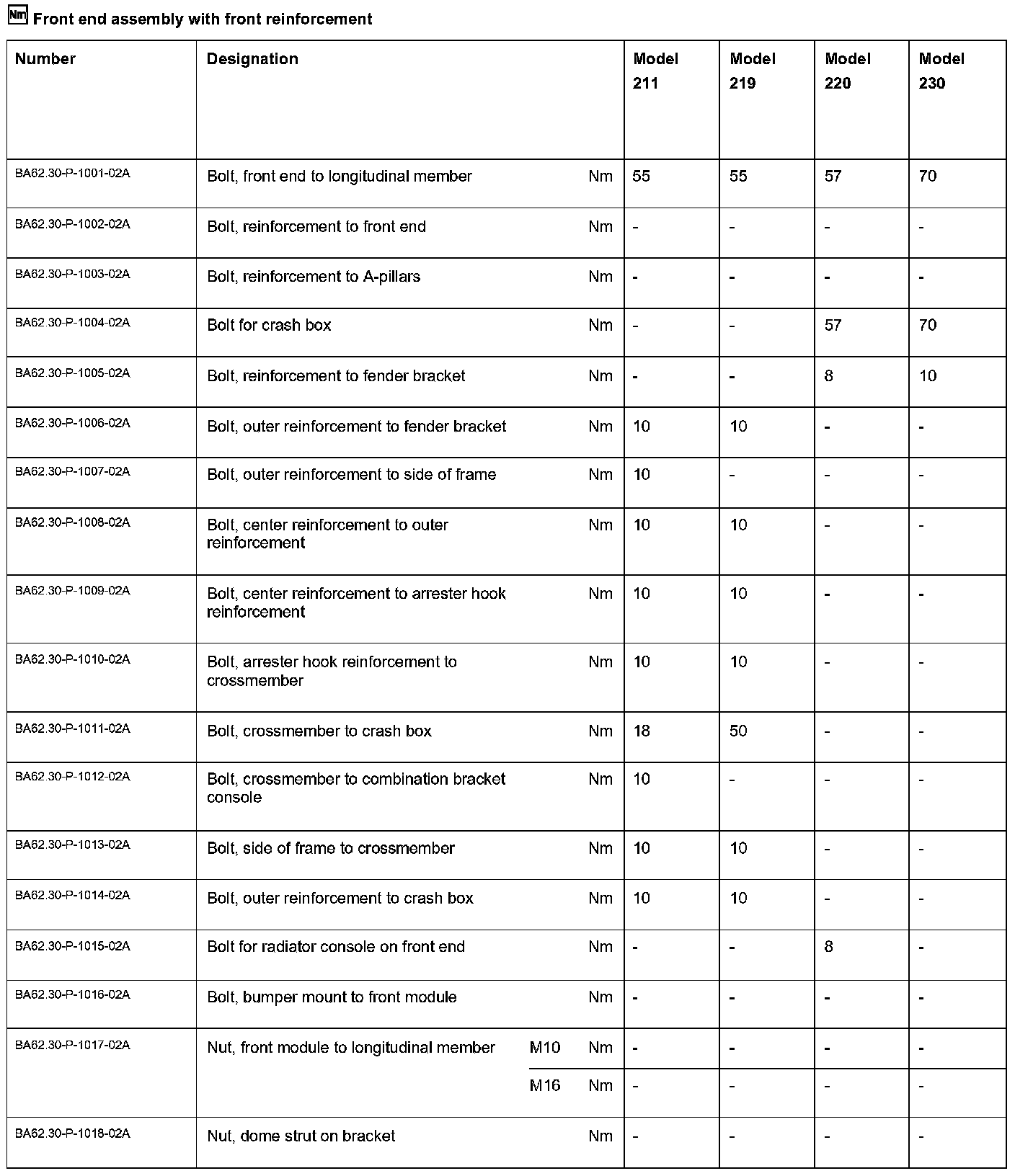

Front End Assembly With Front Reinforcement:

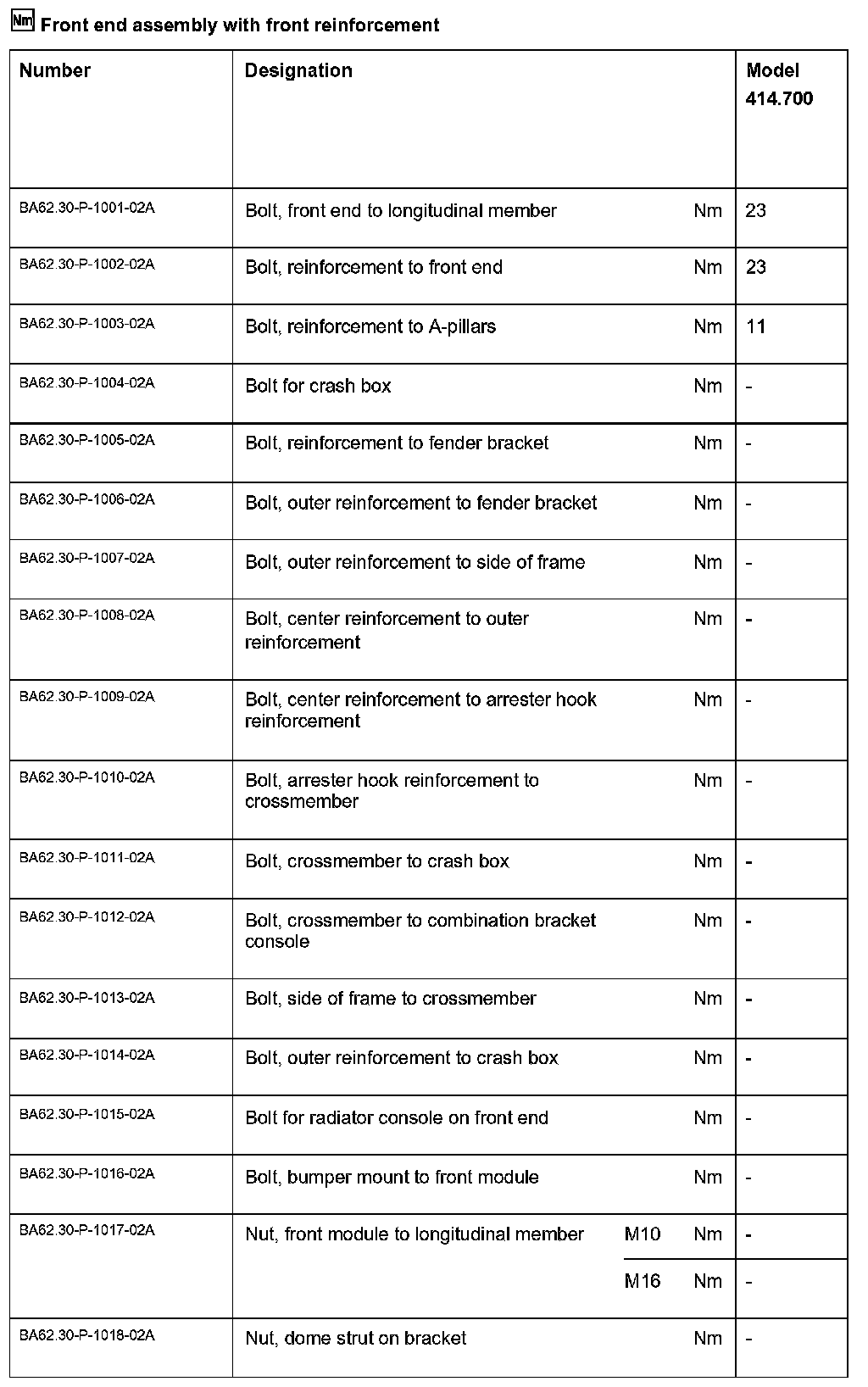

Front End Assembly With Front Reinforcement:
