Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> BE27.51-P-1000-01C Multi-Disk Clutch

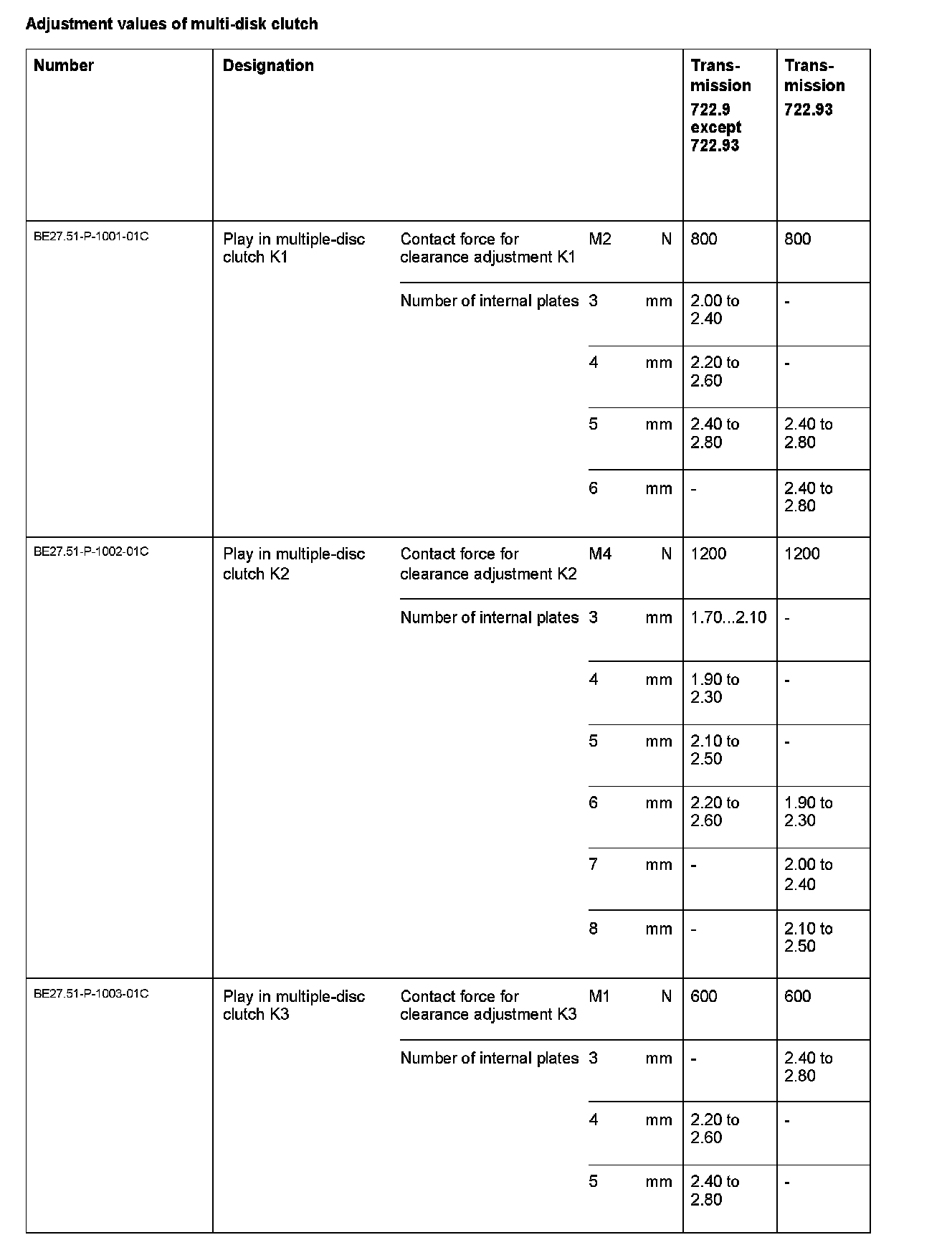

BE27.51-P-1000-01C Multi-Disk Clutch



BE27.51-P-1000-01C Multi-disk Clutch
Transmission 722.9
