Vehicle Level - Front Axle



BE40.20-P-1000-02I Vehicle level - front axle

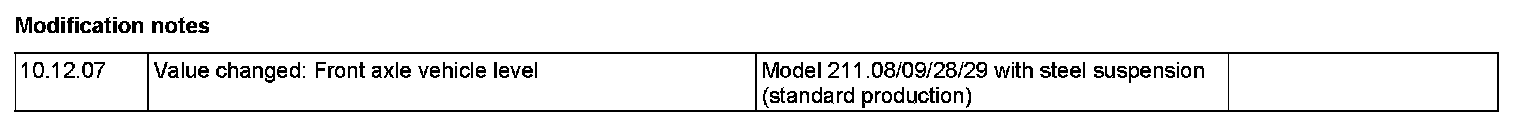

Modification Notes:

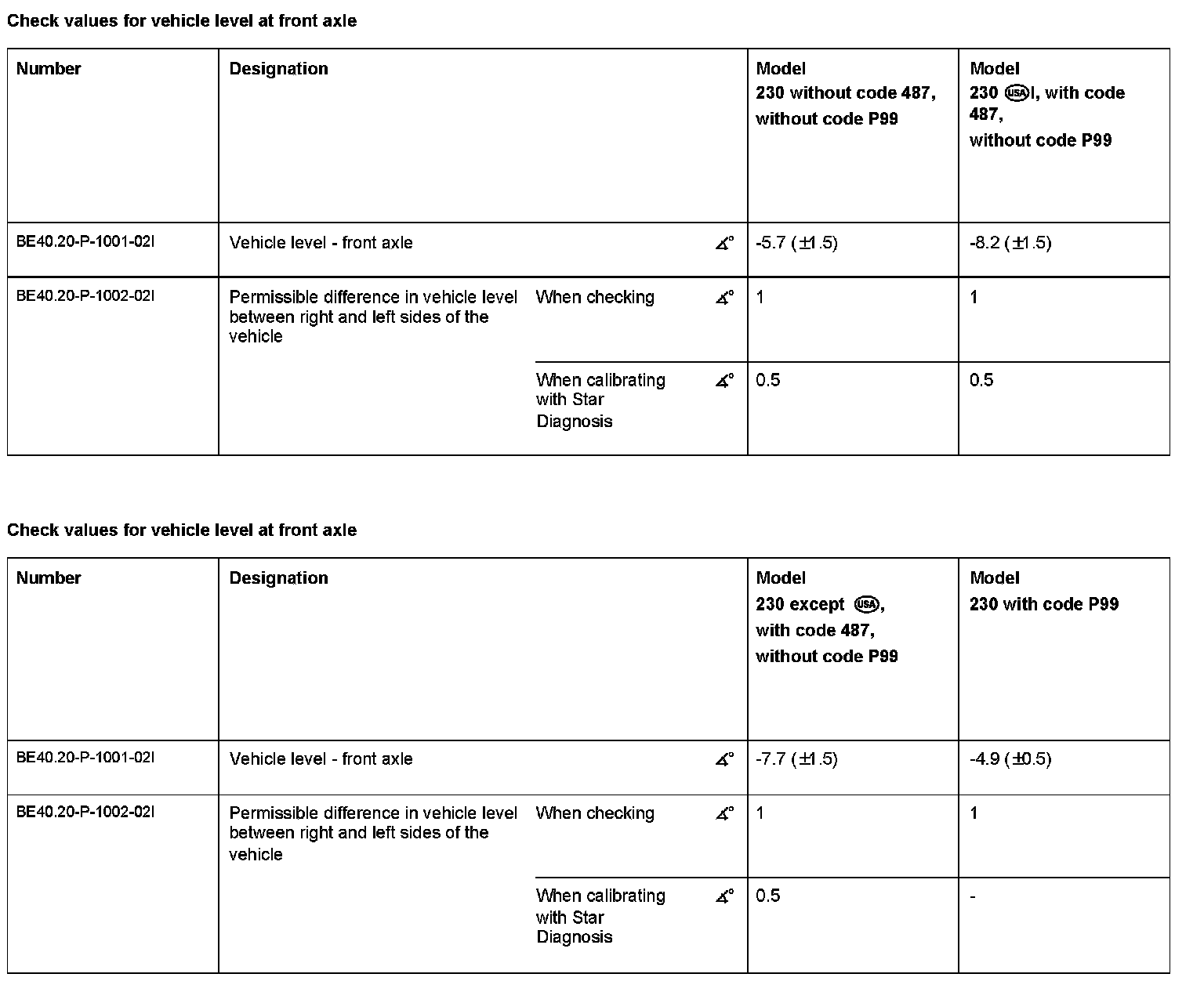

Check Values For Vehicle Level At Front Axle:

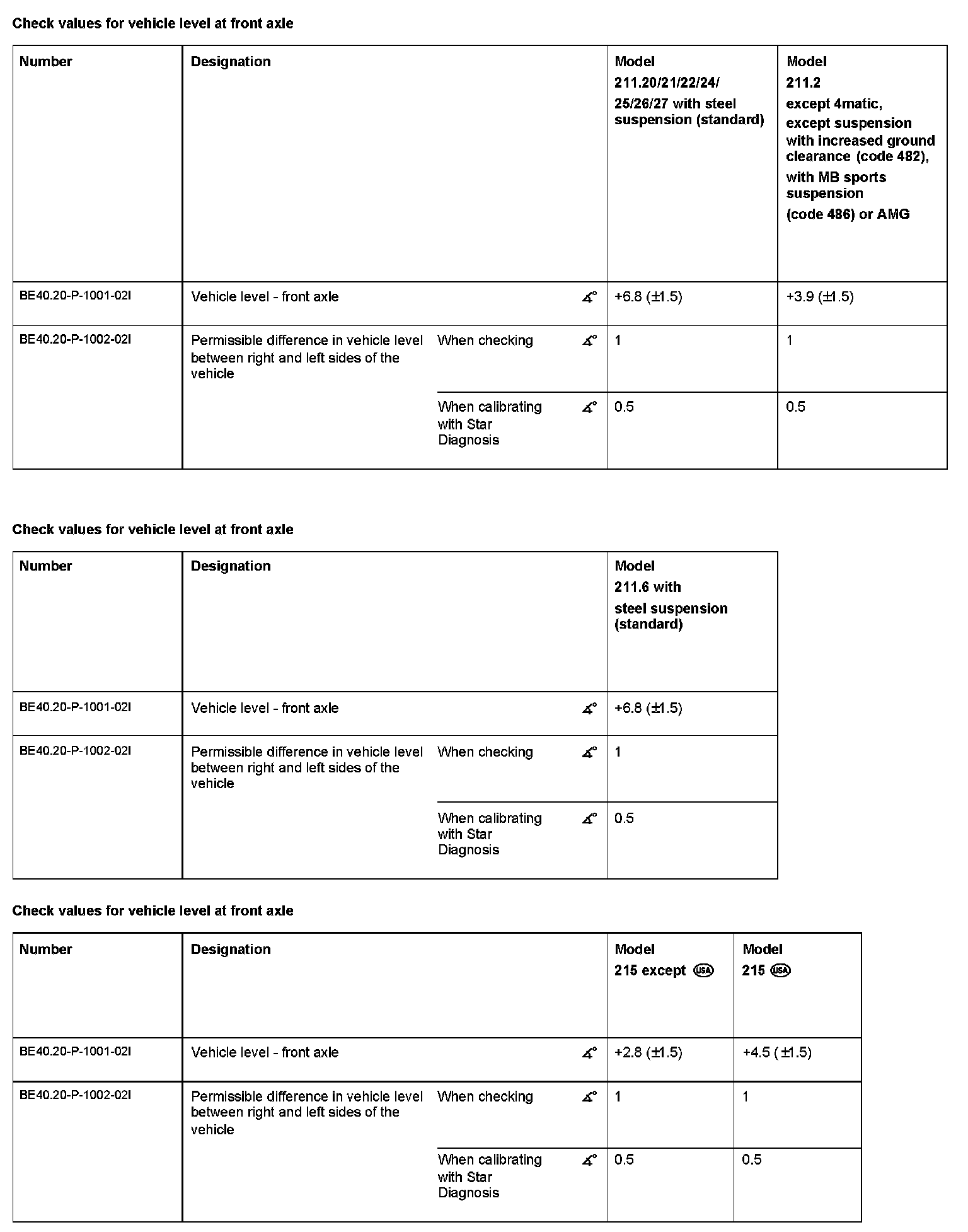

Check Values For Vehicle Level At Front Axle:

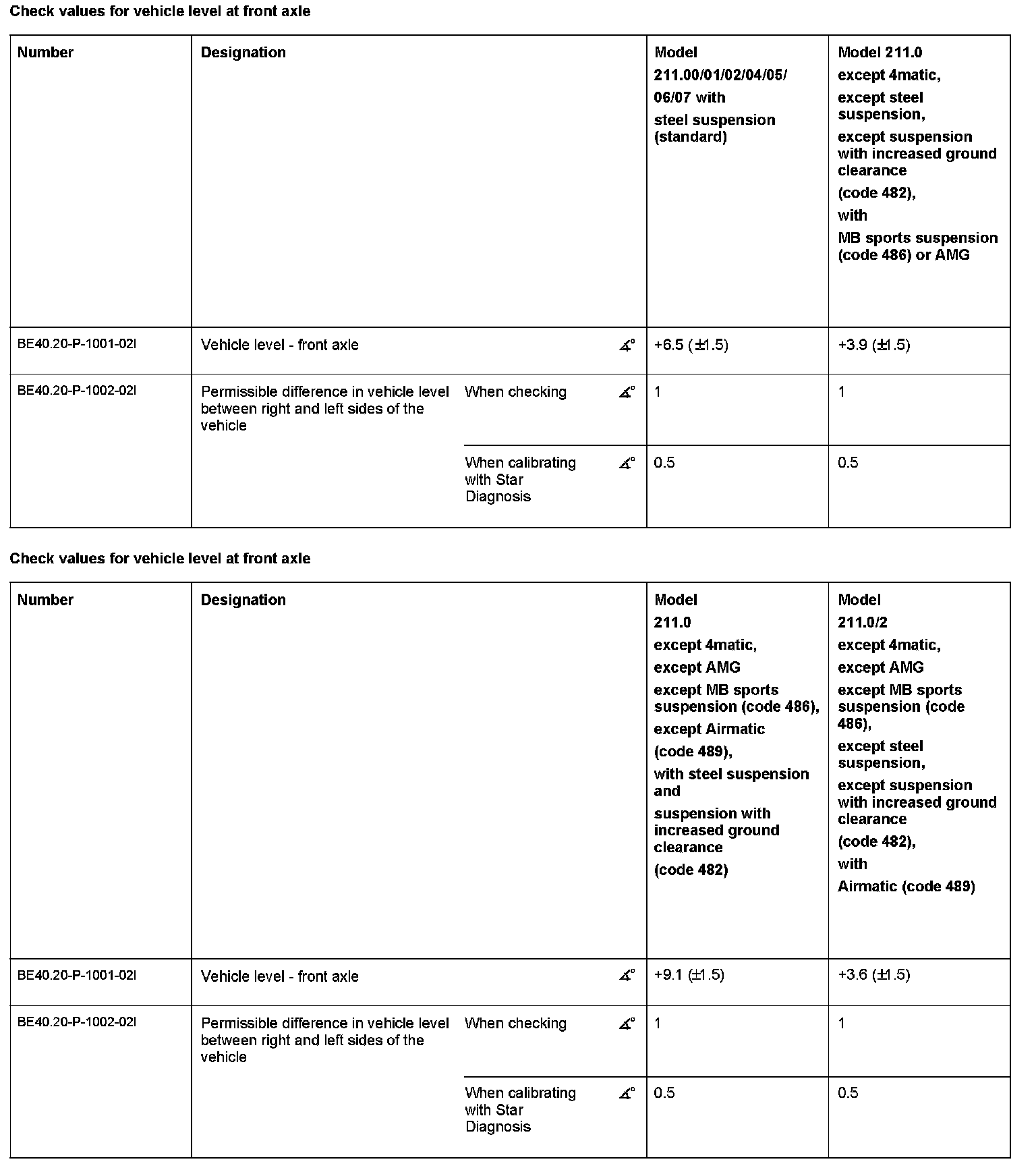

Check Values For Vehicle Level At Front Axle:

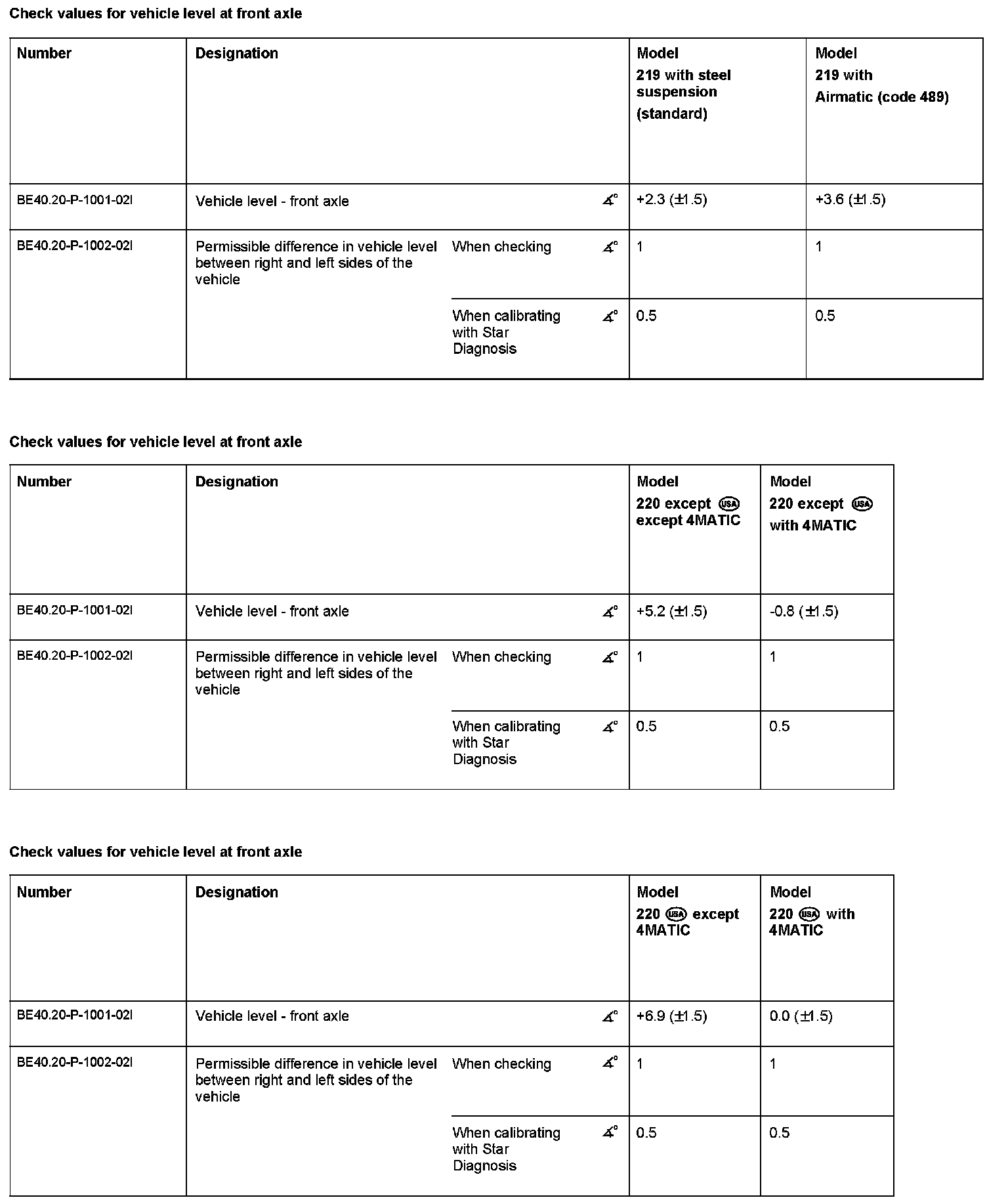

Check Values For Vehicle Level At Front Axle:

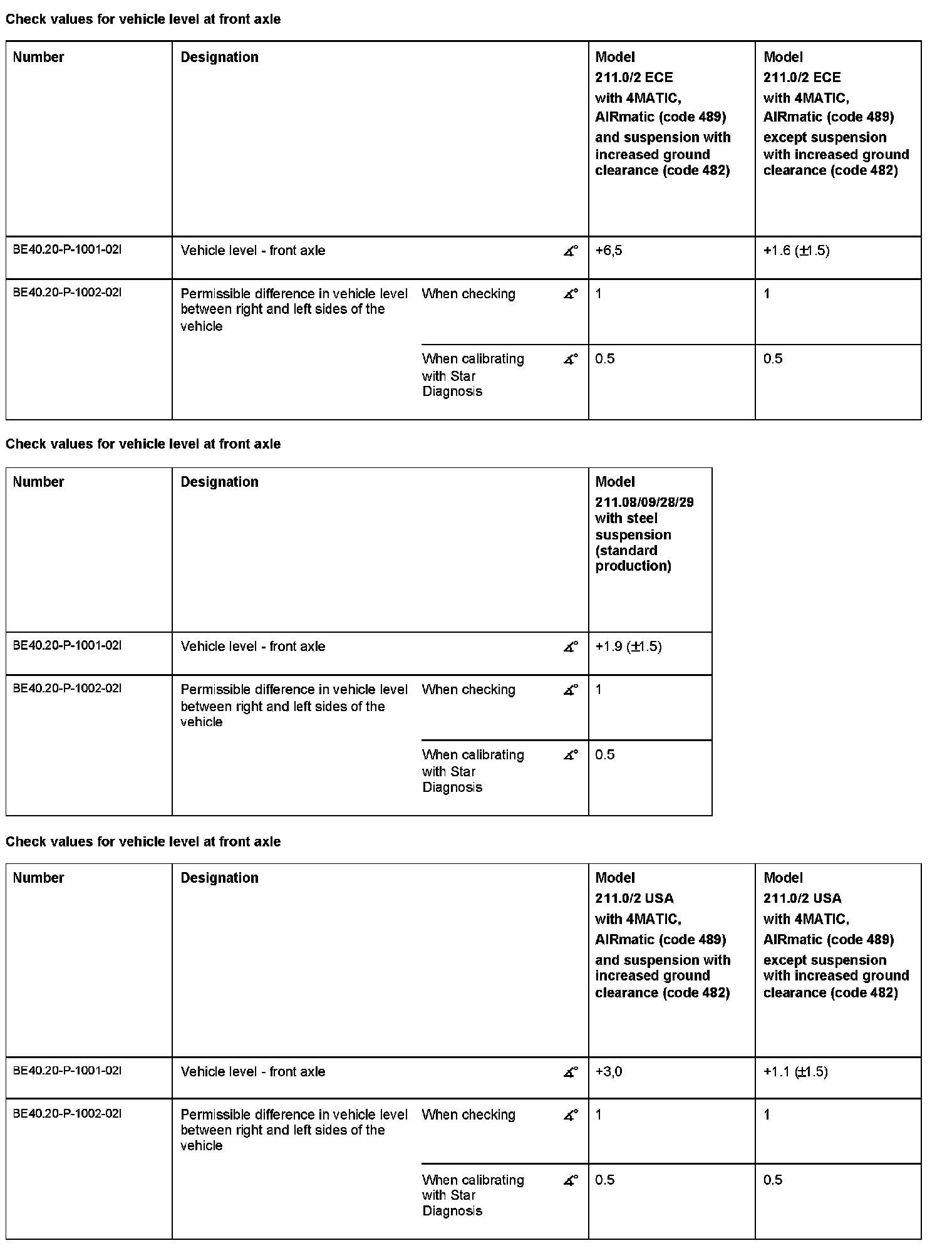

Check Values For Vehicle Level At Front Axle:
