Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Voltage Regulator

Voltage Regulator



BE15.40-P-1000-02C Governor

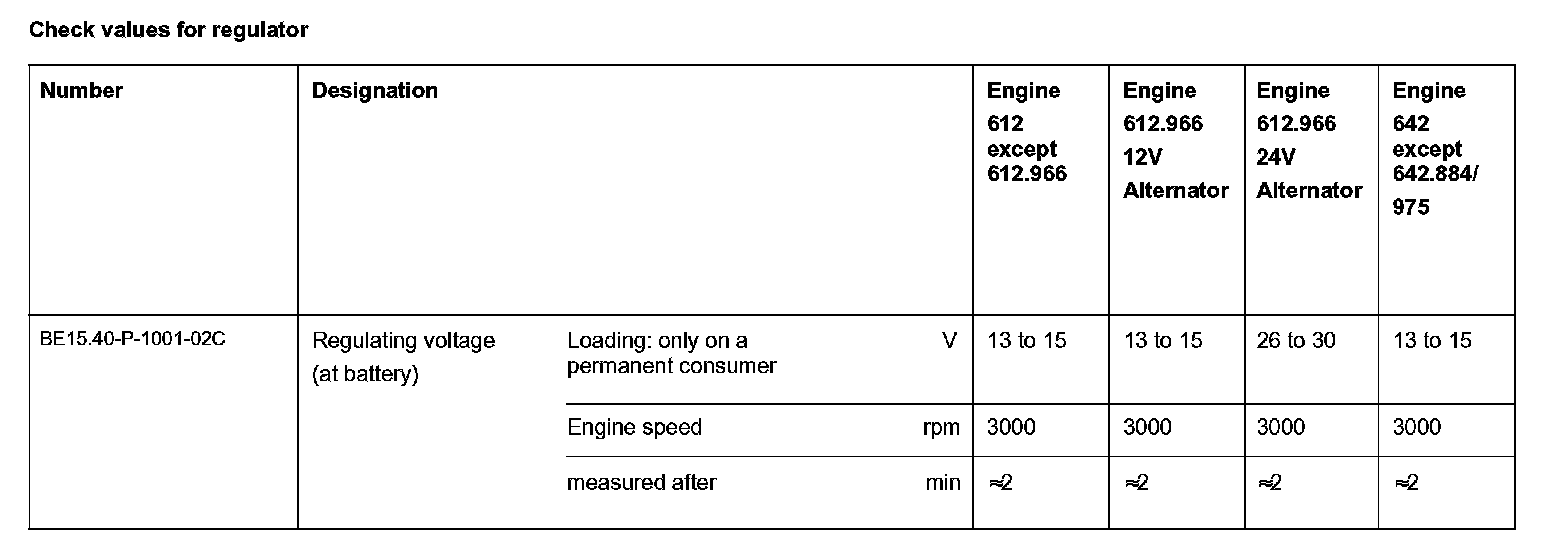

Check values for regulator:

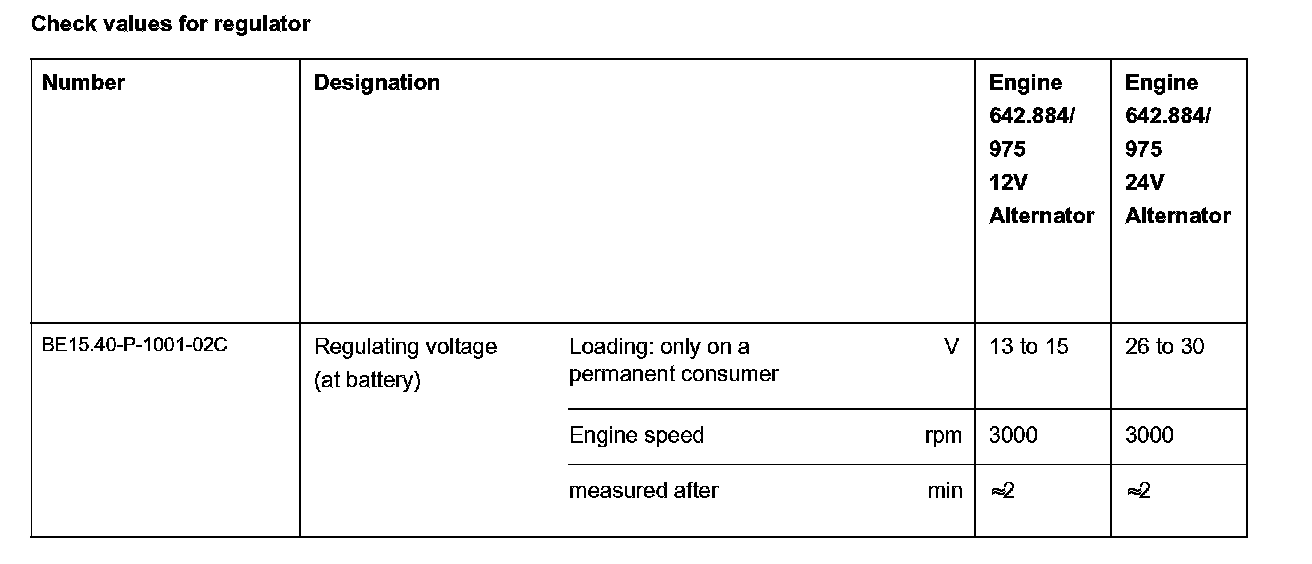

Check values for regulator:

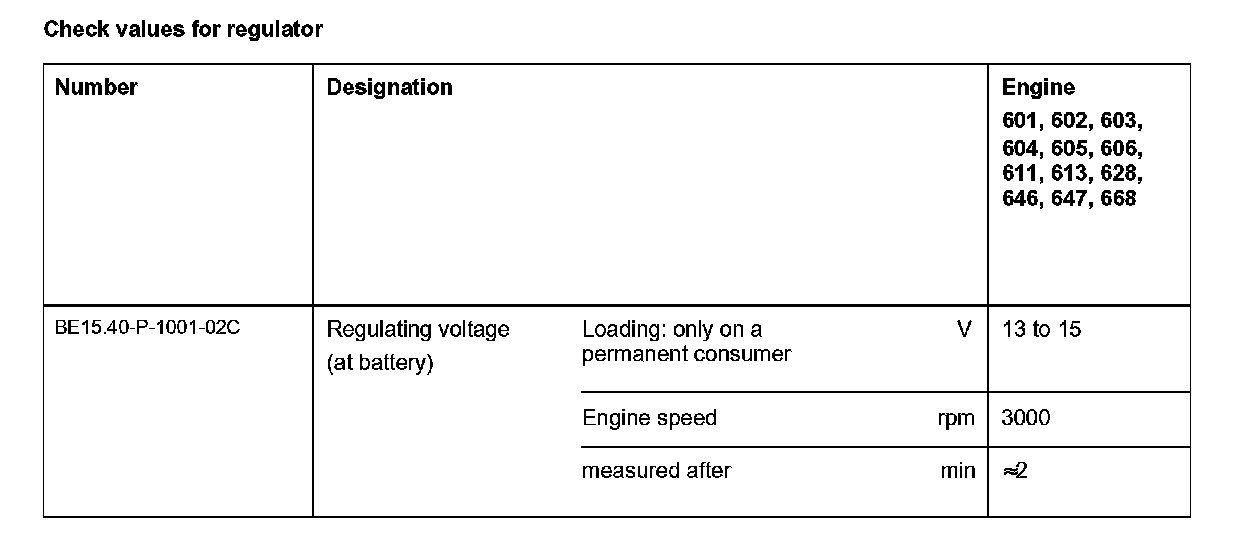

Check values for regulator:
