Clutch Position Sensor: Description and Operation

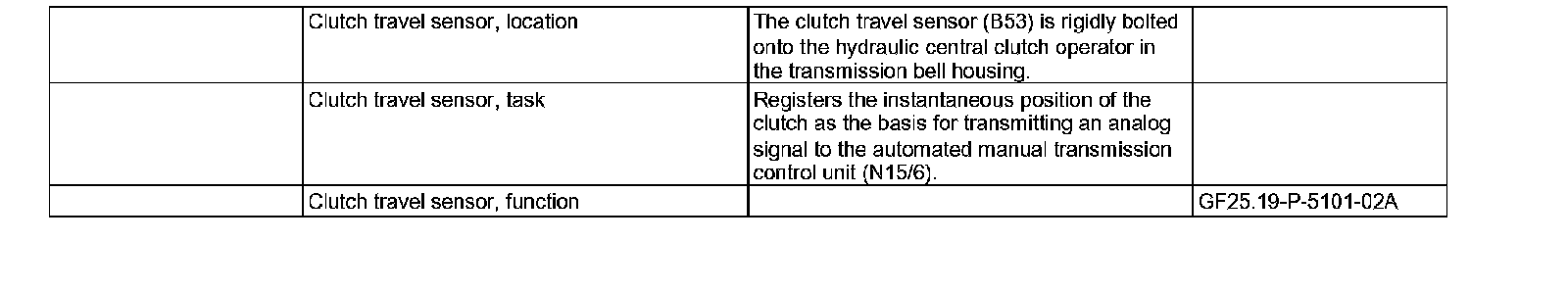

GF25.19-P-5101A Clutch Travel Sensor, Location / Task / Function
- MODEL 203, 230 with TRANSMISSION 716.6 with CODE (424) Sequentronic automated manual transmission (SEQ) up to Model Year 08 /modification year 07
- MODEL 208, 209, 211 with TRANSMISSION 716.6 with CODE (424) Sequentronic automated manual transmission (SEQ)

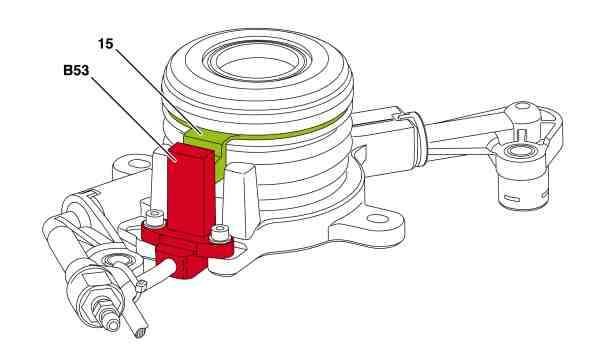

15 Permanent magnet
B53 Clutch travel sensor
