FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2007
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Restraints and Safety Systems
>>
Impact Sensor
>>
Service and Repair
>>

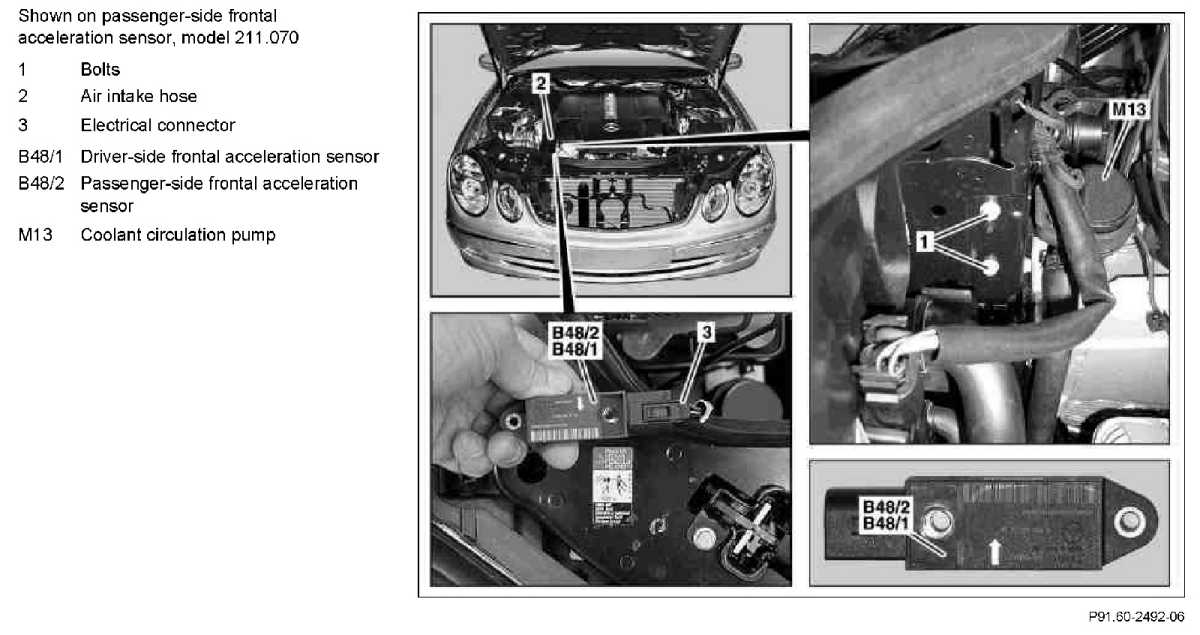

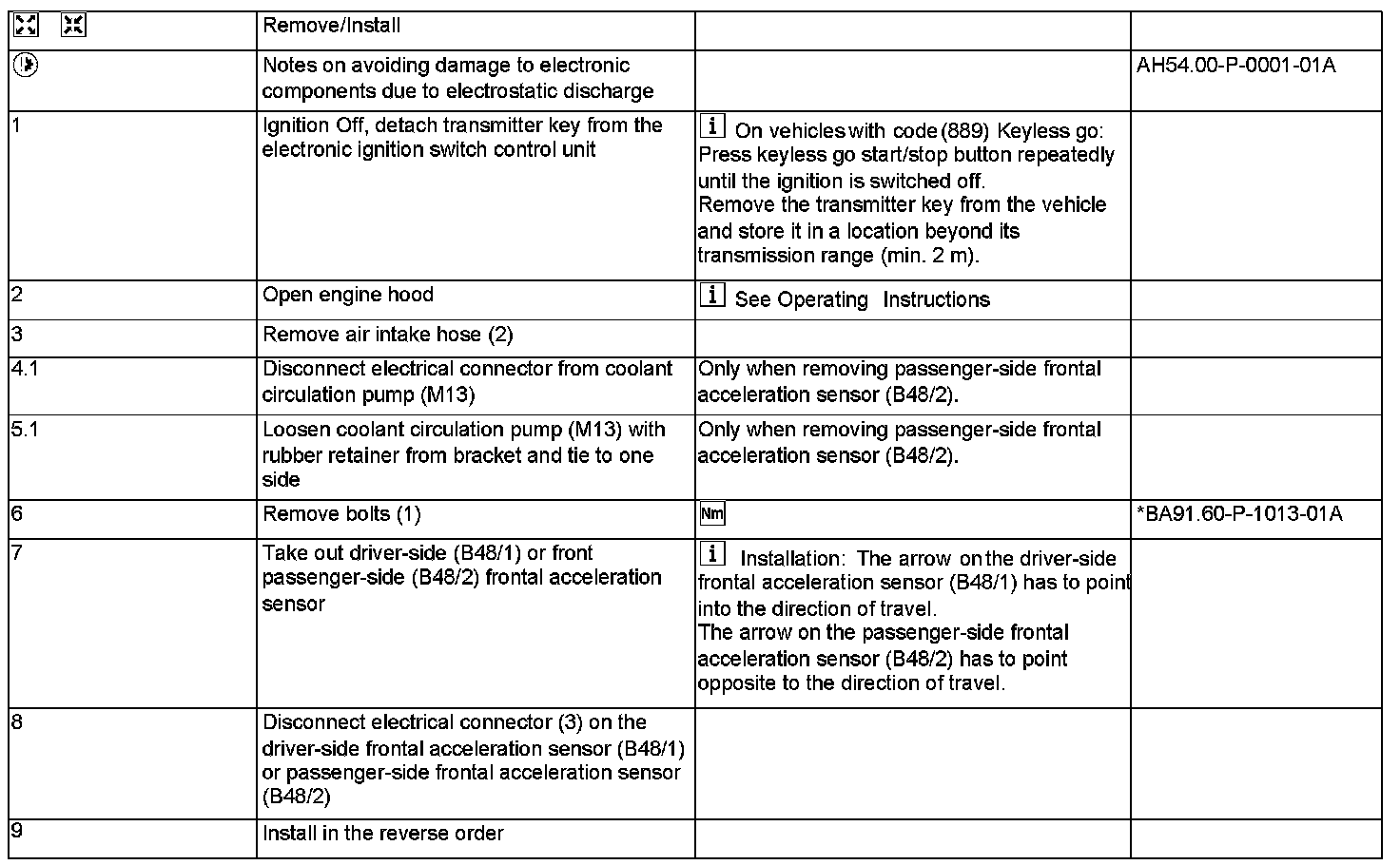

AR91.60-P-0750T Remove/Install Front Acceleration Sensor
AR91.60-P-0750T Remove/Install Front Acceleration Sensor
AR91.60-P-0750T Remove/Install Front
Acceleration Sensor

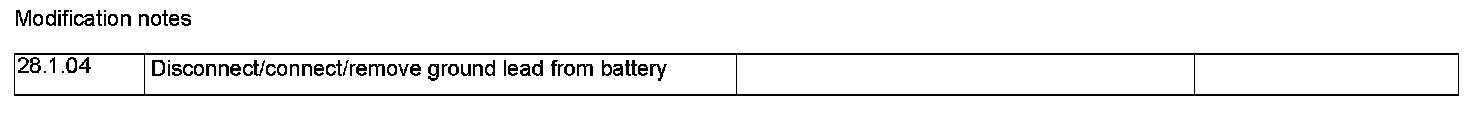

Modification Notes:

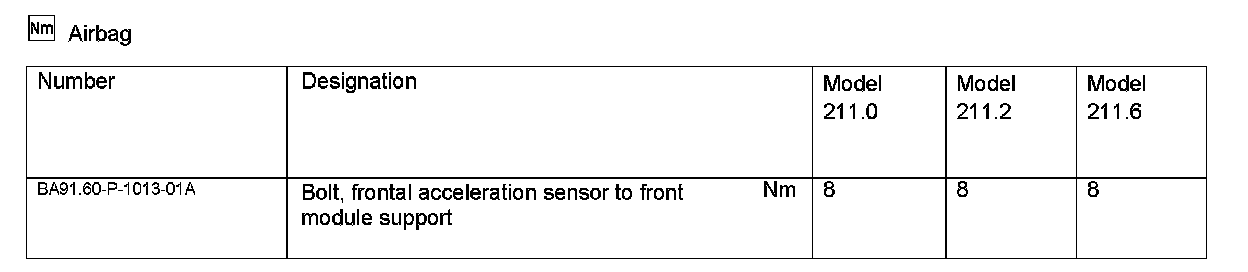

Airbag:
