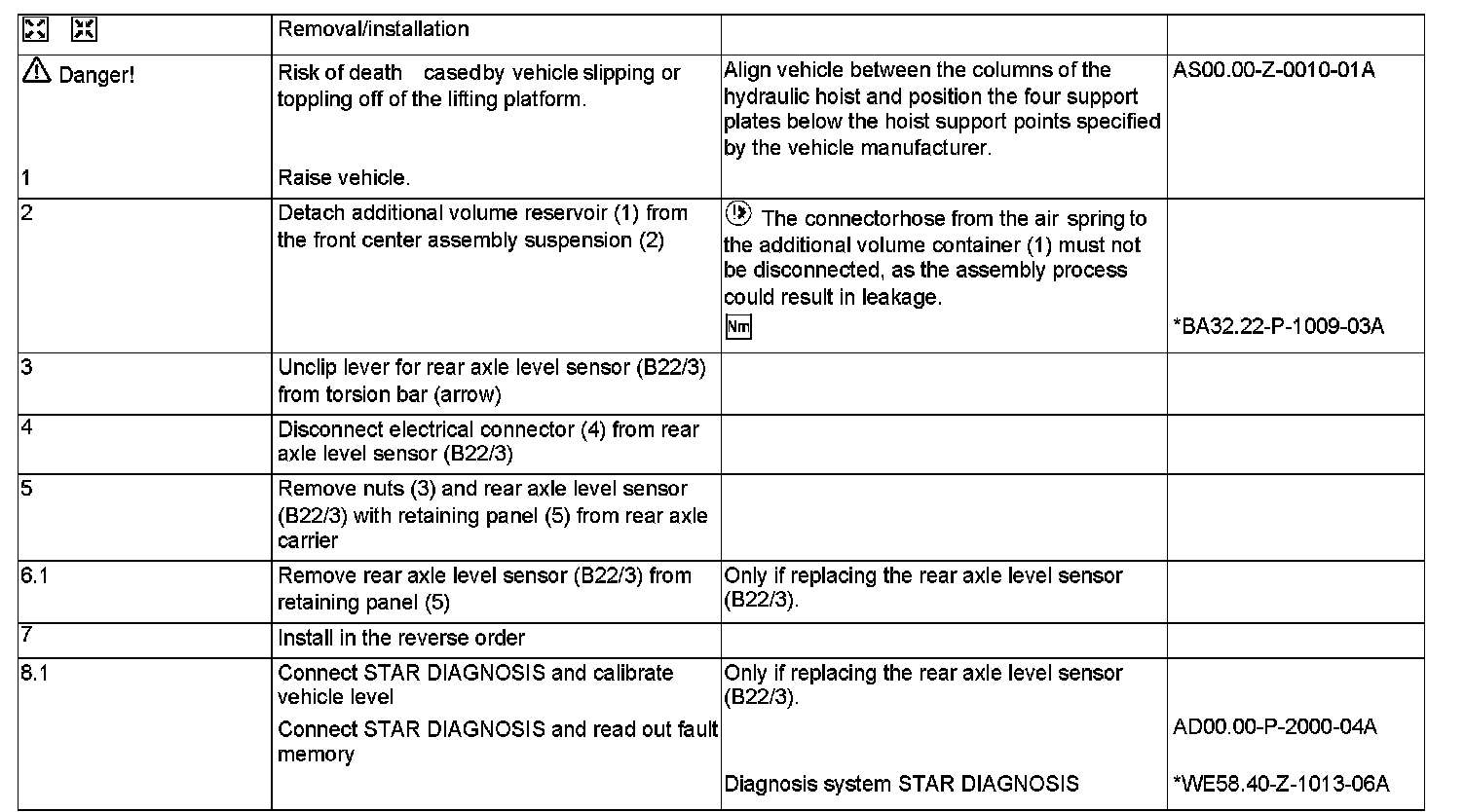

AR82.10-P-0005T Remove/Install Rear Axle Level Sensor



AR82.10-P-0005T Remove/Install Rear Axle Level Sensor
- with CODE (489) Airmatic (semi-active air suspension)

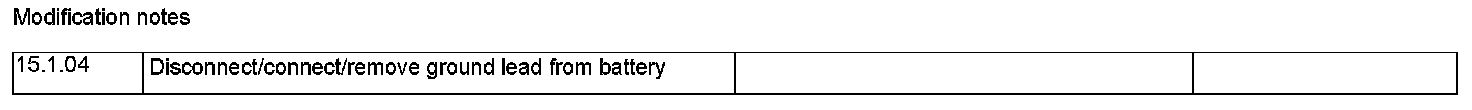

Modification Notes:











Air Suspension:
