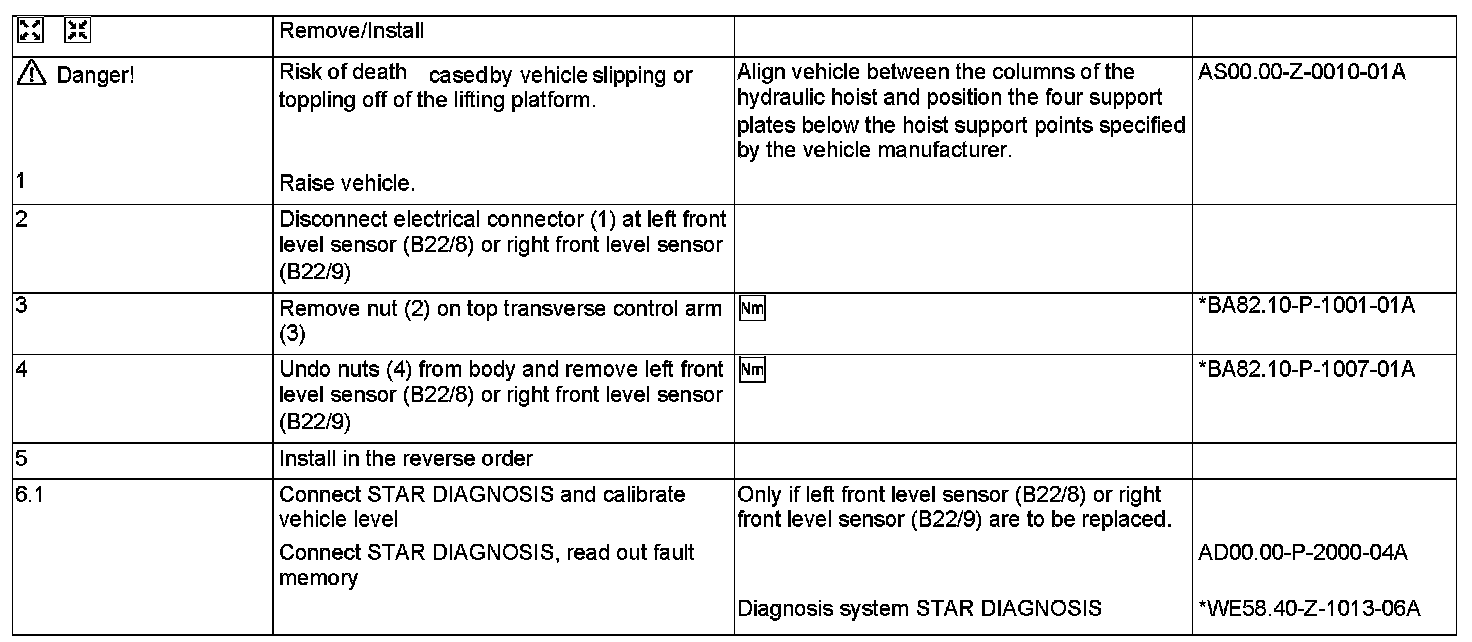

AR82.10-P-0004T Remove/Install Front Axle Level Sensors



AR82.10-P-0004T Remove/Install Front Axle Level Sensors
- with CODE (489a) AIRmatic (semi-active air suspension)

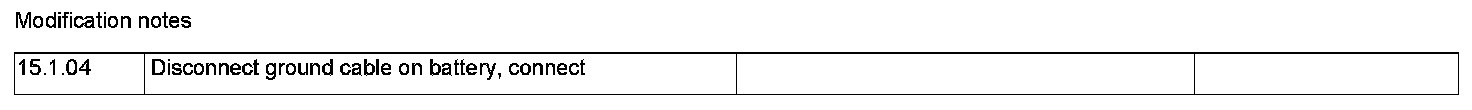

Modification Notes:

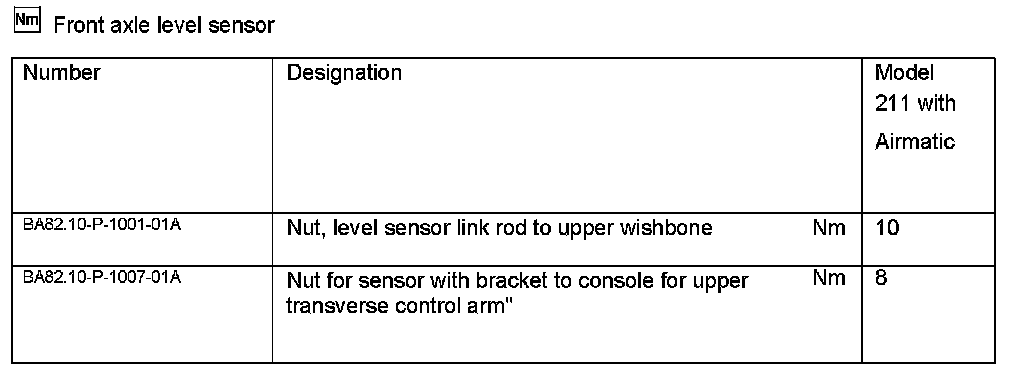

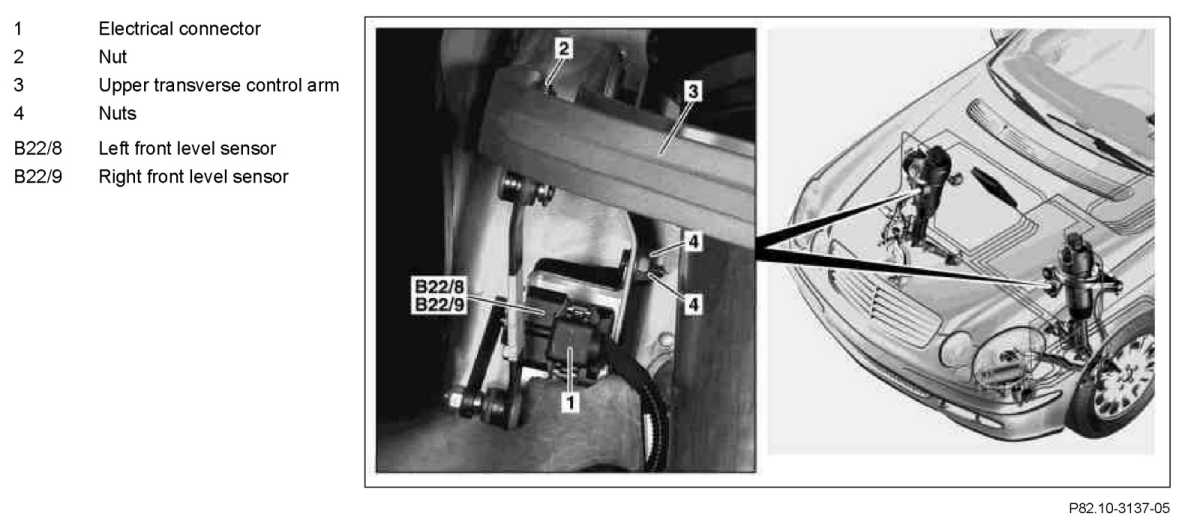

Front Axle Level Sensor:
