E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
Seat Belt Systems: Testing and Inspection
AP91.40-P-9150M Check
Seat Belts
and
Seat Belt Buckles
For External Damage and Operation

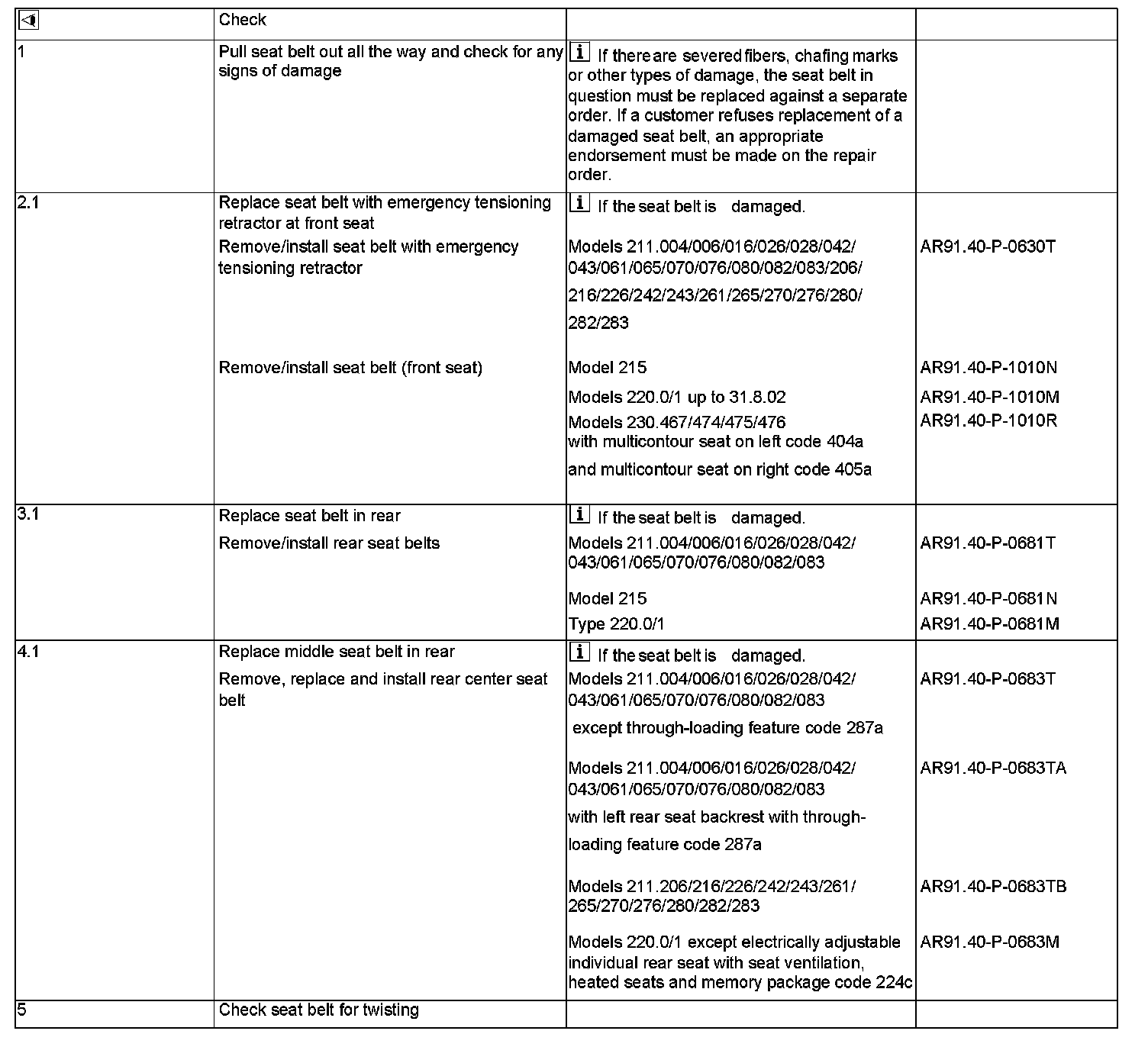

Part 1:

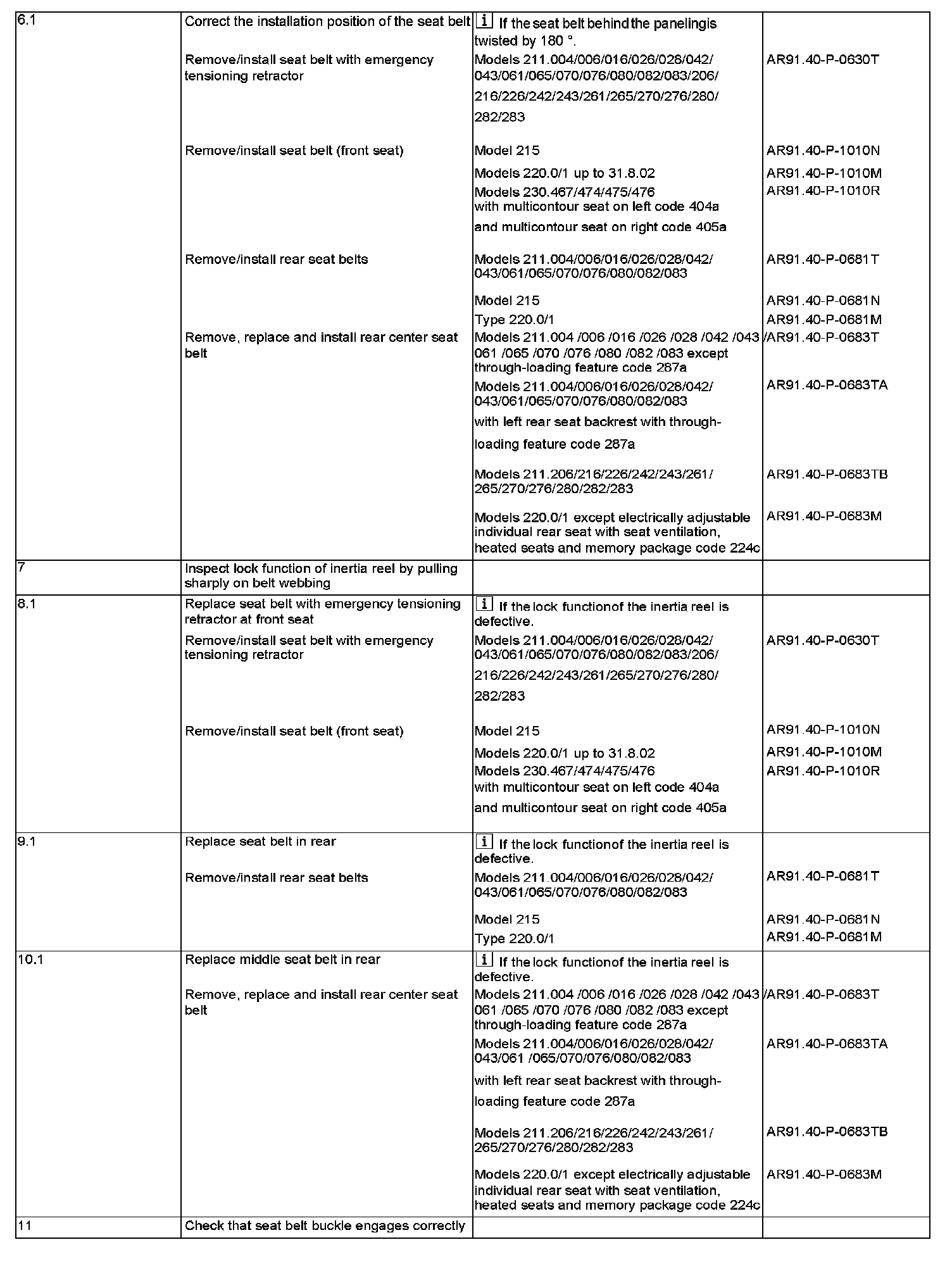

Part 2:

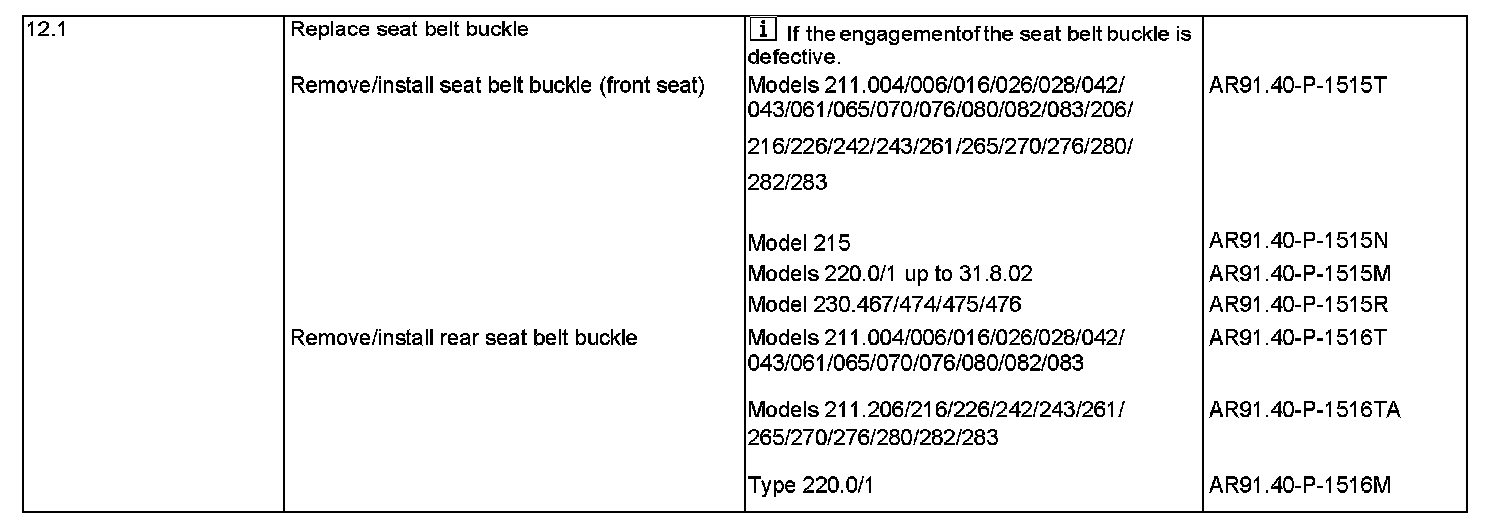

Part 3:
