Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt >> Service and Repair >> AR91.40-P-0683TA Remove/Install Rear Center Seat Belt

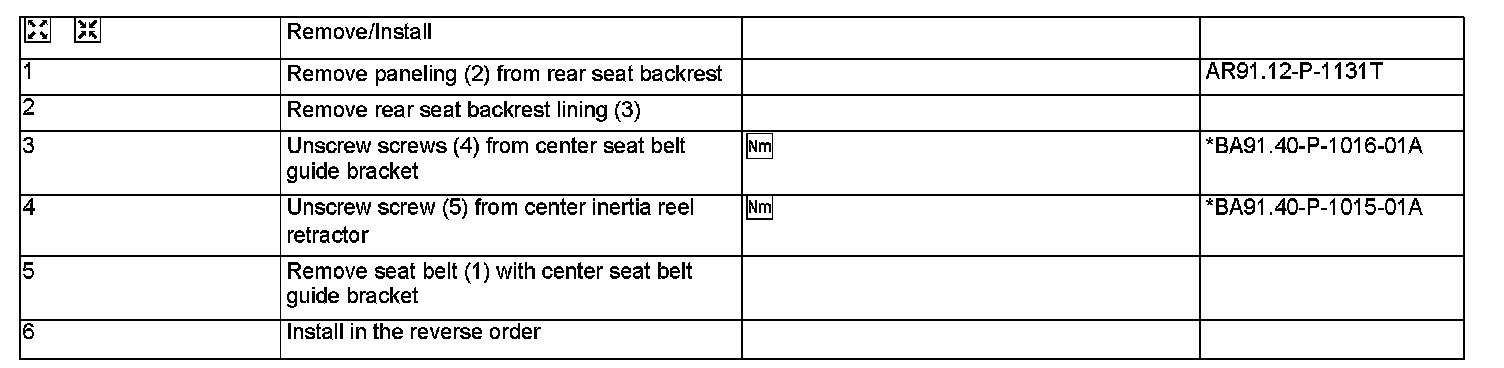

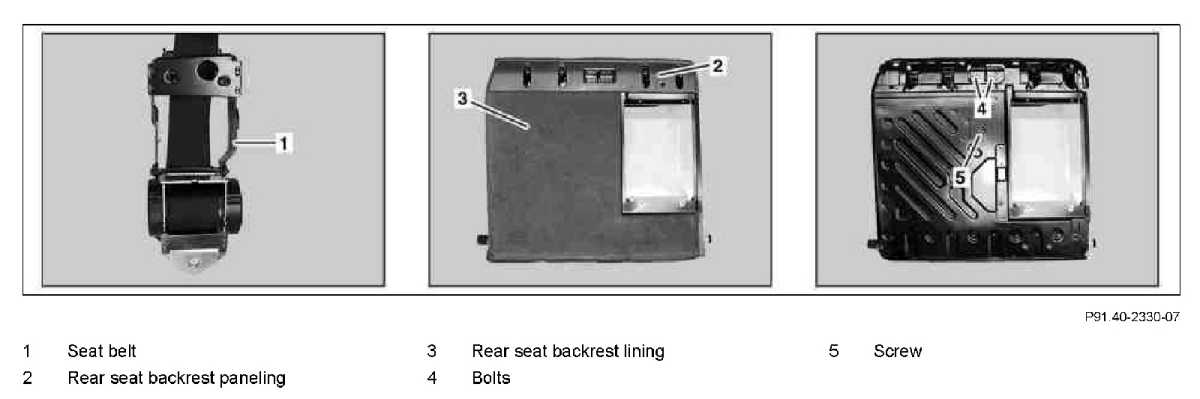

AR91.40-P-0683TA Remove/Install Rear Center Seat Belt



AR91.40-P-0683TA Remove/Install Rear Center Seat Belt
- with CODE (287a) Through-loading feature
- Only with left rear seat backrest

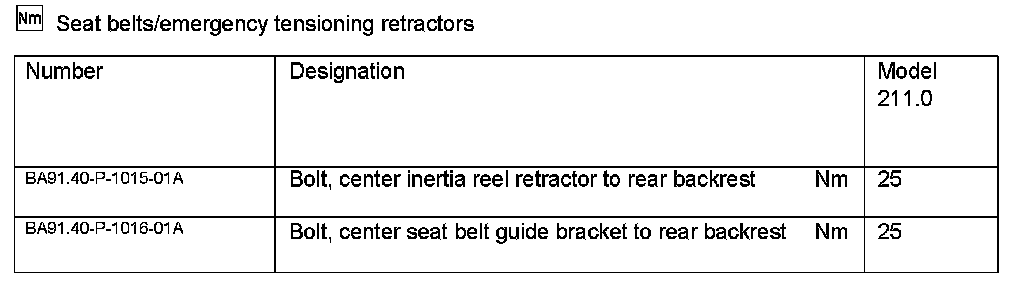

Seat Belts/Emergency Tensioning Retractors


Seat Belts/Emergency Tensioning Retractors:
