AR91.40-P-0681T Remove/Install Rear Seat Belts



AR91.40-P-0681T Remove/Install Rear Seat Belts

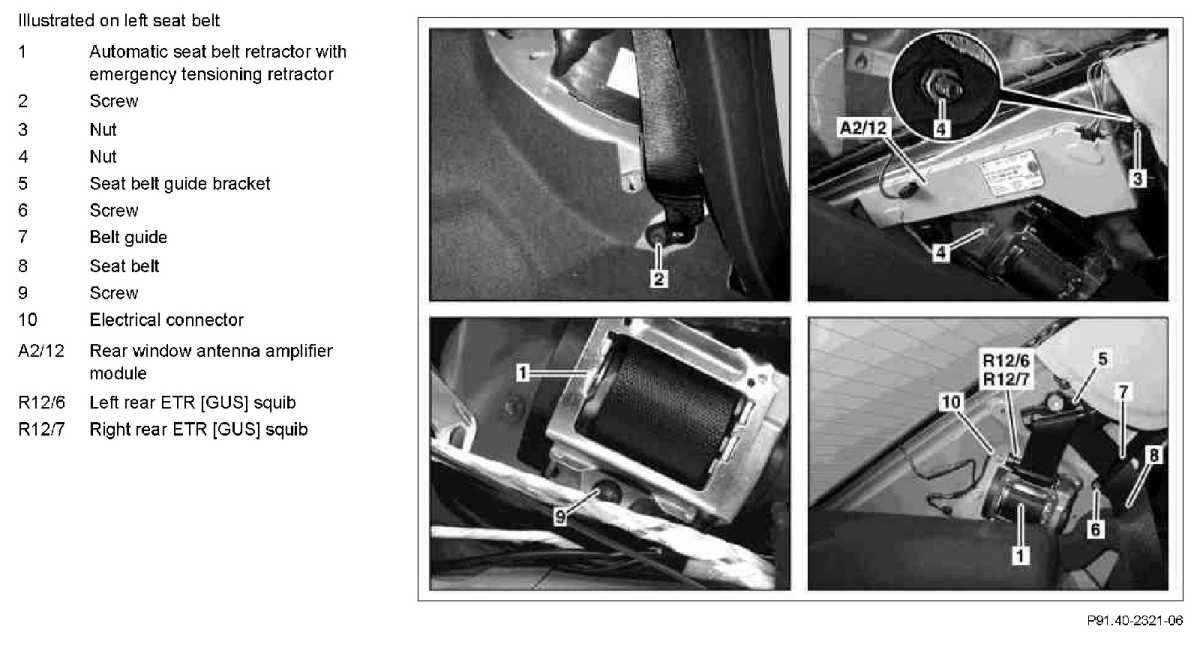

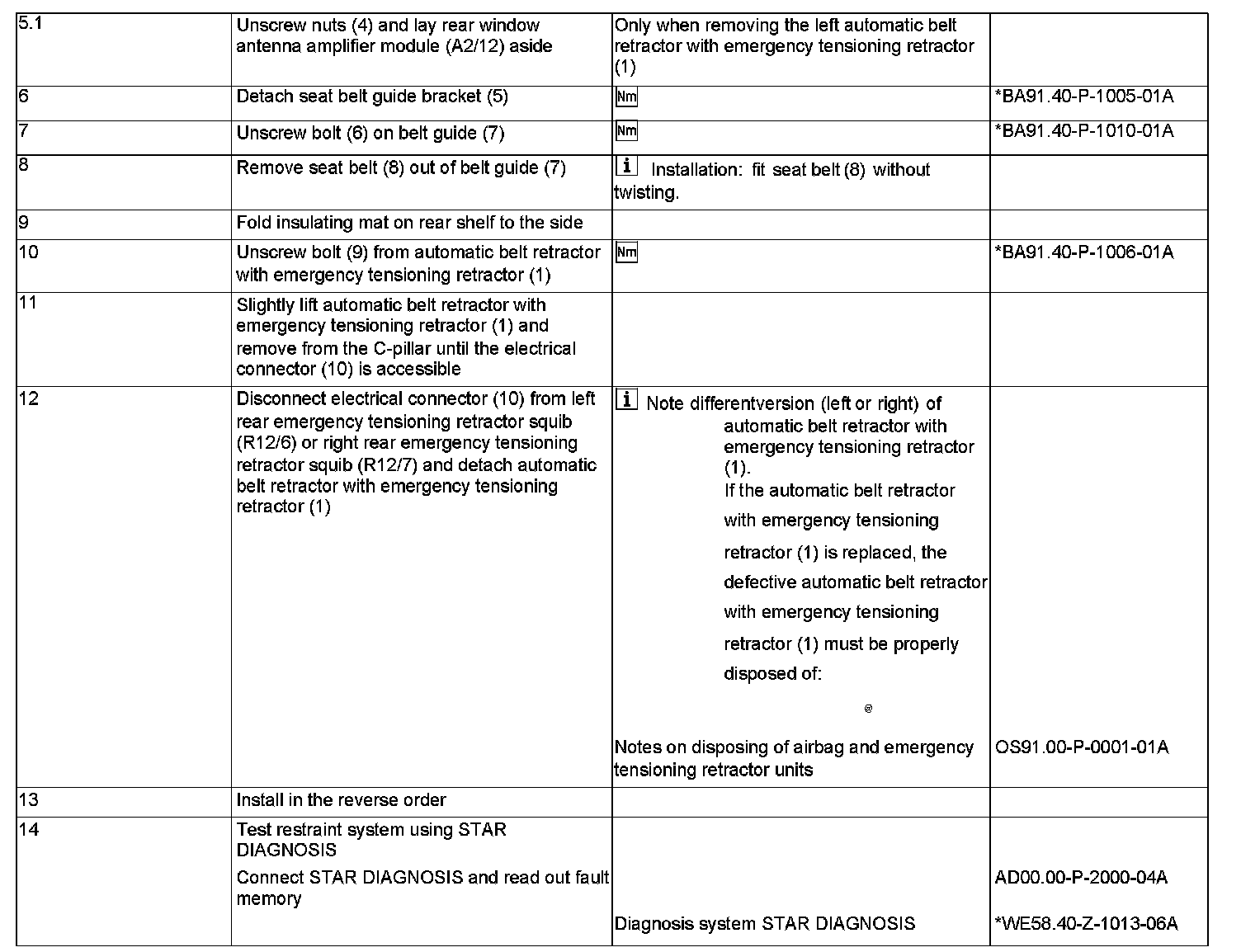

Part 1:




Part 2:

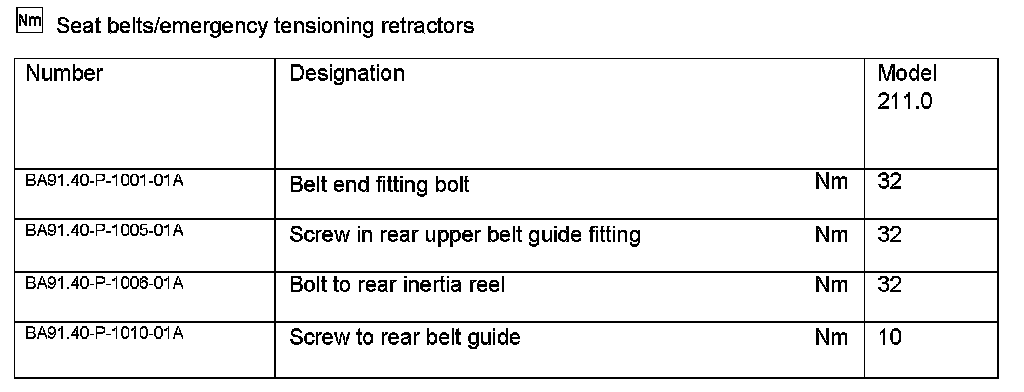

Seat Belts/Emergency Tensioning Retractors


Seat Belts/Emergency Tensioning Retractors:
