Seat Occupant Classification Module - Air Bag: Service and Repair



AR91.60-P-0800T Removing and Installing the WSS Control Unit
- Front passenger seat

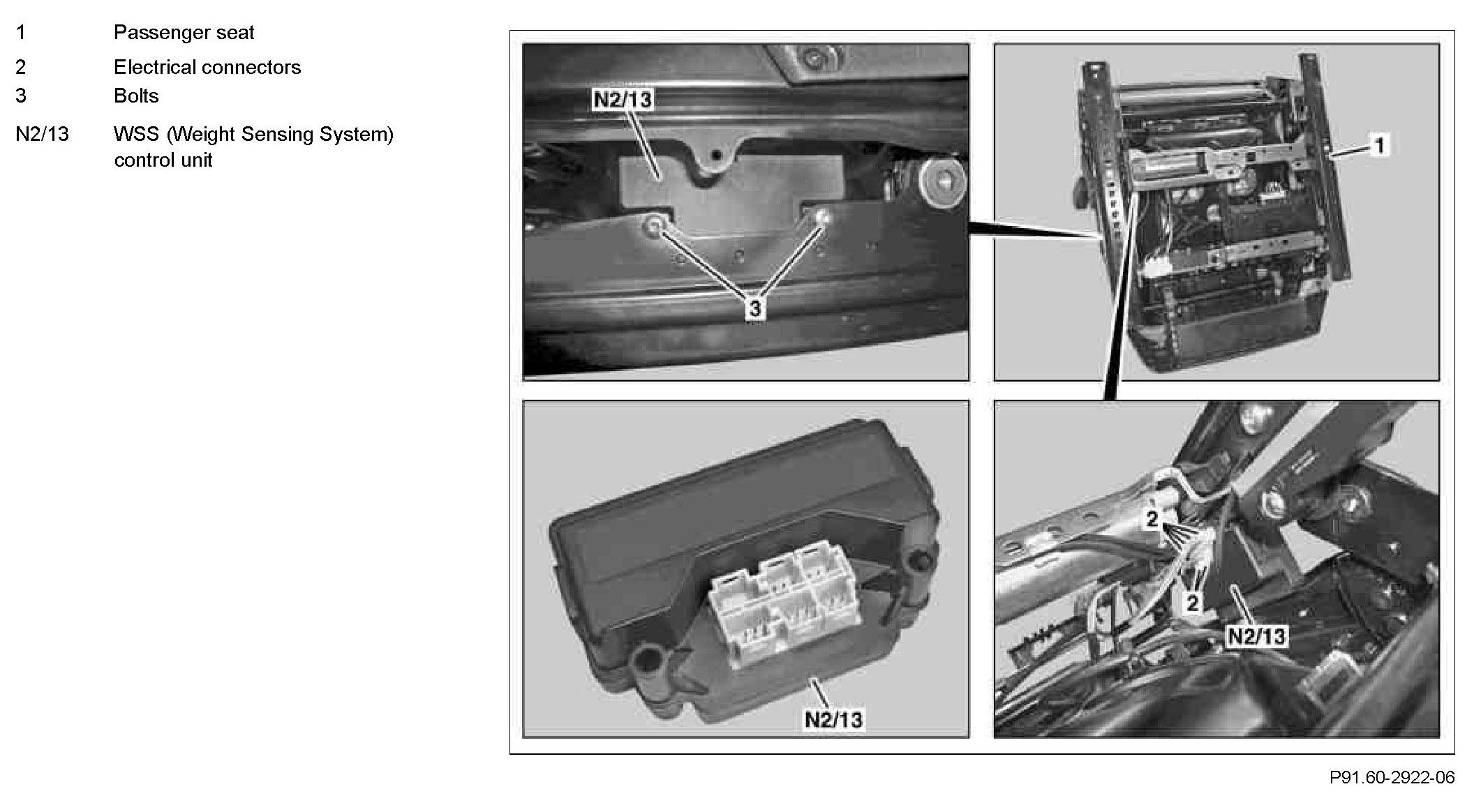

Component Identification:

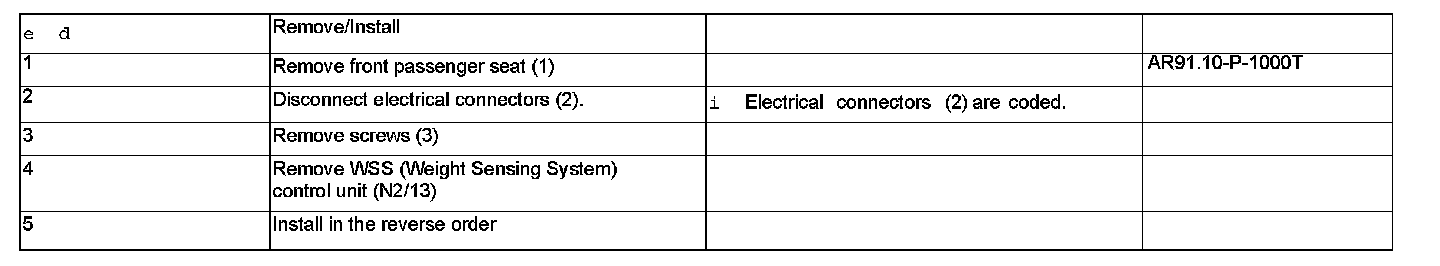

Step 1 - 5:
