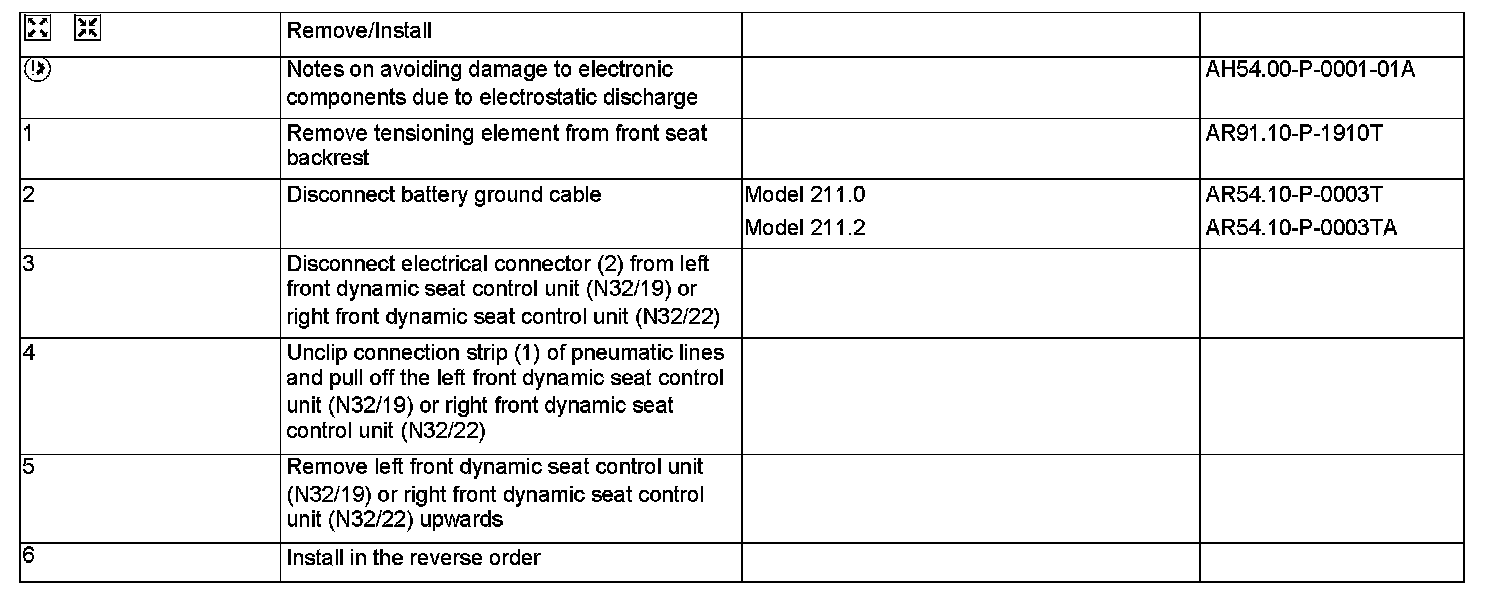

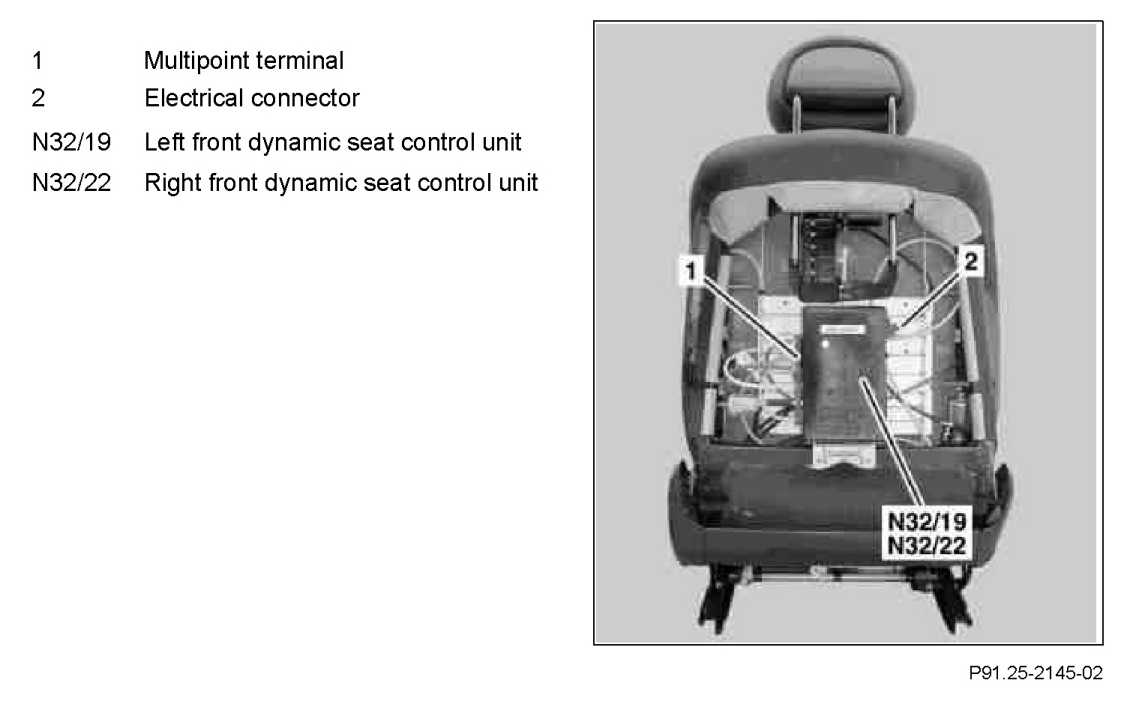

AR91.25-P-1800T Remove/Install Dynamic Seat Control Unit



AR91.25-P-1800T Remove/Install Dynamic Seat Control Unit
- with CODE (433) Left dynamic seat, incl. multicontour seat
- with CODE (434) Right dynamic seat, incl. multicontour seat
