AR72.29-P-1100T Remove/Install Rear Door Control Module

AR72.29-P-1100T Remove/Install Rear Door Control Module

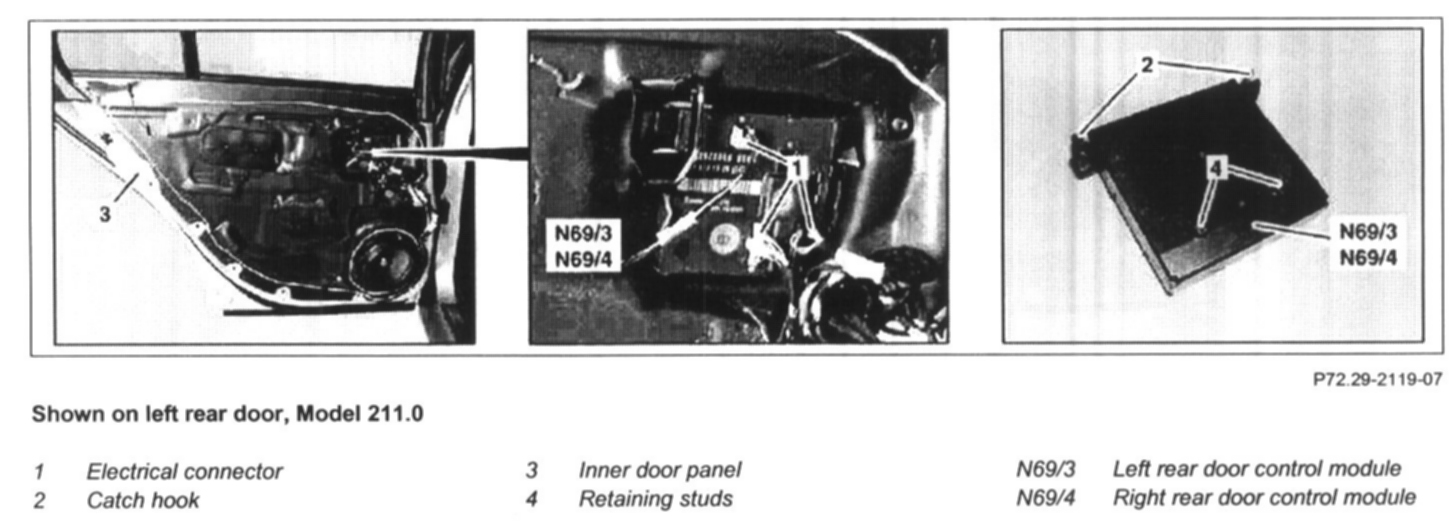

Shown On Left Rear Door, Model 211.0:

1 Remove door lining on rear door
2 Disconnect electrical connectors (1).
3 Unclip left rear door control module (N69/3) or right rear door control module (N69/4) at the catch hooks (2) from the inner door panel (3)

NOTE
- Press together catch hooks with suitable pliers.
- Installation: Ensure that holding lugs (4) are correctly seated in inner door panel.

4 Install in the reverse order
