AR54.65-P-0006TY Remove/Install Parktronic System (PTS) Control Unit



AR54.65-P-0006TY Remove/install Parktronic System (PTS) Control Unit
- with CODE (220) Parktronic system (PTS)

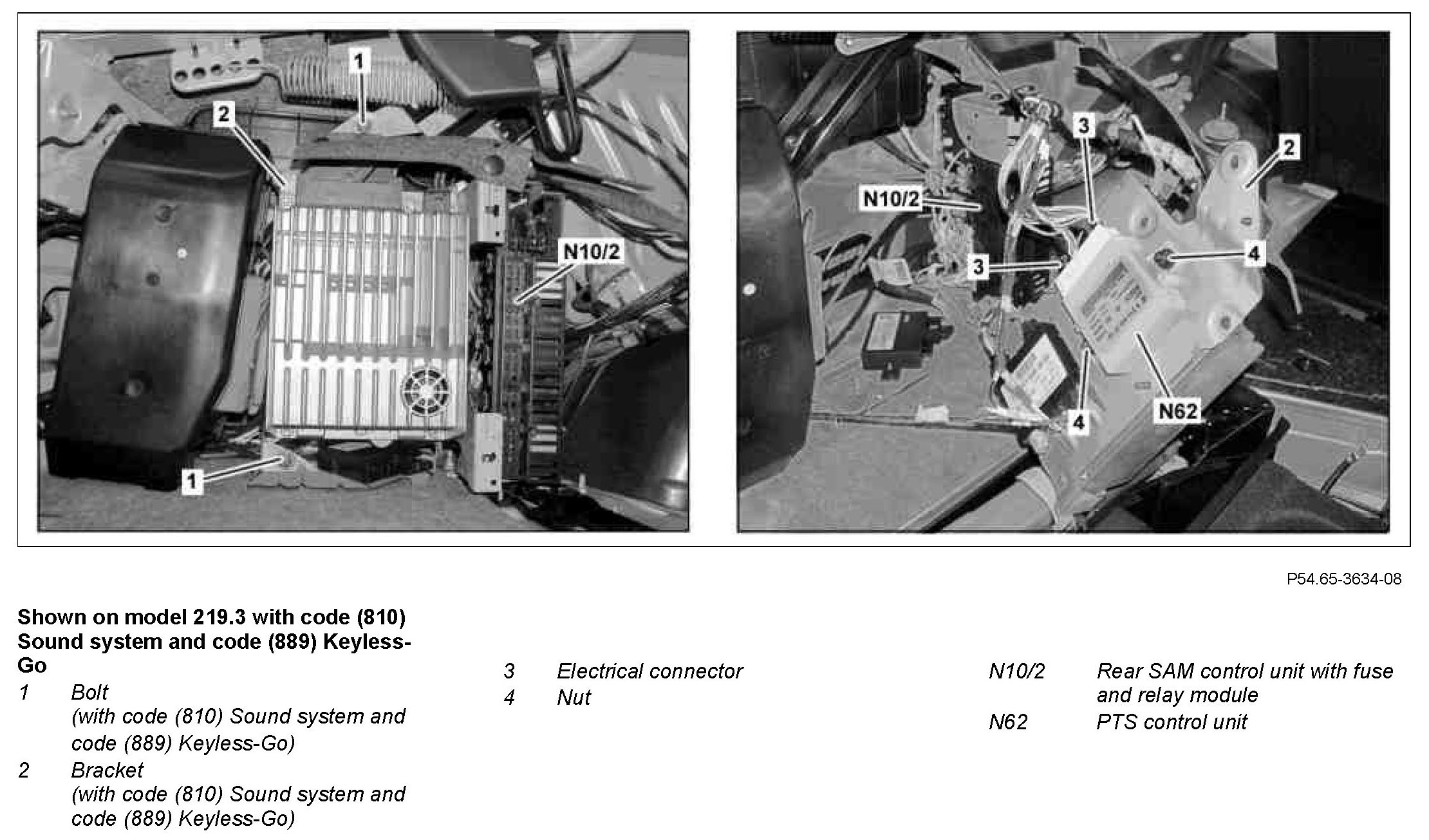

Component Identification:

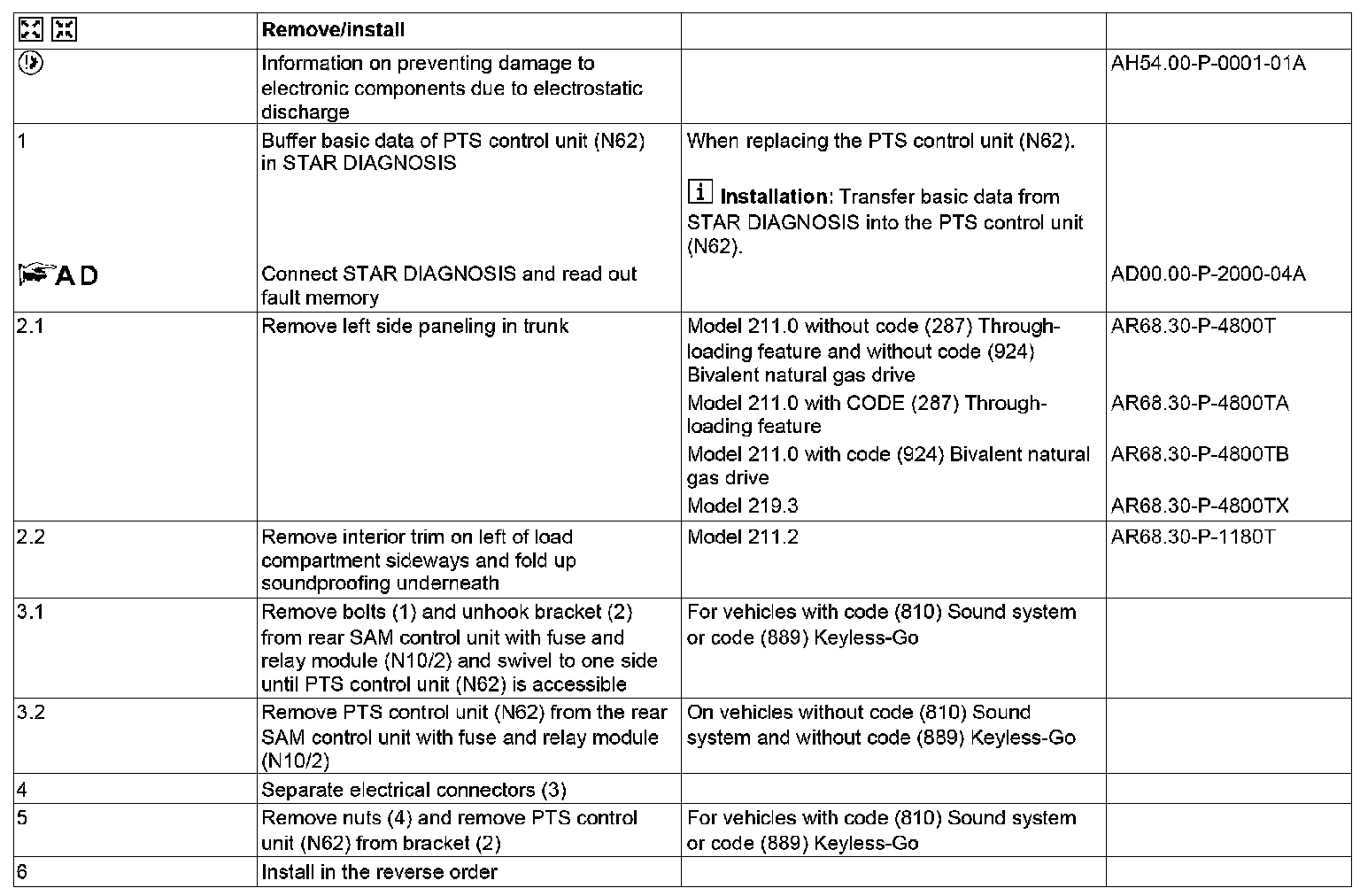

Steps 1-6:
