Global Positioning System Module: Service and Repair

AZ54.61-P-0001-03T Retrofitting Control Module For Electronic Vehicle Log

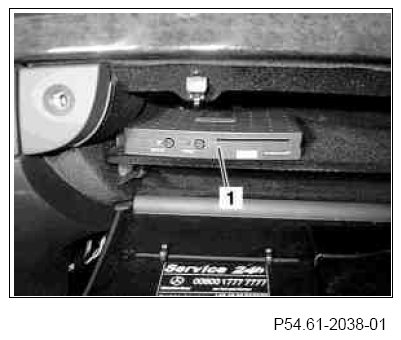

- Installation location in glove compartment






1 Place the control module of the electronic vehicle log (1) in the left lower corner of the glove compartment and fasten with double-sided adhesive tape (included in the kit).
2 Connect the connection line and GPS line.
