Variable Induction Control Actuator: Service and Repair



AR09.20-P-1314TI Removing/Installing The Inlet Port Shutoff

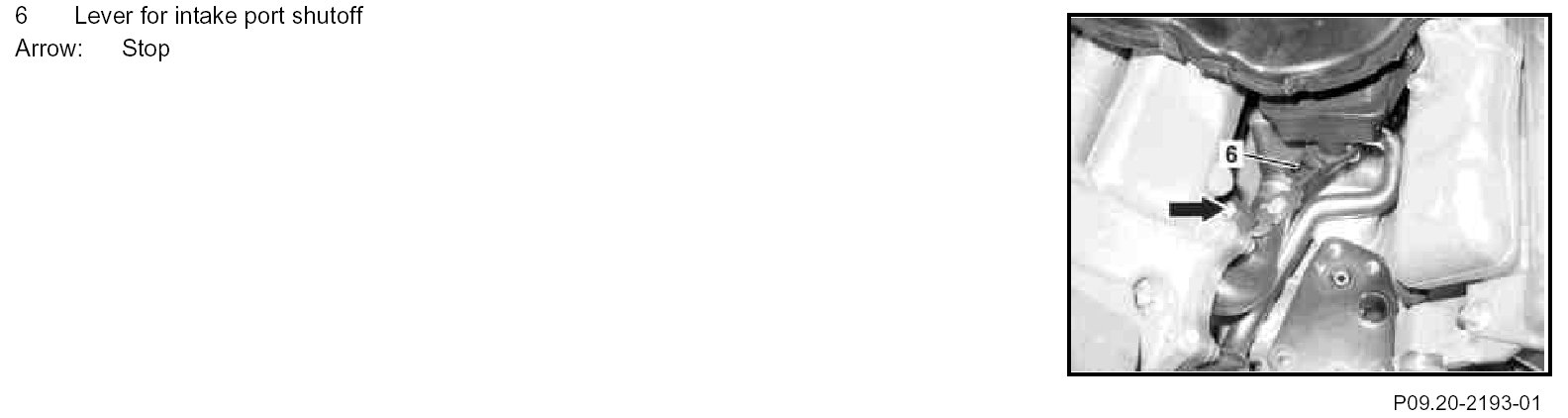

Component Identification:

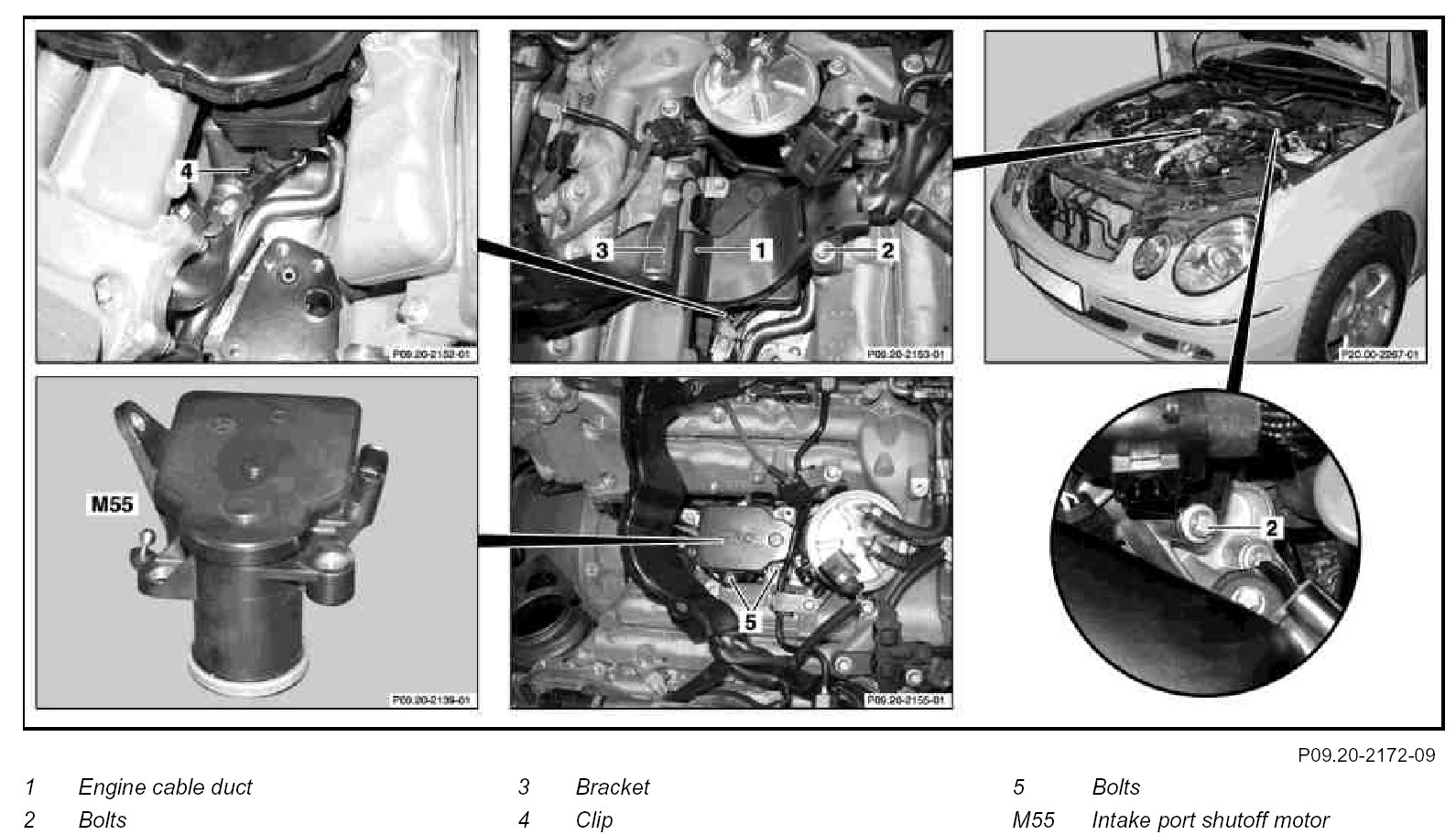

Component Identification:

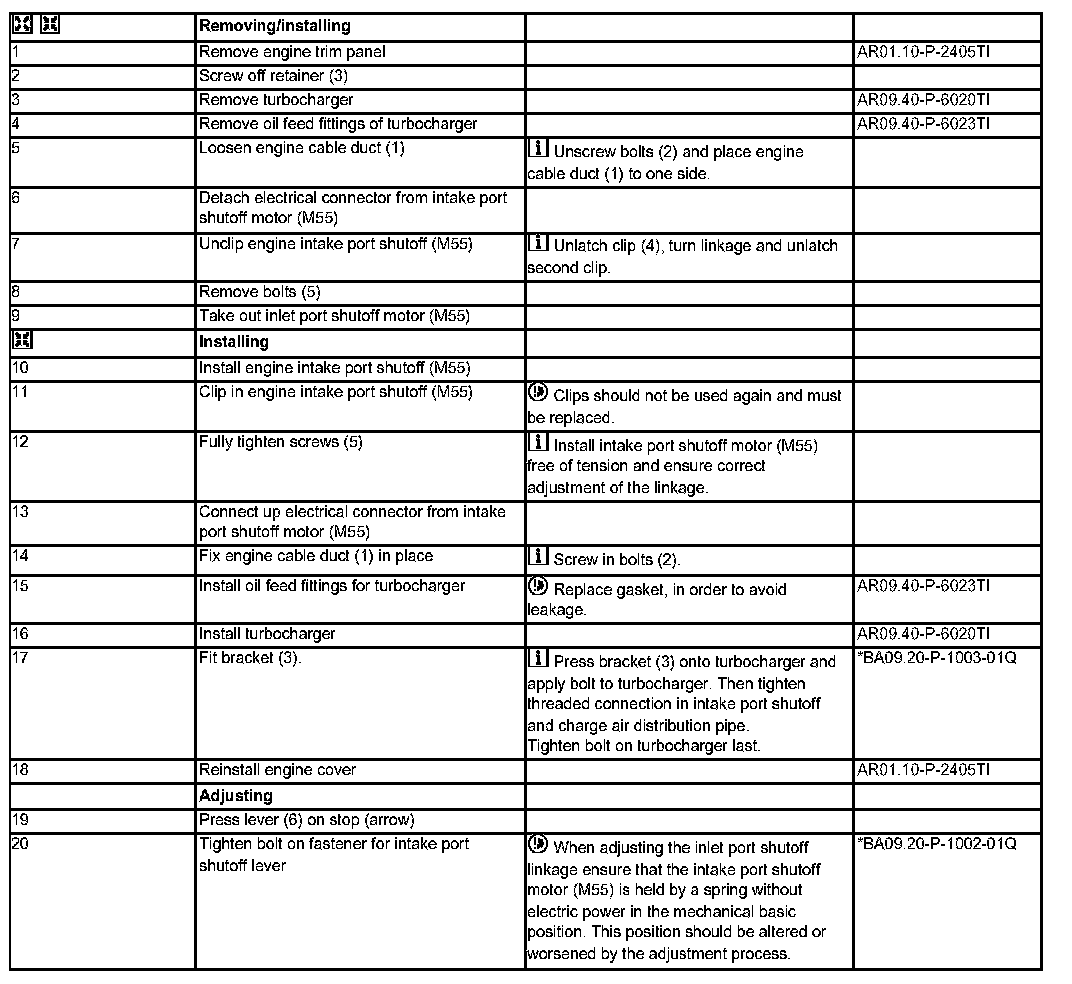

Steps 1 - 20:

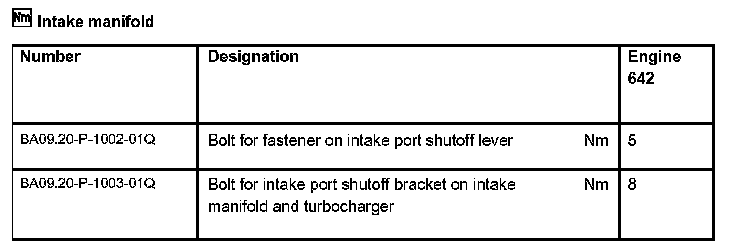

Intake Manifold:
