Throttle Body: Service and Repair
AR09.20-P-1320TI Remove/Install Mixing Chamber

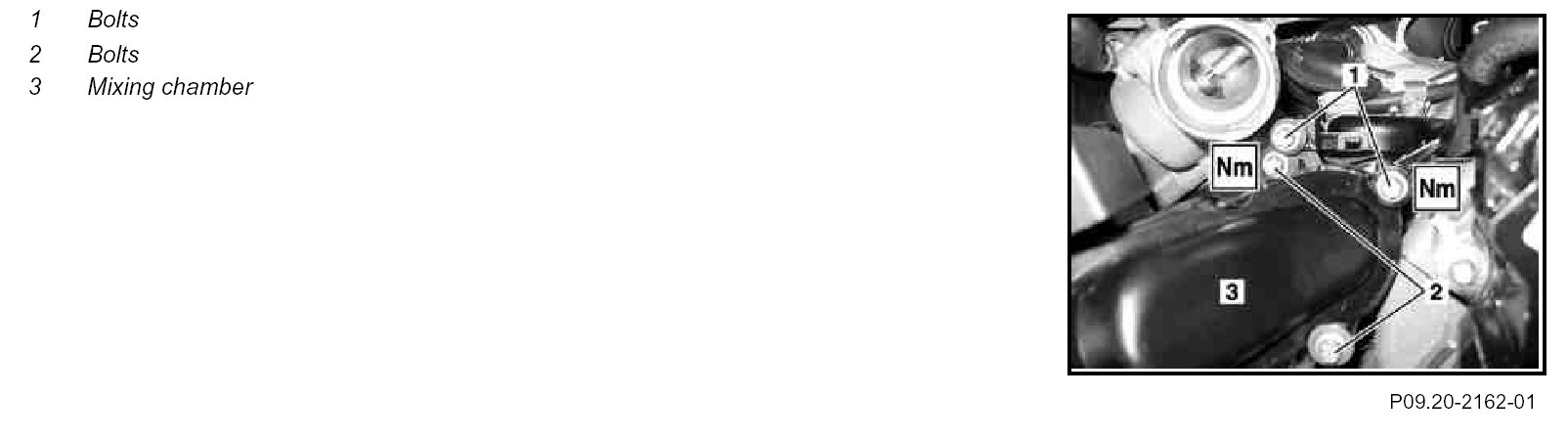

Component Identification:

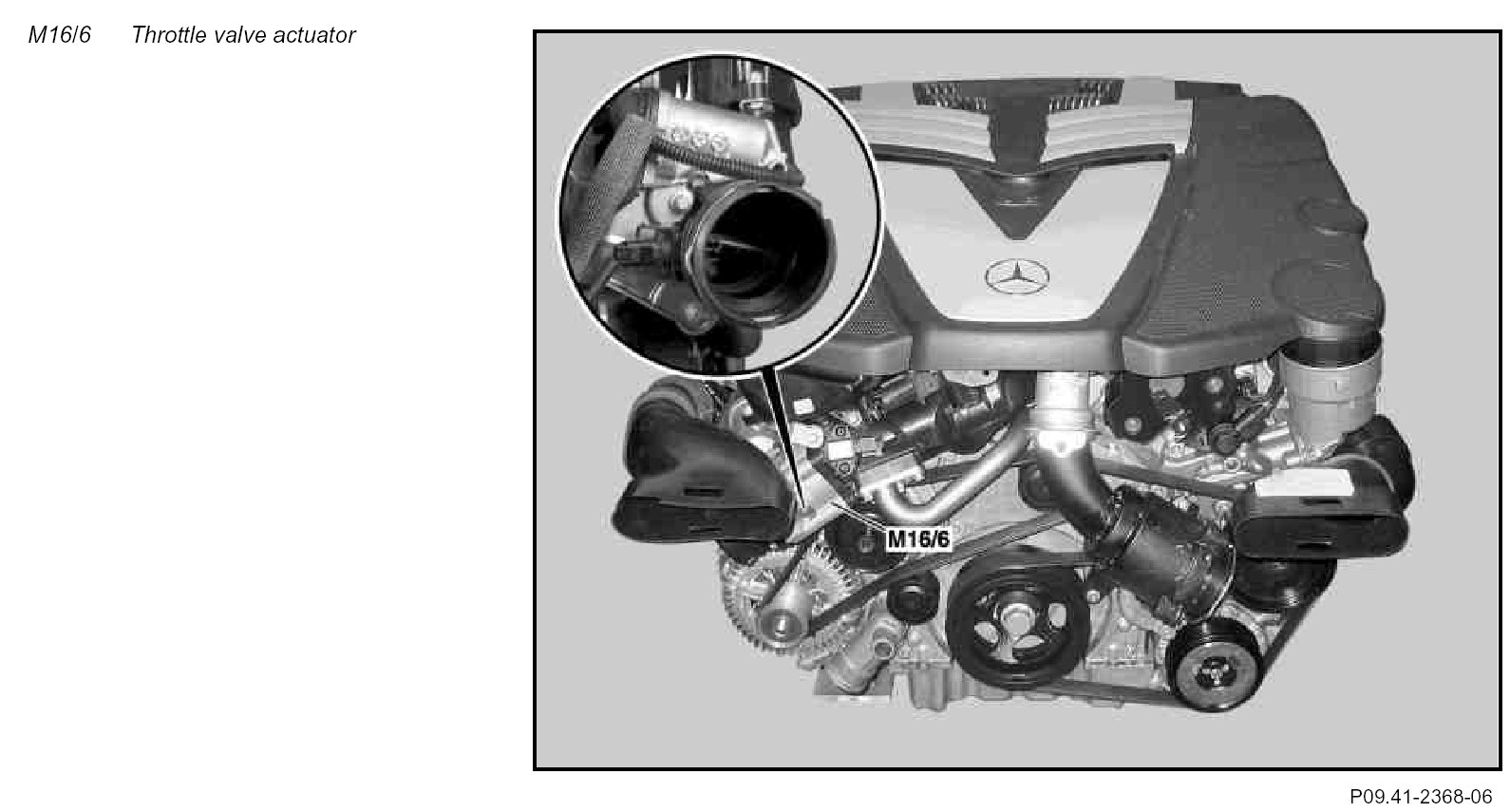

Component Identification:

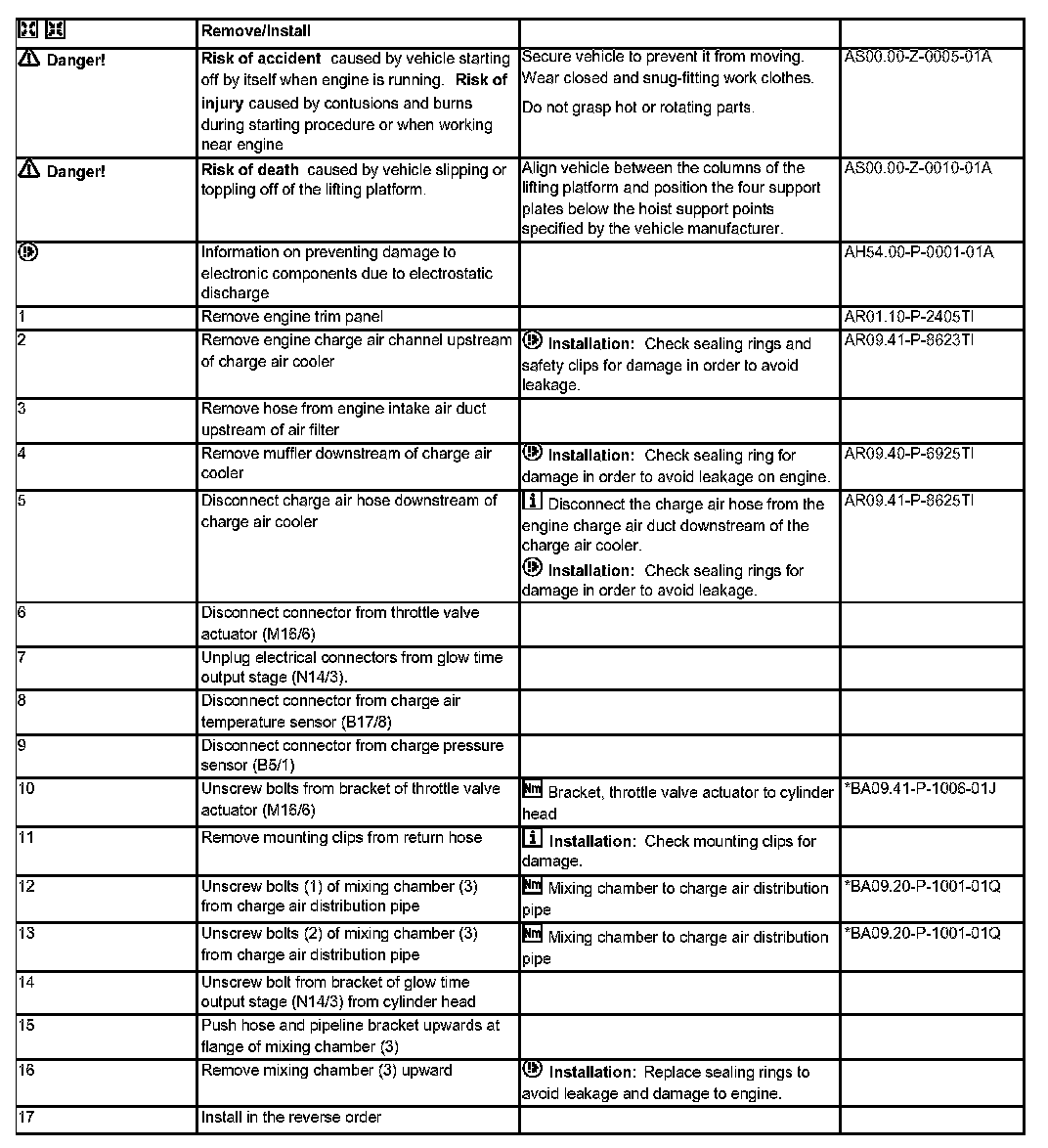

Steps 1 - 17:

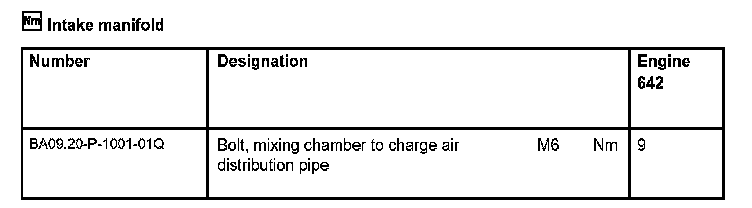

Intake Manifold:

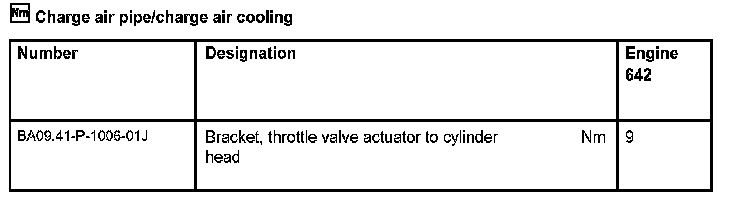

Charge Air Pipe/Charge Air Cooling:
