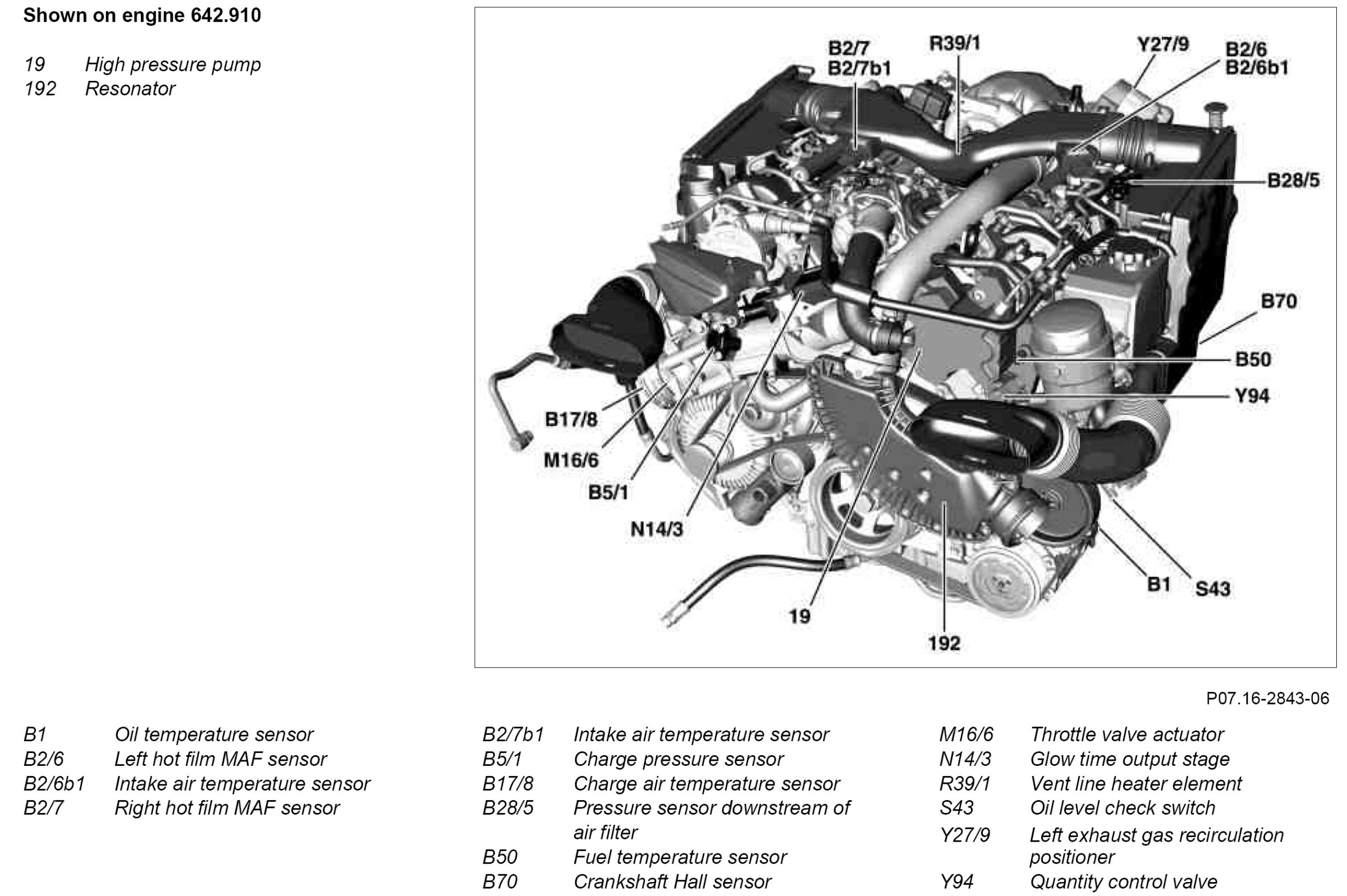

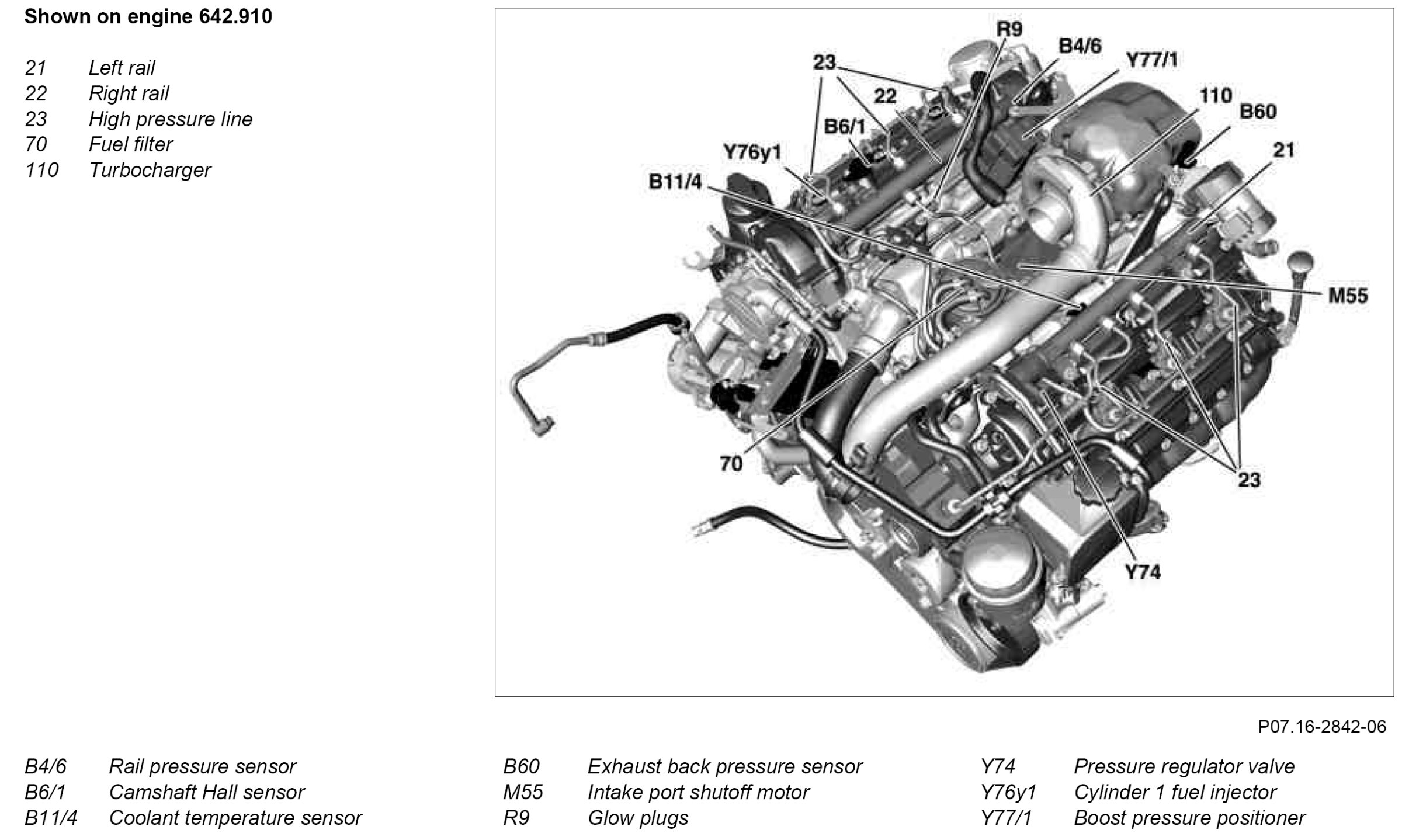

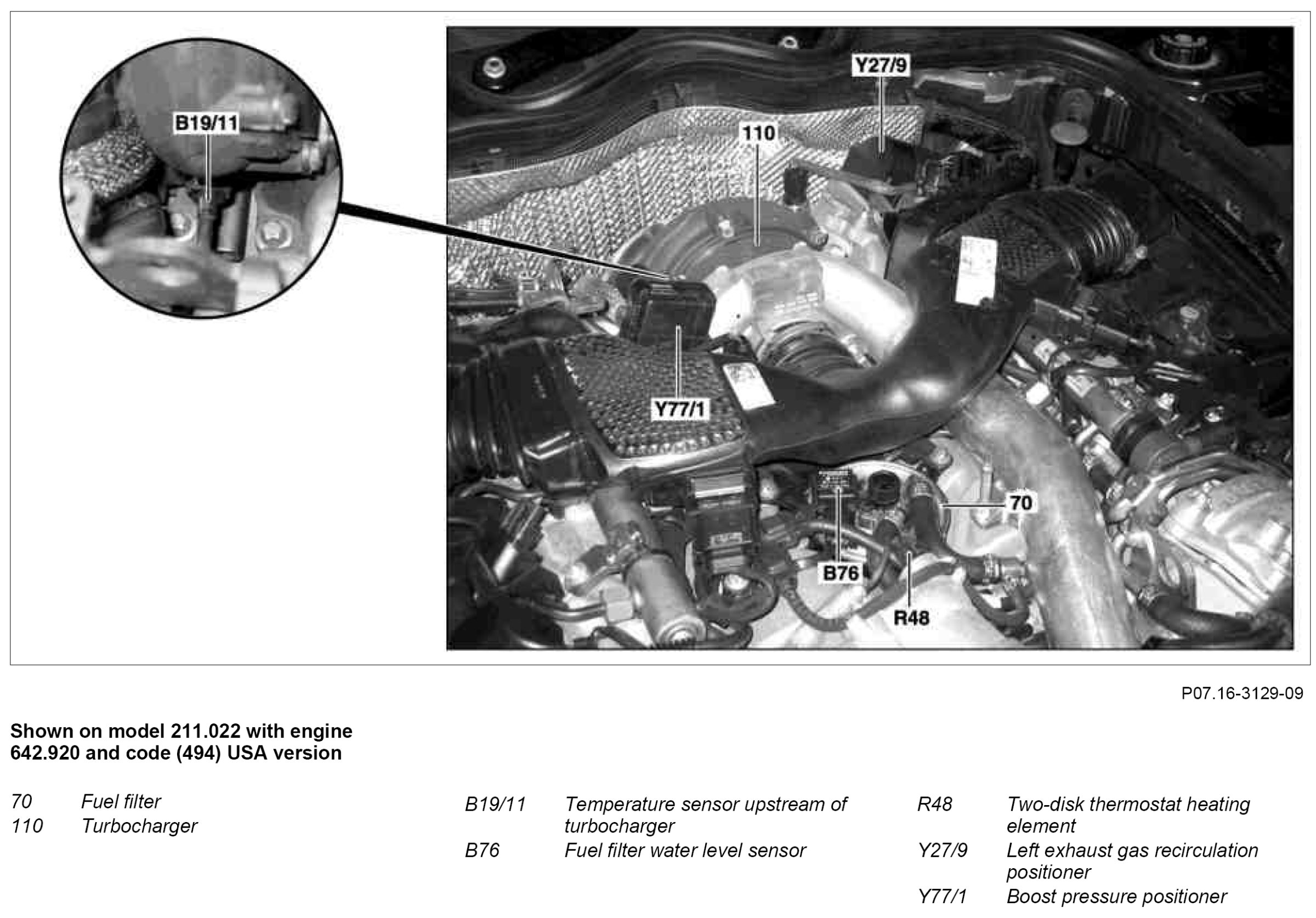

GF07.16-P-0001-01PM Common Rail Diesel Injection (CDI), Arrangement of Components
GF07.16-P-0001-01PM Common Rail Diesel Injection (CDI), Arrangement of Components
GF07.16-P-0001-01PM Common Rail Diesel Injection (CDI), Arrangement Of Components
