Procedures



AP47.20-P-0794A Remove Water From Fuel System Water Separator
- with CODE (U41) Fuel/water separator and lubrication package

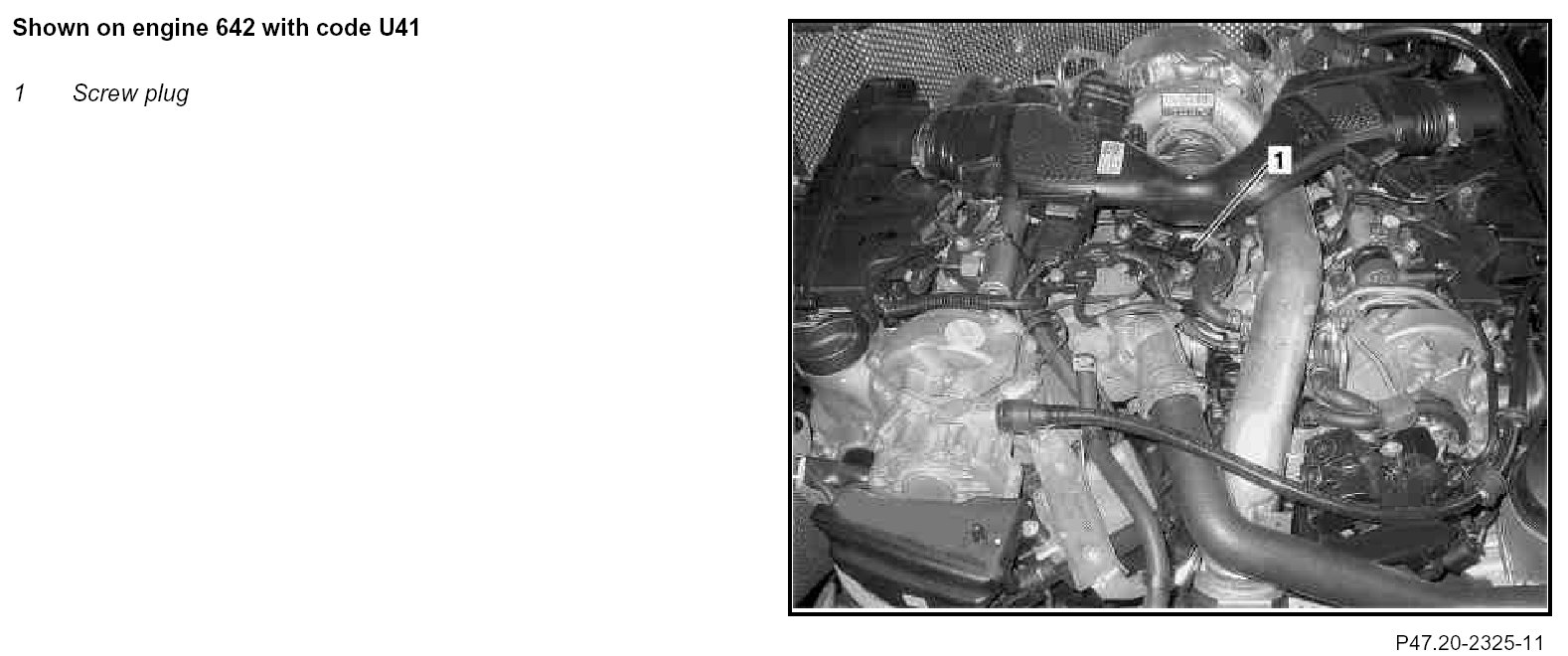

Component Identification:

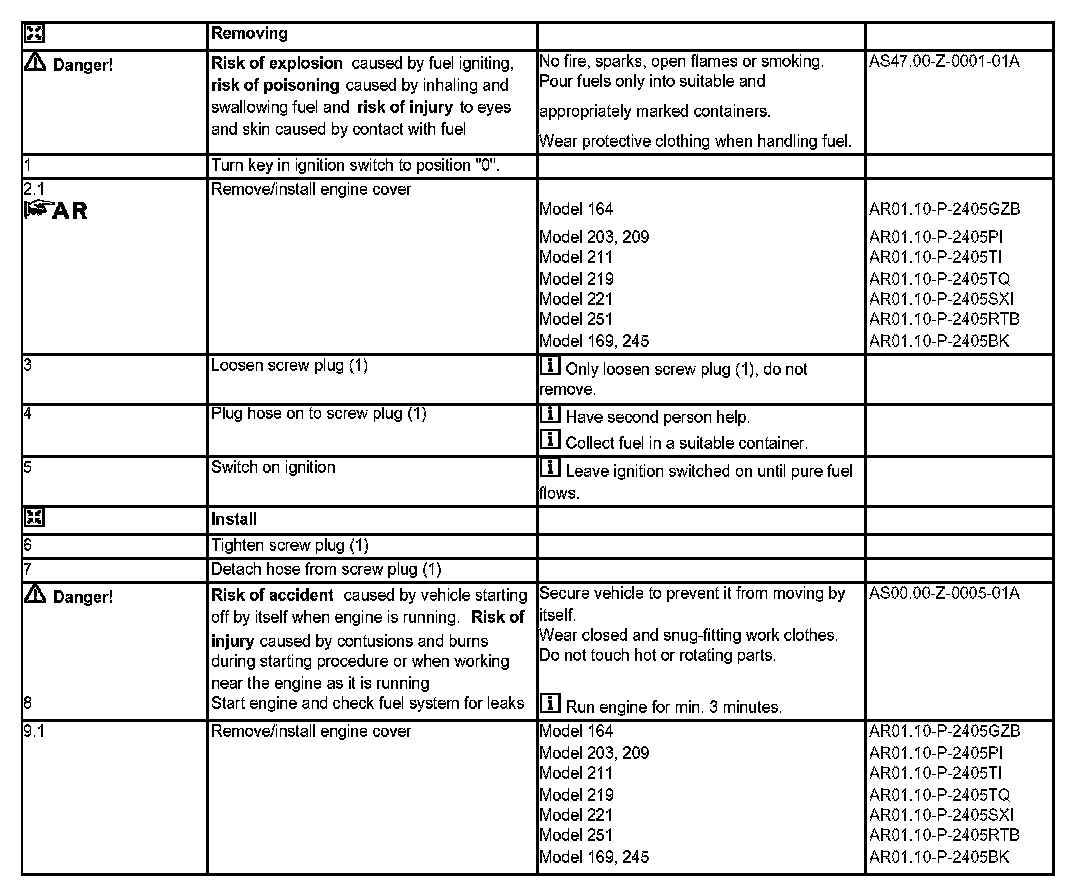

Steps 1 - 9.1:
