AR47.10-P-4001T Empty/Fill Fuel Tank



AR47.10-P-4001T Empty/Fill Fuel Tank

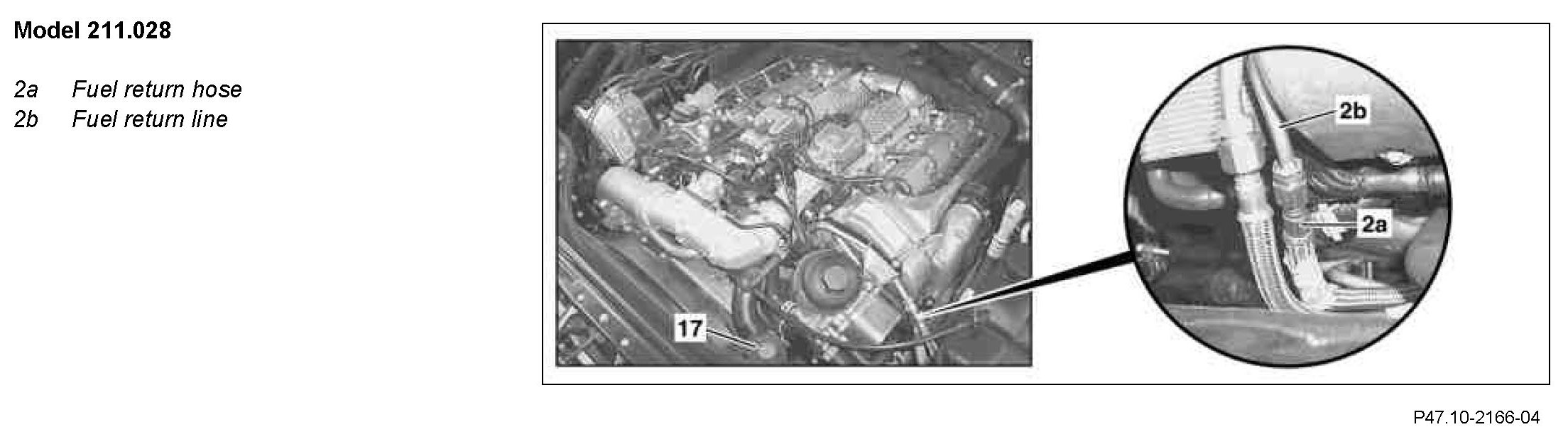

Component Identification:

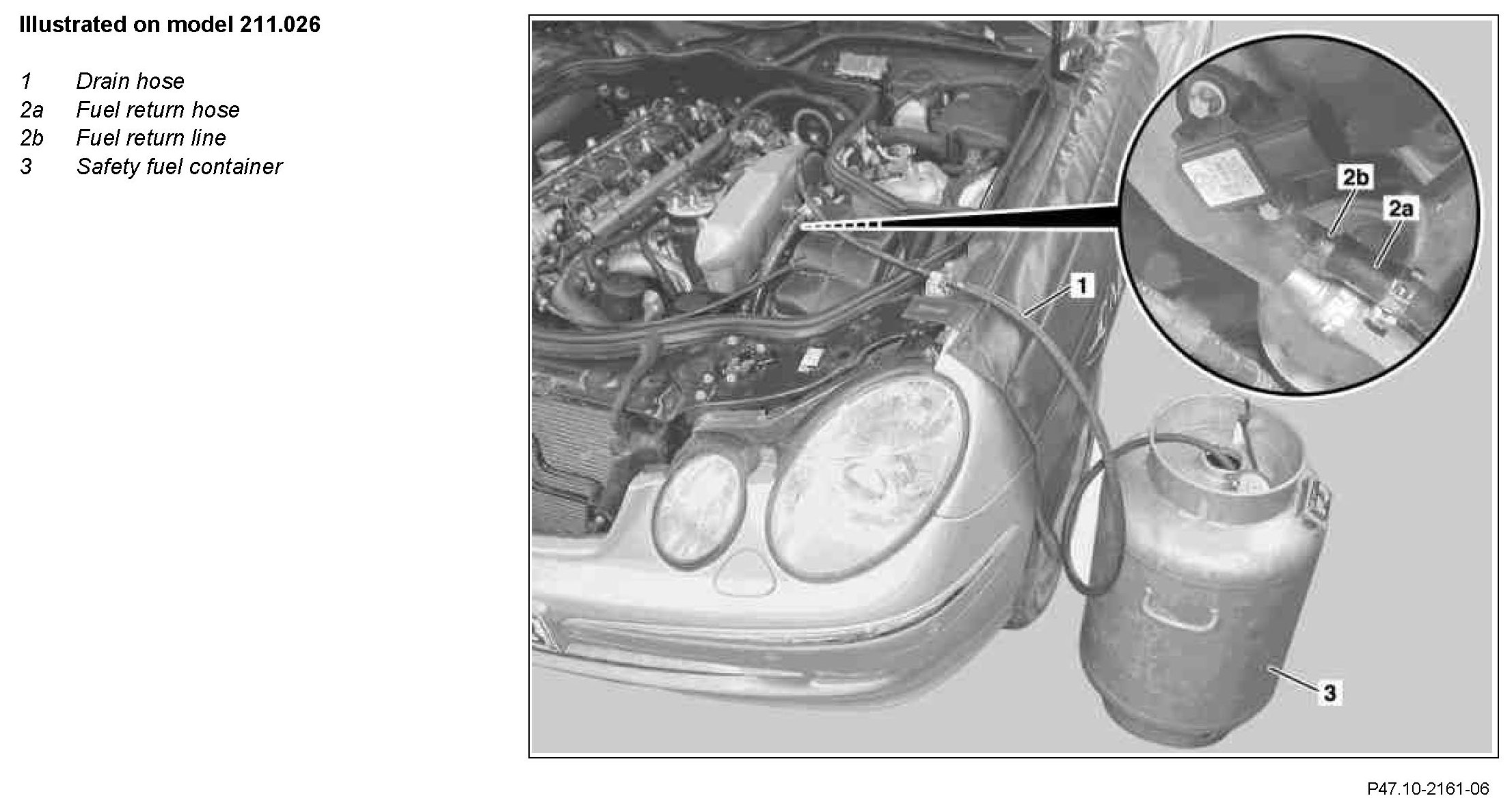

Component Identification:






Modification Notes:

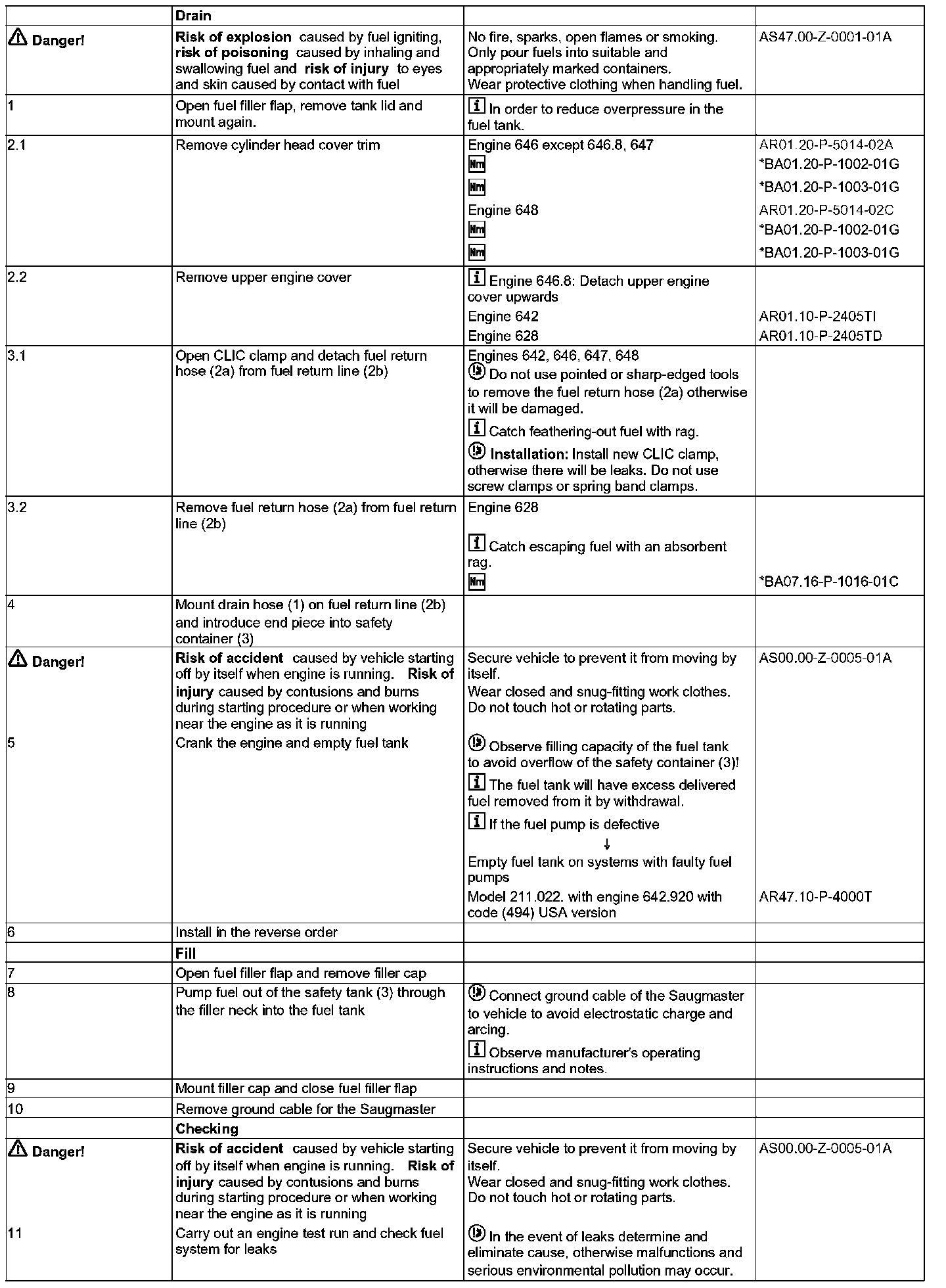

Steps 1 - 11:

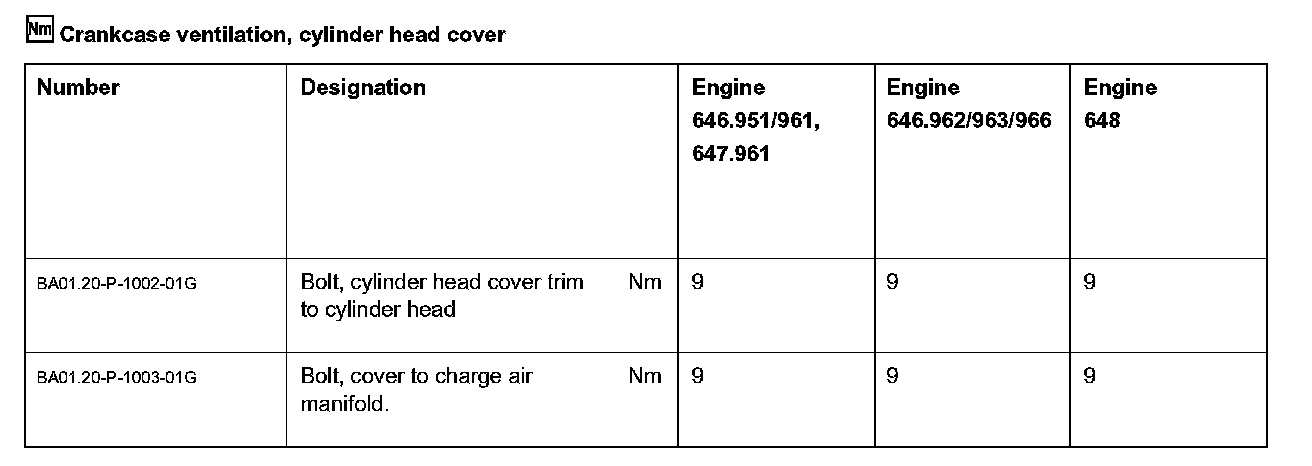

Crankcase Ventilation, Cylinder Head Cover:

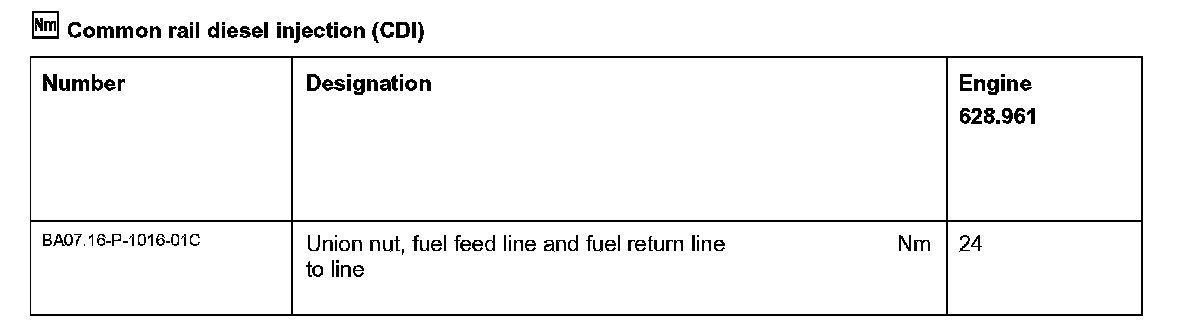

Common Rail Disel Injection (CDI):
