AR63.50-P-1400-01T Remove/Install Cover For Filler Fitting

AR63.50-P-1400-01T Remove/install Cover For Filler Fitting

Special Tools:

1. Remove inner fender at rear inner wheel arch panel.
2. Remove expansion tank and fuel filler neck from tank system.

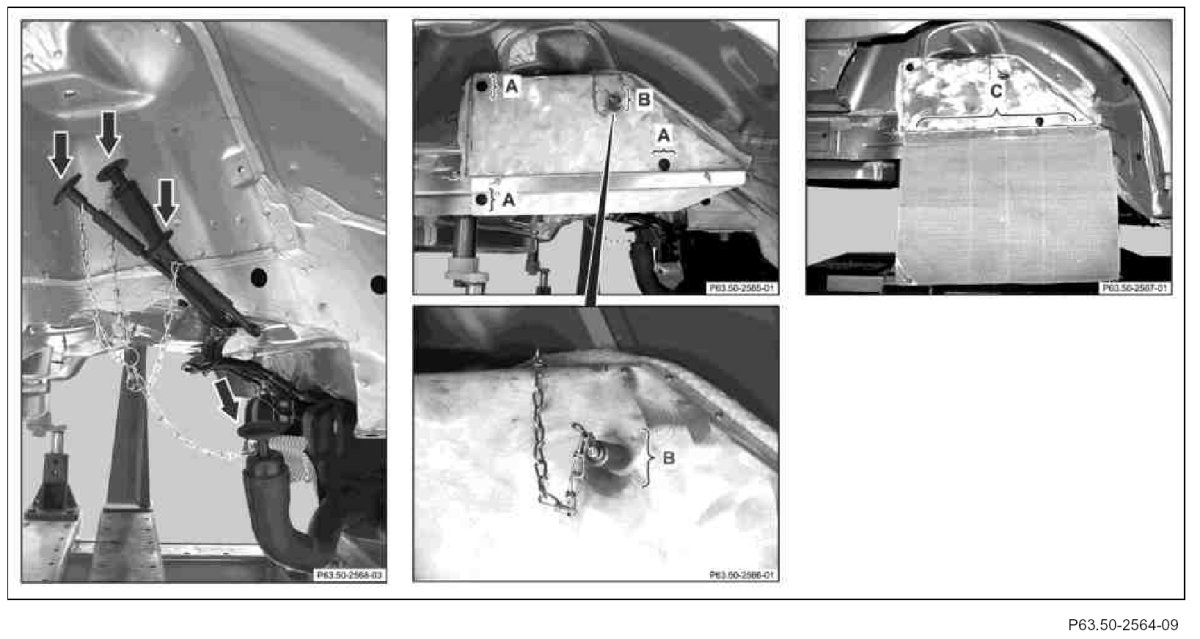

3. Plug open fuel lines with plastic plugs (arrows).
4. Fasten cover on inner rear wheelhouse (areas A and B).

Use original nuts (area A).

5. Install protective cover (area C).
