AR07.16-P-1010TI Remove/Install Rail
AR07.16-P-1010TI Remove/Install Rail
AR07.16-P-1010TI Remove/Install Rail
Component Identification:

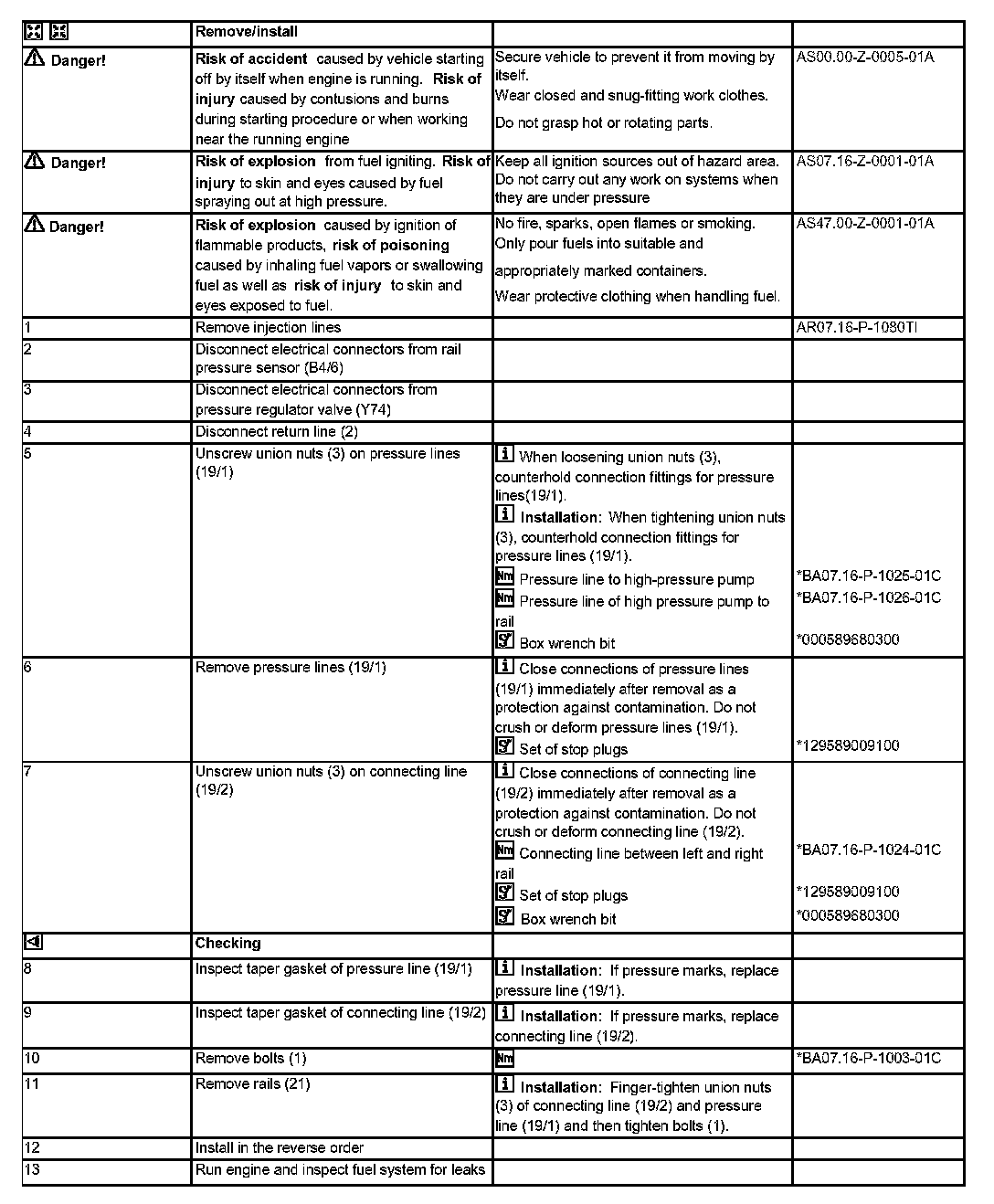

Steps 1 - 13:

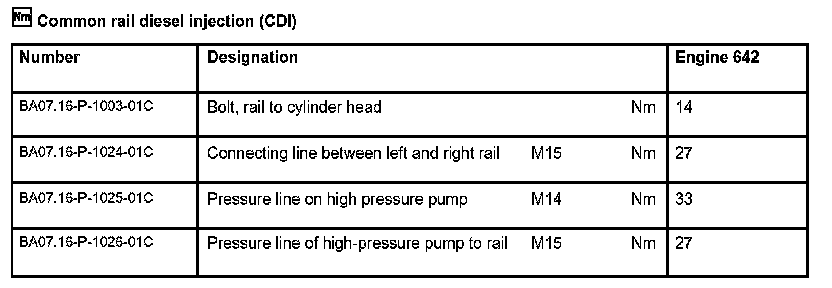

Common Rail Diesel Injection (CDI):
Special Tools:
Special Tools:
