AR07.16-P-0100TI Bleed Low Pressure Fuel Circuit

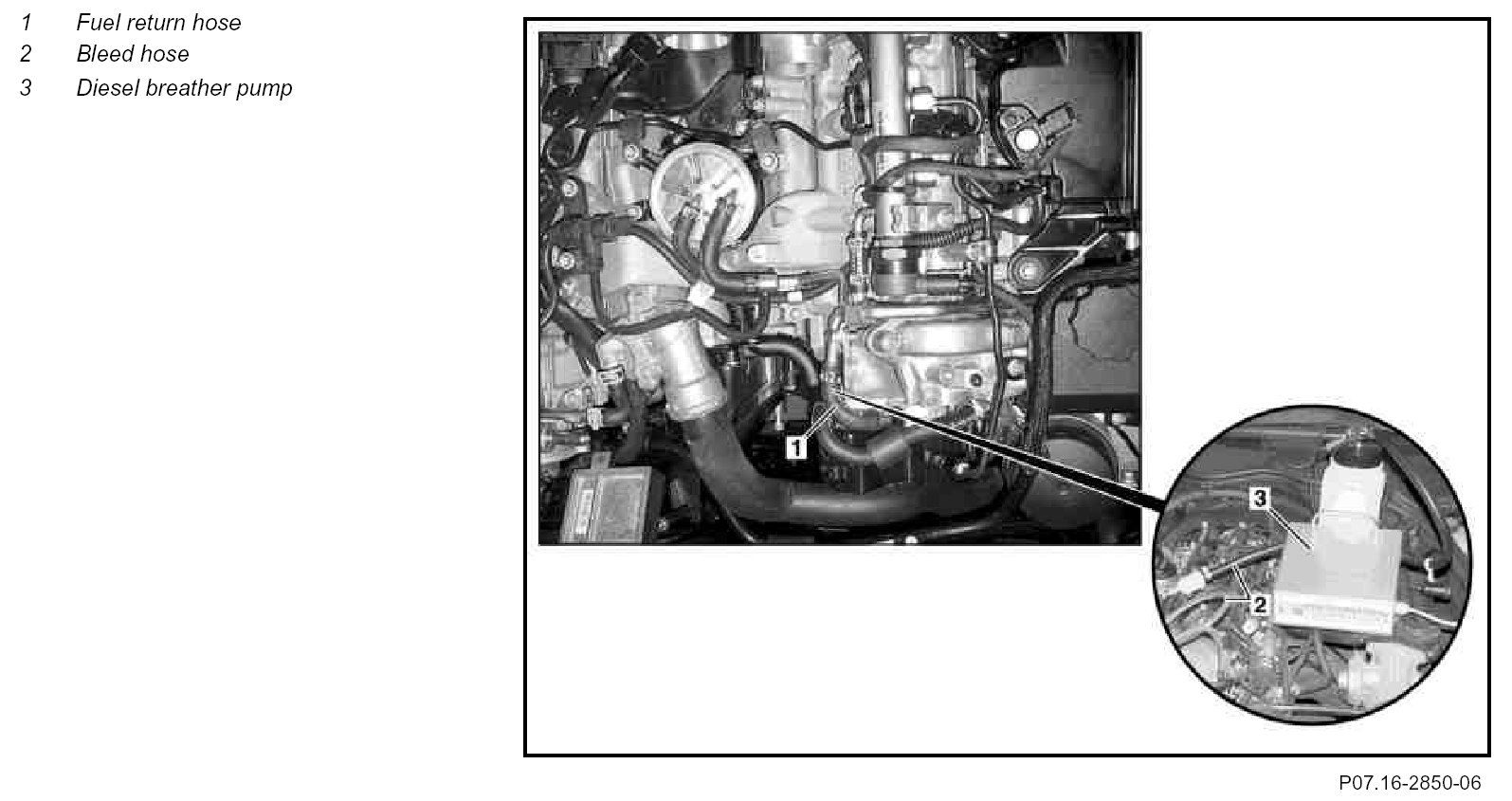

Component Identification:

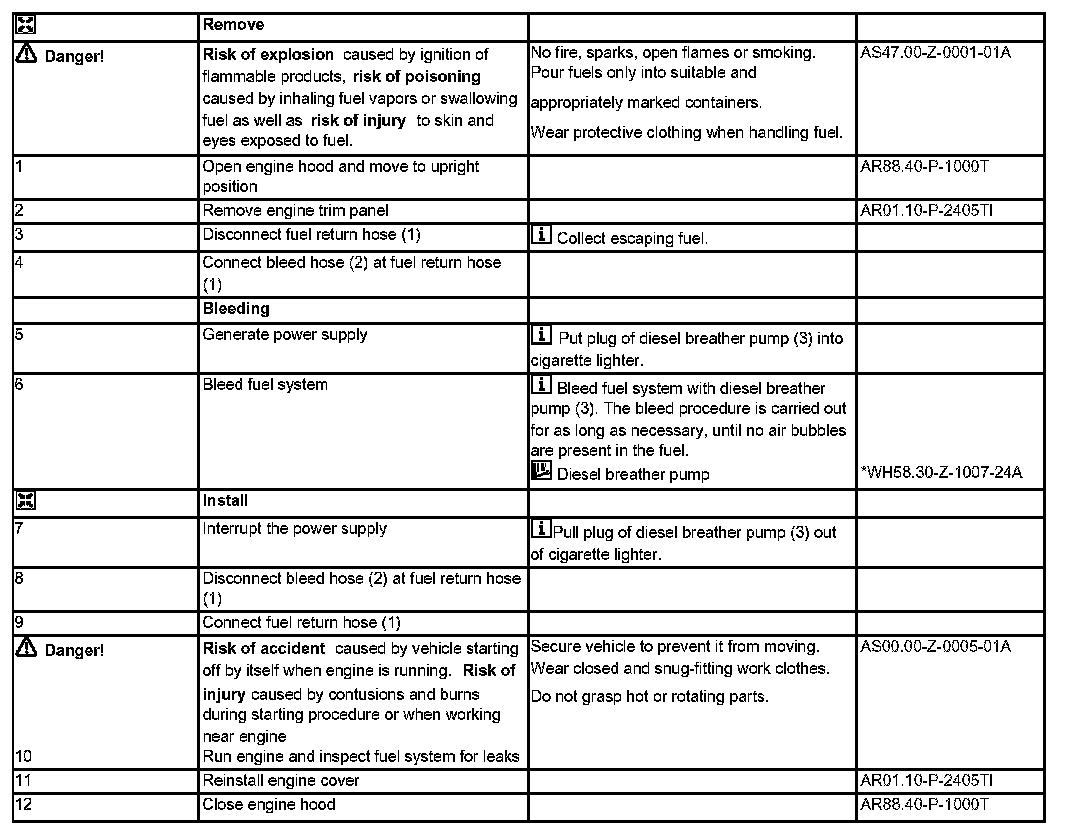

Steps 1 - 12:

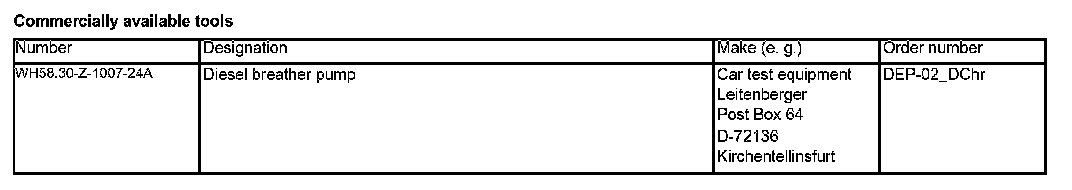

Commercially Available Tools:
