Diesel MFI Pump Drive Gear: Service and Repair
AR07.02-P-1021TI Remove The Drive Pinion Gear Of The High Pressure Pump

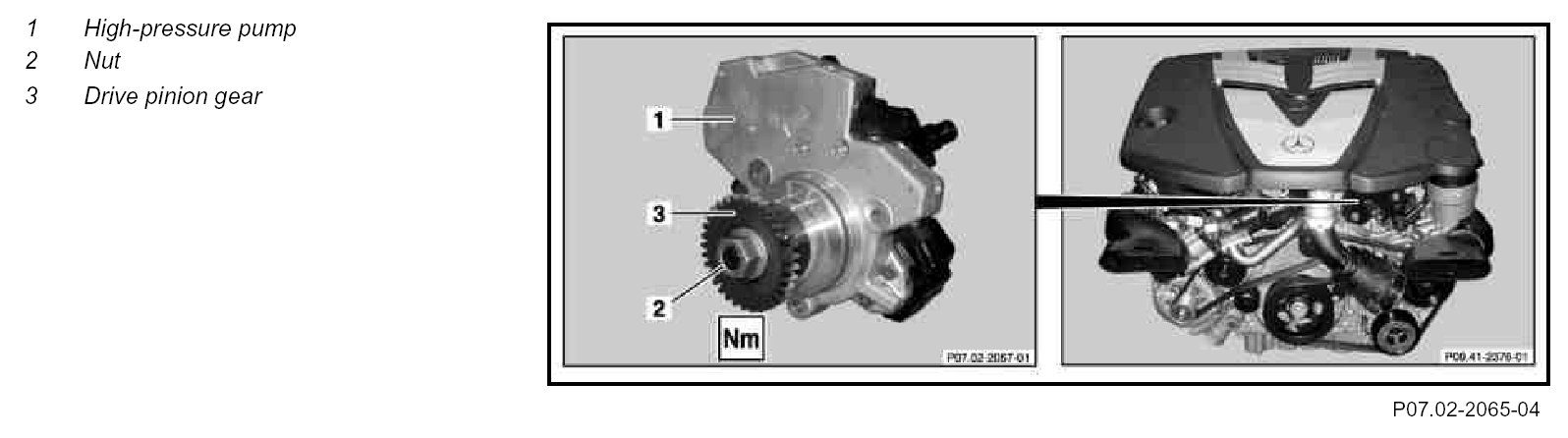

Component Identification:

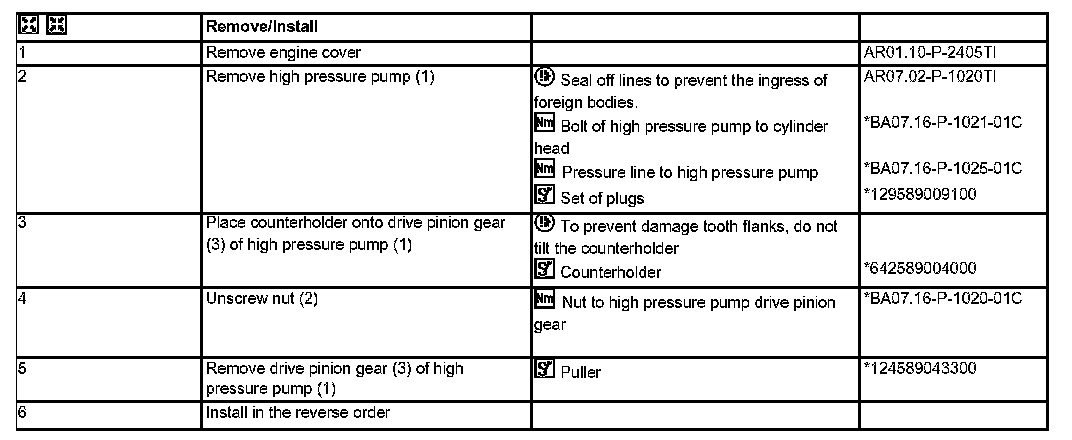

Steps 1 - 6:

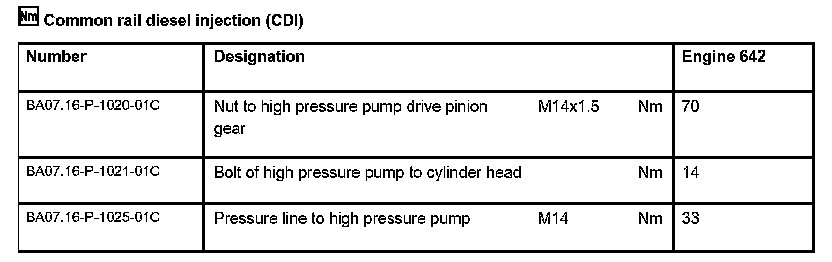

Common Rail Diesel Injection (CDI):

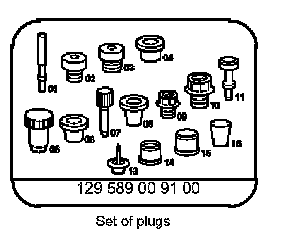

Special Tools:
Special Tools:
Special Tools:
AR07.02-P-1021TI Remove The Drive Pinion Gear Of The High Pressure Pump
