EGR Cooler: Service and Repair
AR14.20-P-7665TI Removing/installing the
exhaust gas recirculation
cooler

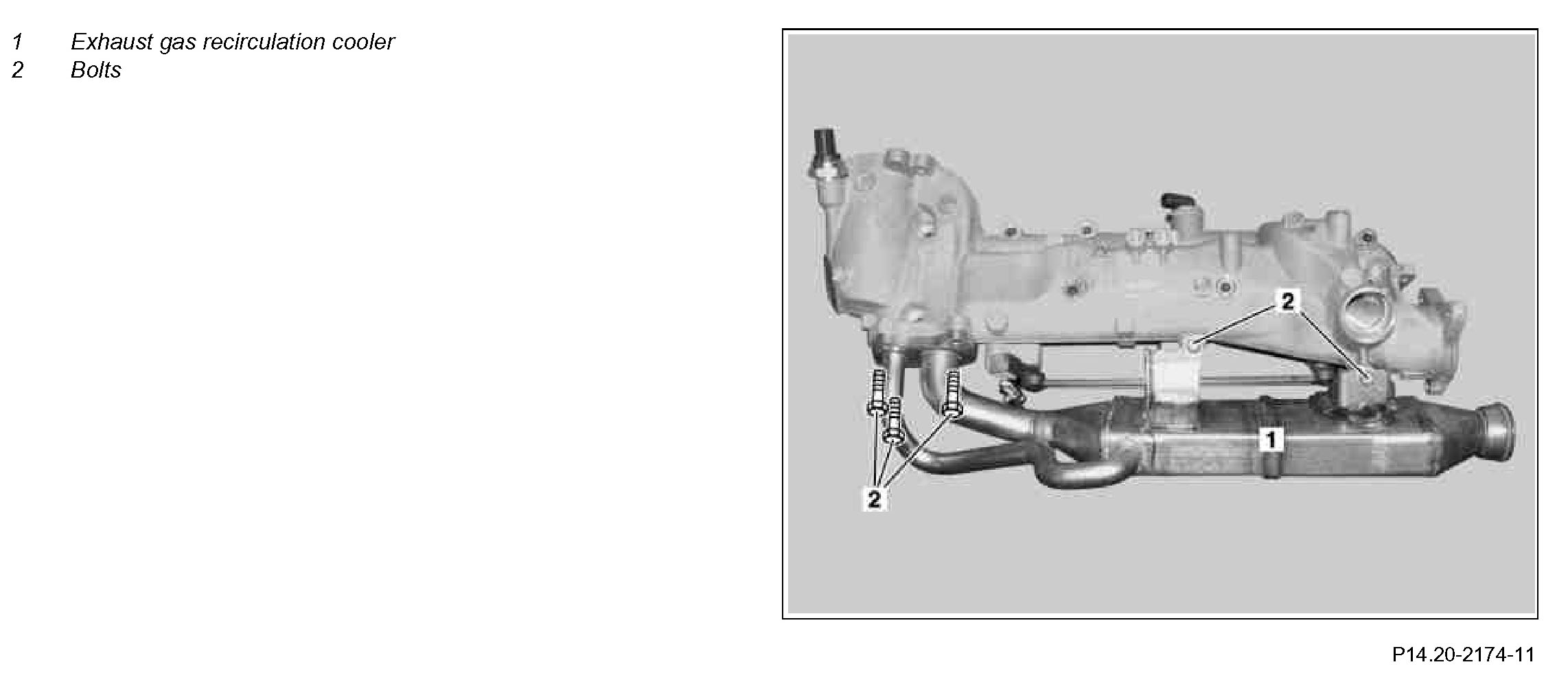

Component Identification:

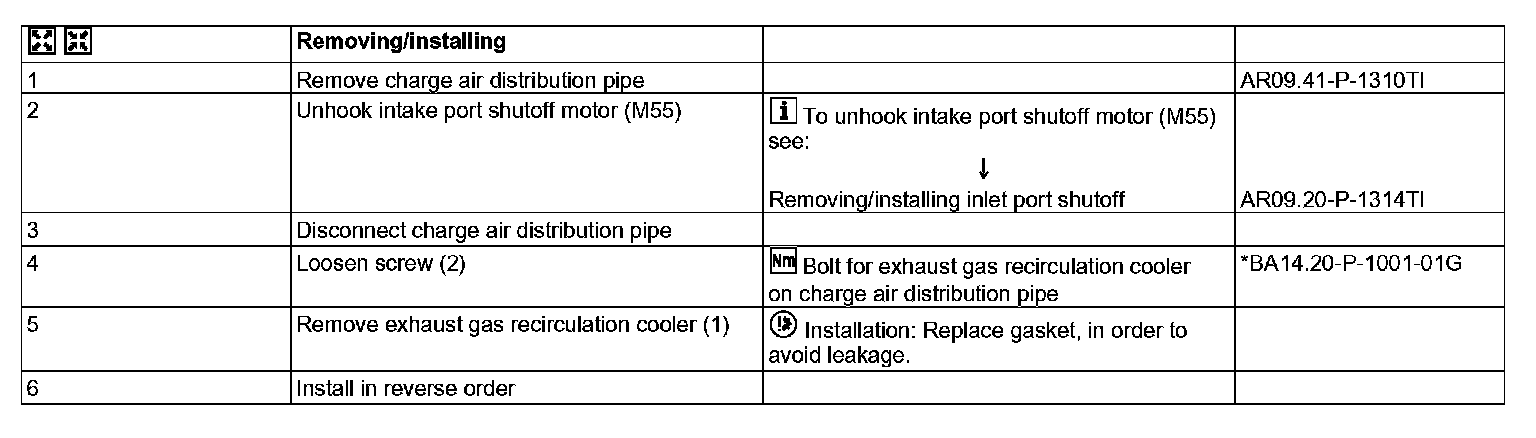

Steps 1-6:

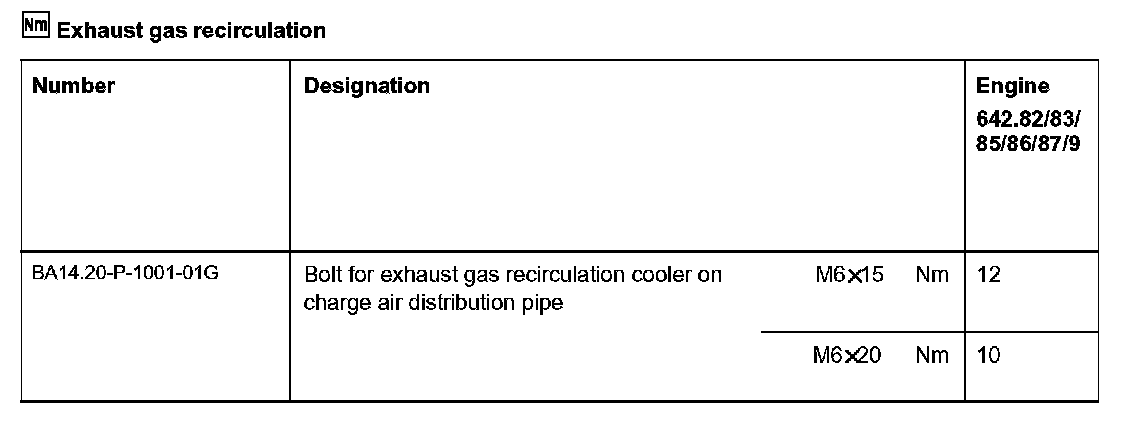

Exhaust gas recirculation:
