GF14.20-P-2020P Component Description For the Exhaust Gas Recirculation Cooler

GF14.20-P-2020P Component Description For The Exhaust Gas Recirculation Cooler

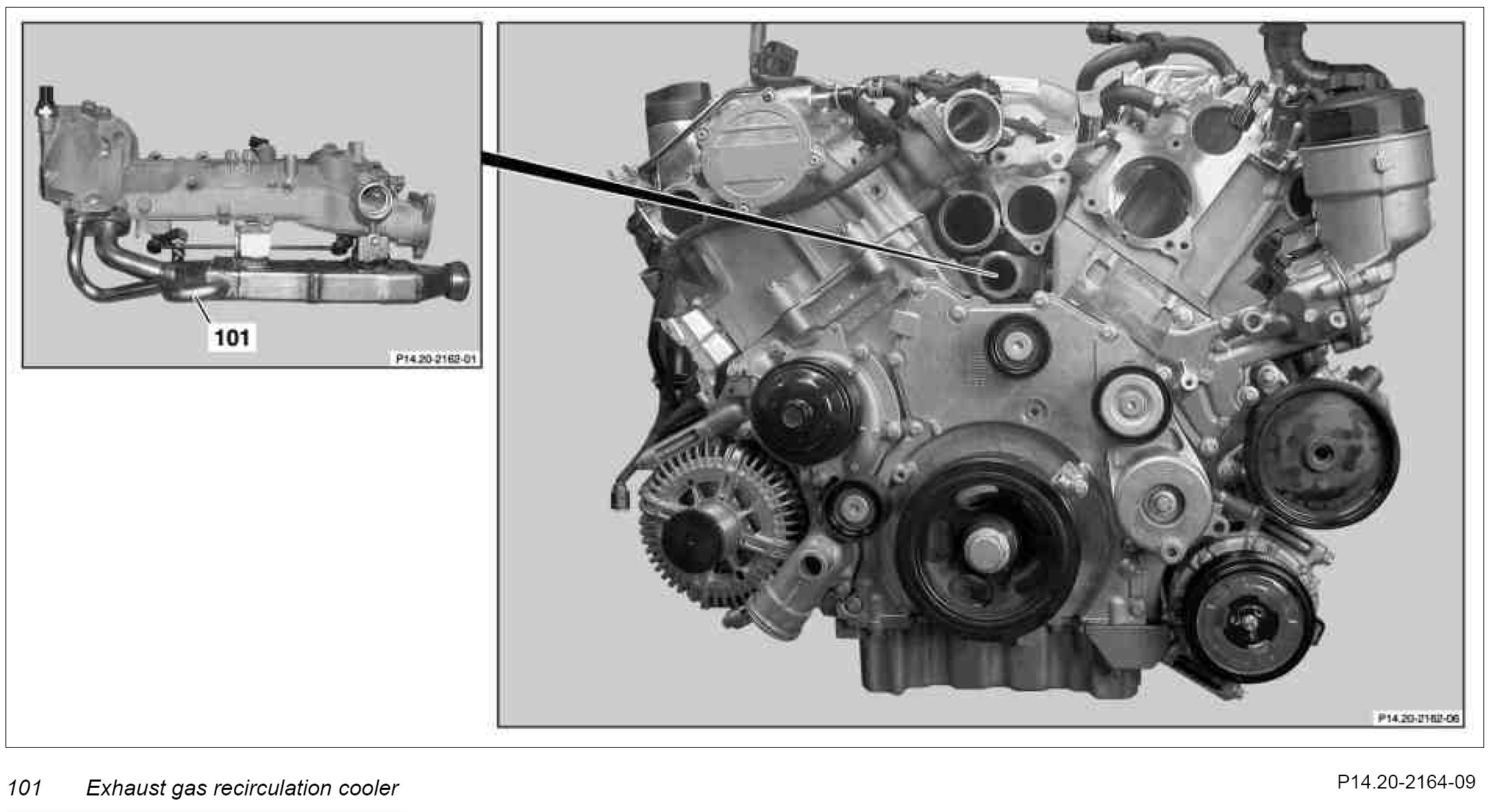

Location
The exhaust gas recirculation cooler is located below between the two cylinder heads.

Task
The exhaust gas recirculation cooler lowers the temperature of the exhaust gases passed over the left exhaust gas recirculation positioner (Y27/9) (except model 461) or the exhaust gas recirculation positioner (Y27/9) (model 461). Temperature lowering produces a greater density of exhaust gases. This increases the exhaust gas recirculation rate and the nitrogen oxide (NO(X)) emission is lowered.

In model 211.022 with OM 642.920 and code (494) USA version, in model 211.022/222 with OM 642.920 and code (498) Japan version and in model 211.024 with OM 642.920, the exhaust gas recirculation cooler has 12 cooling ducts instead of the previous 9 cooling ducts. In model 164.1/8 and model 251.0/1 with code (494) USA version, the exhaust gas recirculation cooler also has 12 cooling ducts instead of the previous 9 cooling ducts.
