Wiring Diagram Common Rail Diesel Injection (CDI) PE07.16-U-2101DH

Wiring Diagram Common Rail Diesel Injection (CDI) Control Module pe07.16-u-2101-99dh

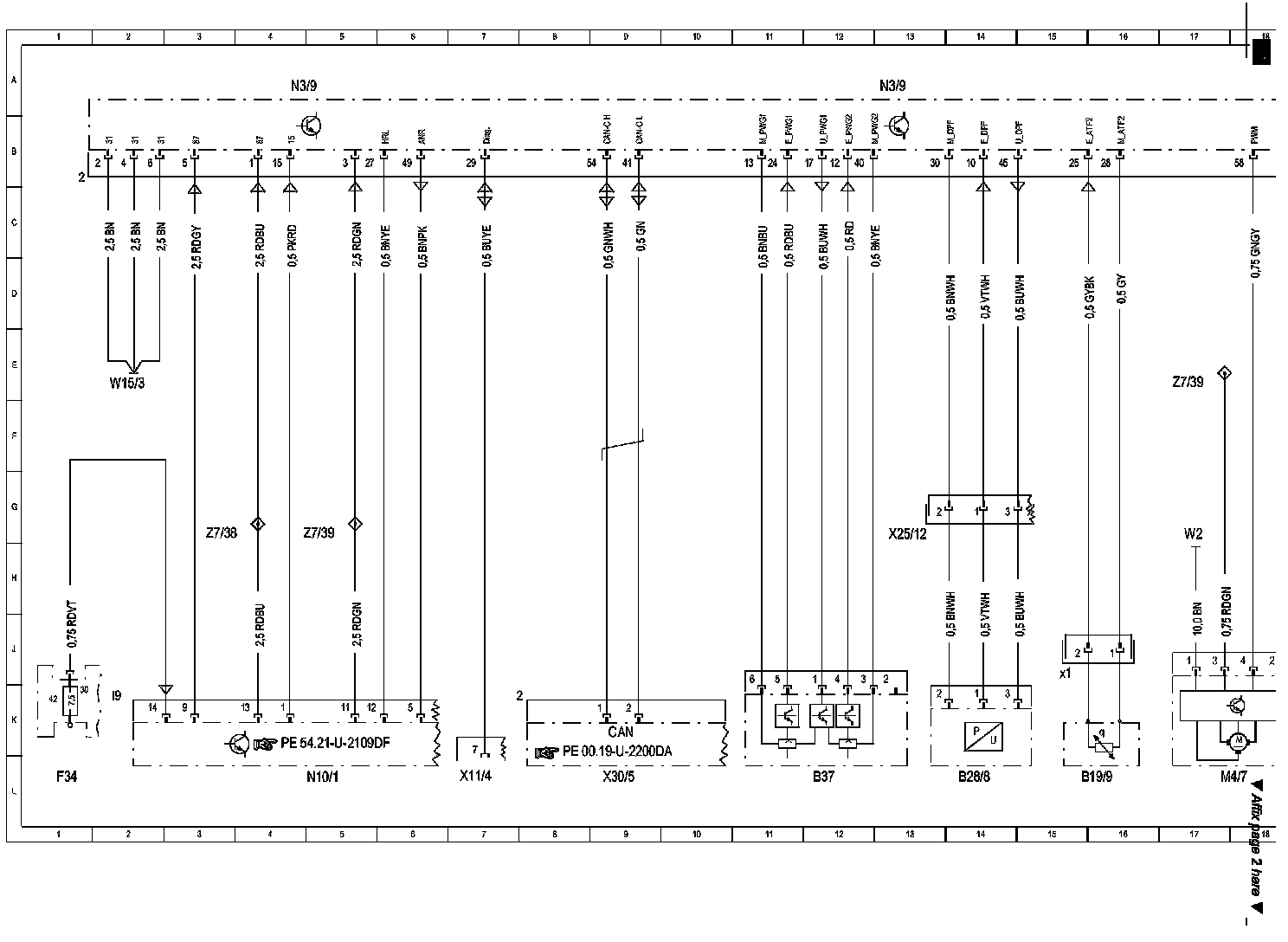

Wiring Diagram (Part 1):

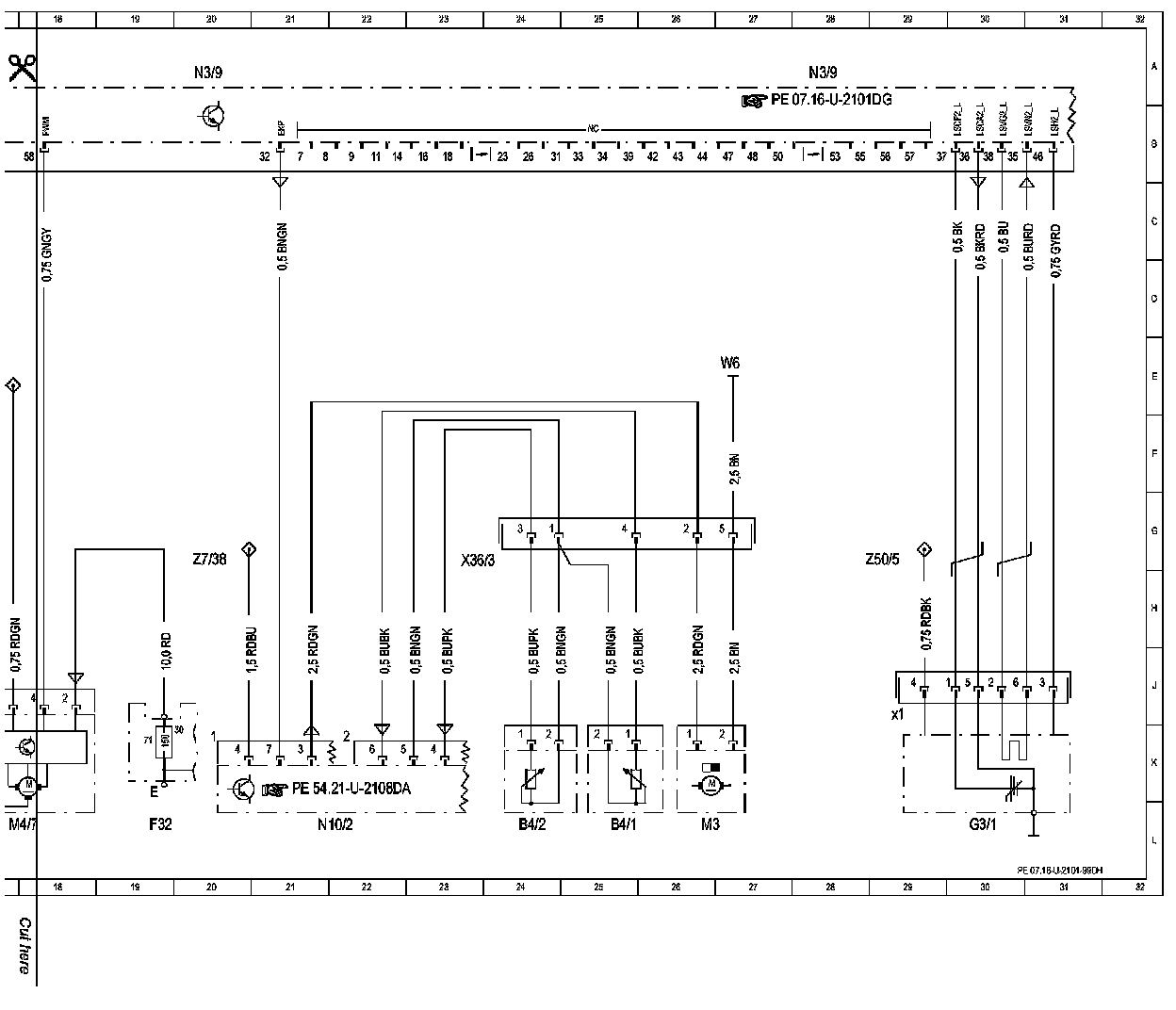

Wiring Diagram (Part 2):

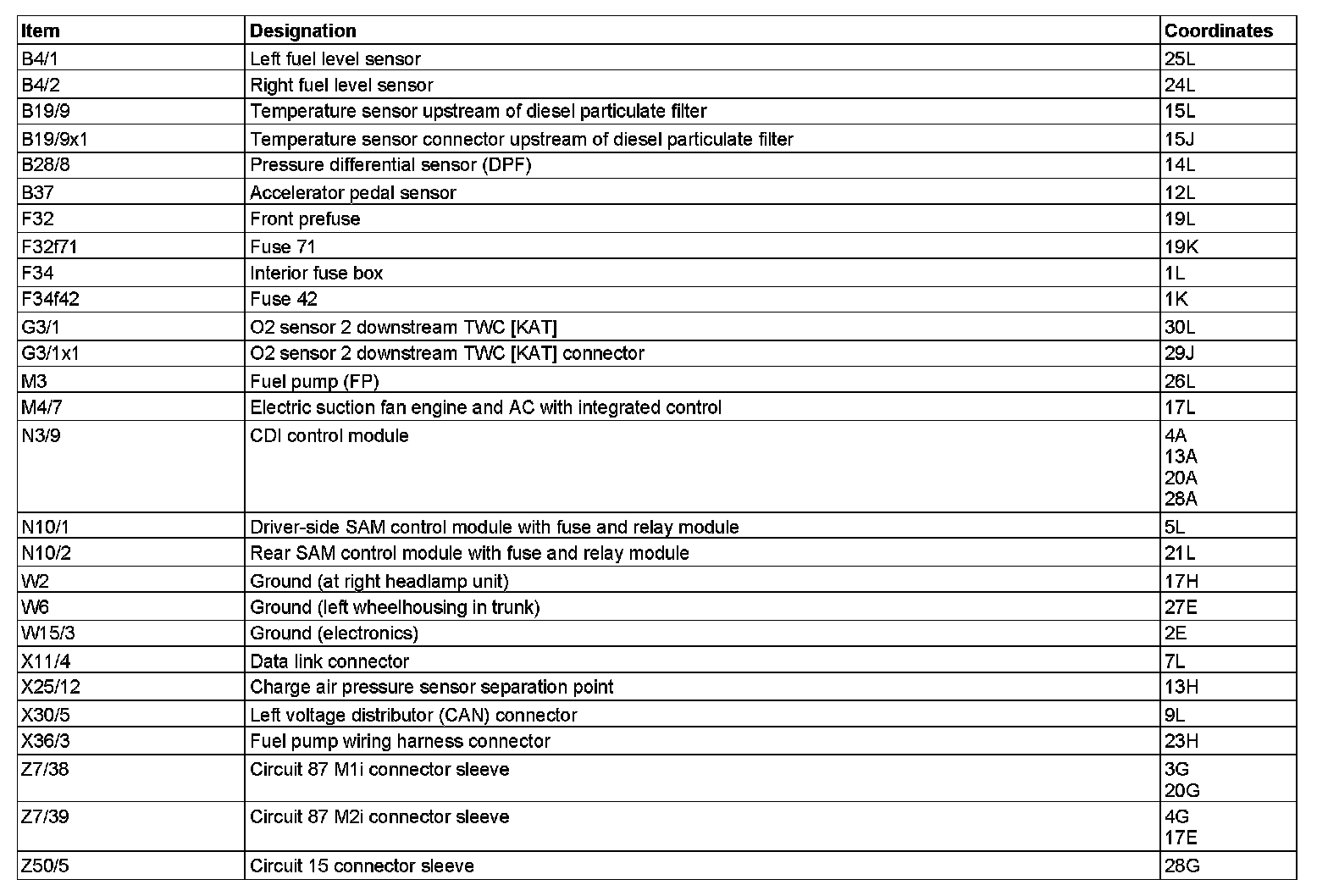

Component Description/Coordinates, B4/1 To Z50/5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
