Campaign - ECM Software/SCN Coding Update

FILE:
SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER

Campaign No. 2008050002, August 2008

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT:
MODEL 211.022, MODEL YEARS 2007 AND 2008

UPDATE ENGINE CONTROL MODULE SOFTWARE AND SCN CODING

This Service Campaign has been initiated because DAG has determined that under certain circumstances the oxygen sensor may clog with carbon particulates. This condition may be due to a number of factors including unusual driving patterns, high humidity, and variations in diesel fuel including the use of bio-diesel. To correct this condition, the dealer will update the engine control module software and SCN coding at the next workshop visit.

Prior to performing this Service Campaign:

^ Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired.

^ Please review the entire Service Campaign bulletin and follow the repair procedure exactly as described.

Please note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.

Approximately 6407 vehicles are affected.

Procedure

Note:
^ Use DAS 06/08 with all associated patches or higher.

^ Follow the steps exactly as described in DAS.

^ Connect battery charger (battery voltage >12.5V).

1. Connect Star Diagnosis to vehicle.

2. Install engine control module software:

Follow the DAS path: Control units/Drive/CDI5 Common Rail Diesel/Control unit adaptations/Control unit Programming (follow on screen instructions).

3. SCN code Engine control module.

Note:

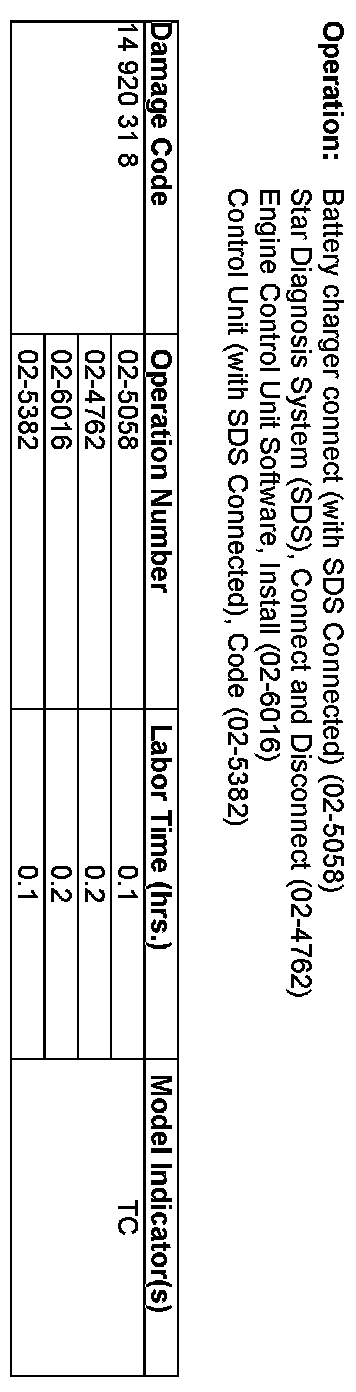

The following allowable labor operation should be used when submitting a warranty claim for this repair:





Warranty Information
