Computer/Controls - DAS/XD Add-On 2009-10-21-1289

DAS/XD ADD-ON 2009-10-21-1289 FOR PASSENGER CARS

Topic number LI58.40-P-048537

Version 1

Design group 58.40 Workshop equipment/MB testers

Date 11-25-2009

Validity DVD version 10/2009

Reason for change

Reason for block

Complaint:

Audio or COMAND

Model series: 169, 245, 164, 251, 171, 203, 211, 219, 463+37

Initial startup cannot be completed with Audio20

ABR

Model series: 216

Control unit programming cannot be performed.

CDI6

Model series: 164, 254

Unknown variant of CDI control unit.

TGW2

Model series: 212, 204, 207

Test of mobile phone Bluetooth adapter (HFP cradle) results in faulty test result

Teleaid

Model series: 164, 211, 221

PRL update nonfunctional

ETC

Model series: 204, 212, 207

1. Display of adaptation data

Cause:

For all complaints: XD and DAS diagnostic data.

Remedy:

DAS/XD add-on 2009-10-21-1289 for passenger cars:

This add-on can be installed over DAS/XD version 10/2009.

This add-on does not supersede any other add-ons and must be additionally installed.

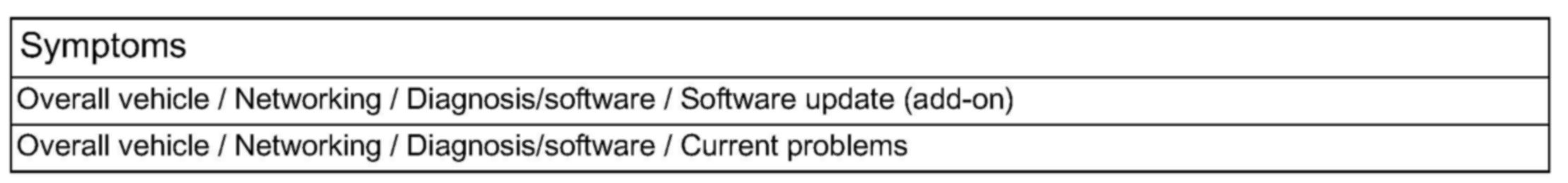

Symptoms

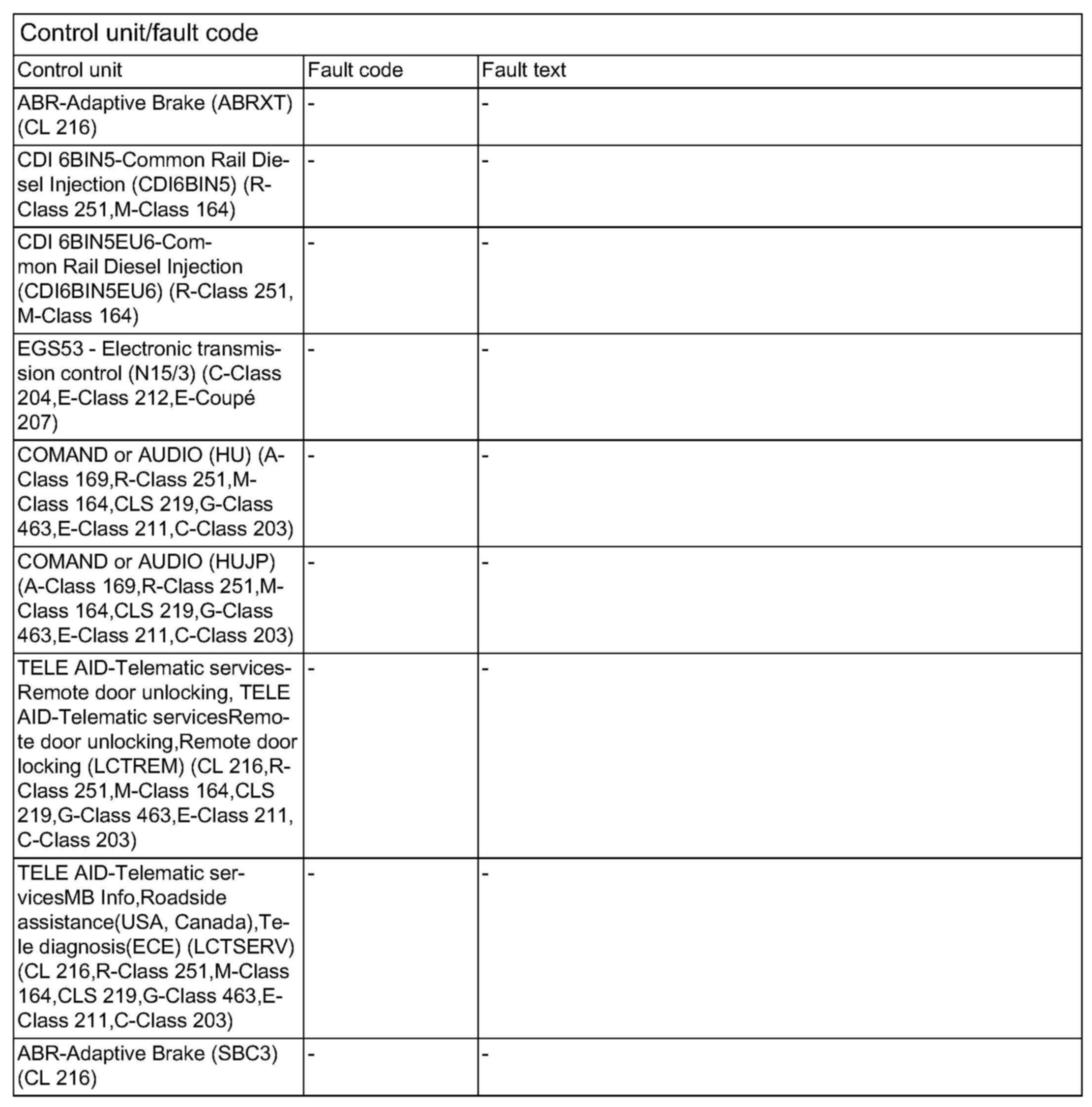

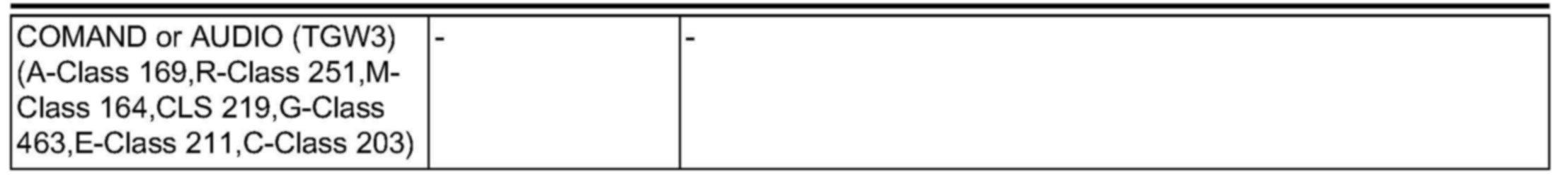

Control unit/fault code

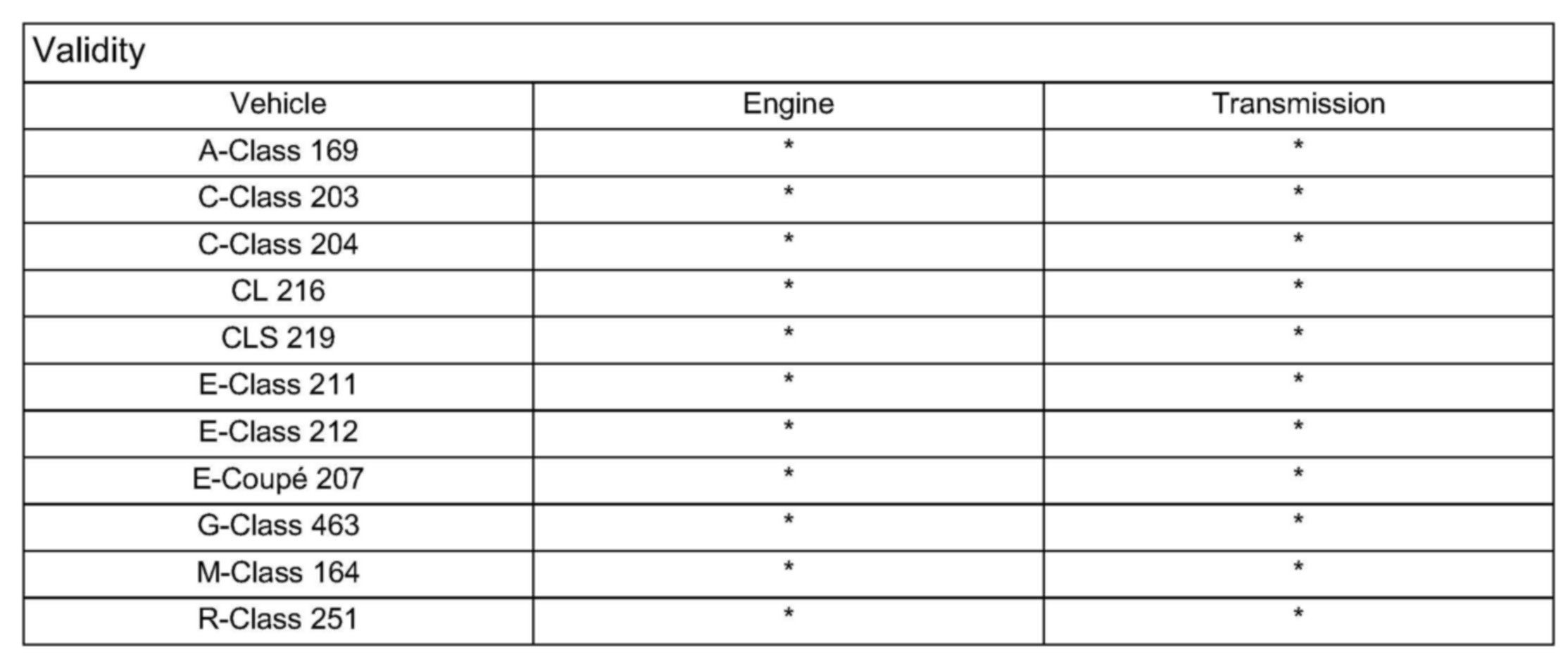

Validity
