Computer/Controls - DAS/XD Add-On 2009-10-21-1288

DAS/XD ADD-ON 2009-10-21-1288 FOR PASSENGER CARS

Topic number LI58.40-P-048536

Version 1

Design group 58.40 Workshop equipment/MB testers

Date 11-25-2009

Validity DVD version 09/2009

Reason for change

Reason for block

Complaint:

Audio or Comand

Model series: 169,245,164,251,171,203,211,219,463

Initial startup cannot be completed with Audio20

ABR

Model series: 216

Control unit programming cannot be performed.

CDI6

Model series: 164, 254

Unknown variant of CDI control unit.

SCR

Model series: 164, 251

Test prerequisites incomplete - Faults during actuations

Teleaid

Model series: 164, 211, 221

PRL update nonfunctional

AAC

Model series: 221, 216

Special function for eliminating coding problem after software programming
CDI6BIN5

Model series: 164, 251

Actuation cannot be started

Cause:

For all complaints: XD and DAS diagnostic data.

Remedy:

DAS/XD add-on 2009-10-21-1288 for passenger cars:

This add-on can be installed over DAS/XD version 09/2009.

This add-on does not supersede any other add-ons and must be additionally installed.

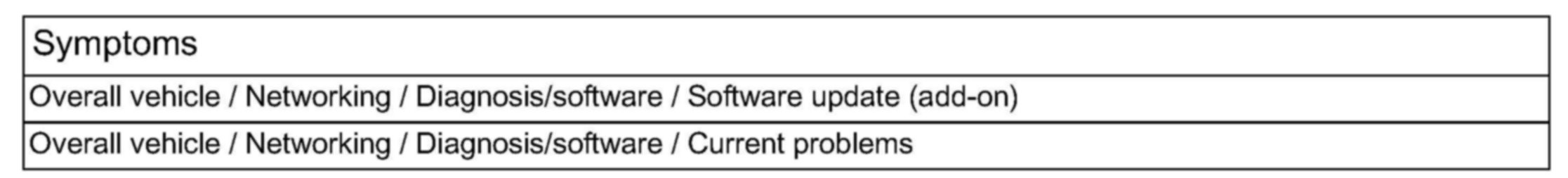

Symptoms

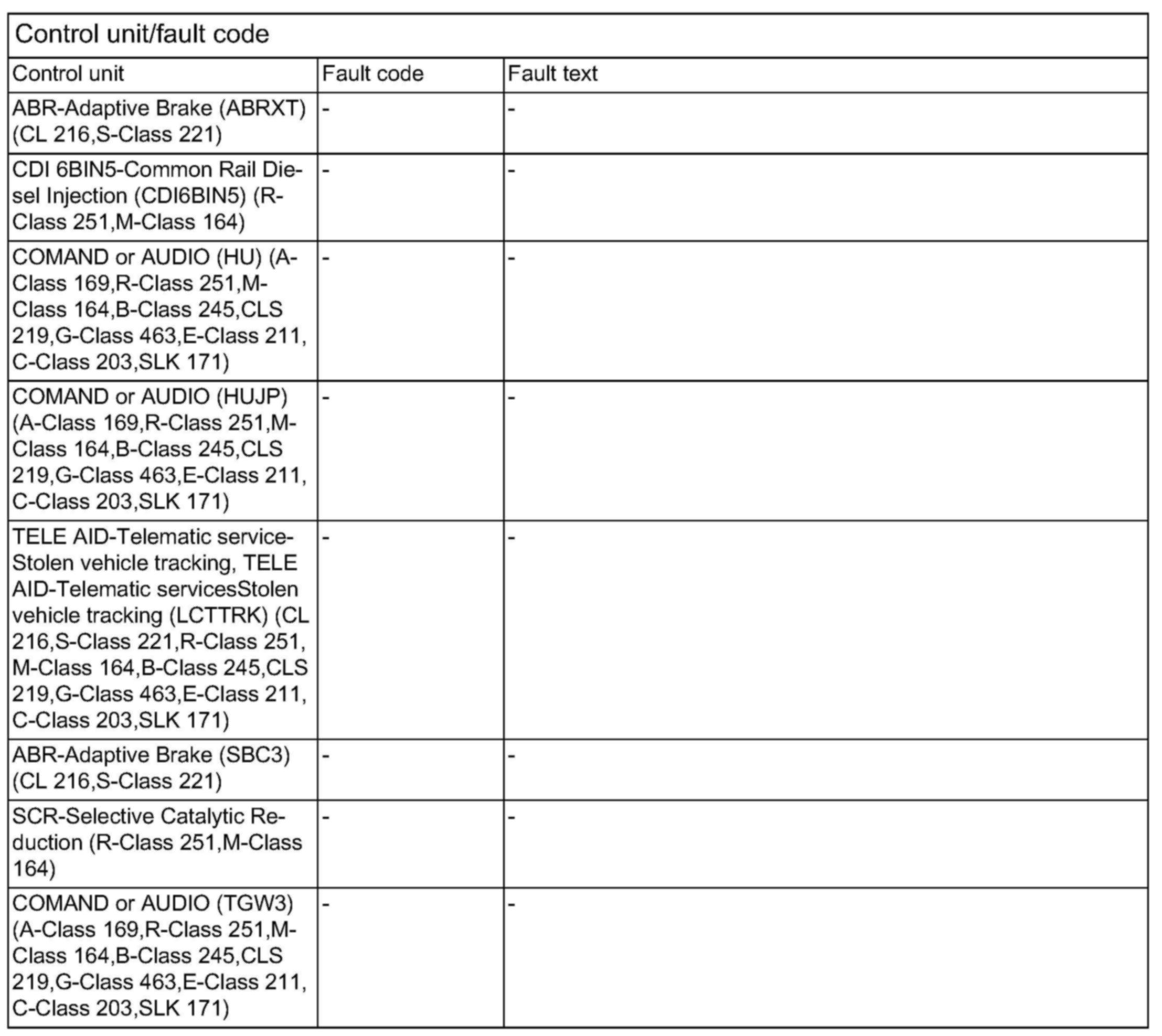

Control unit/fault code





Validity
