Fuel Level Sensor: Description and Operation

AH47.10-P-7000-02TI Information On Fuel Level Sensor

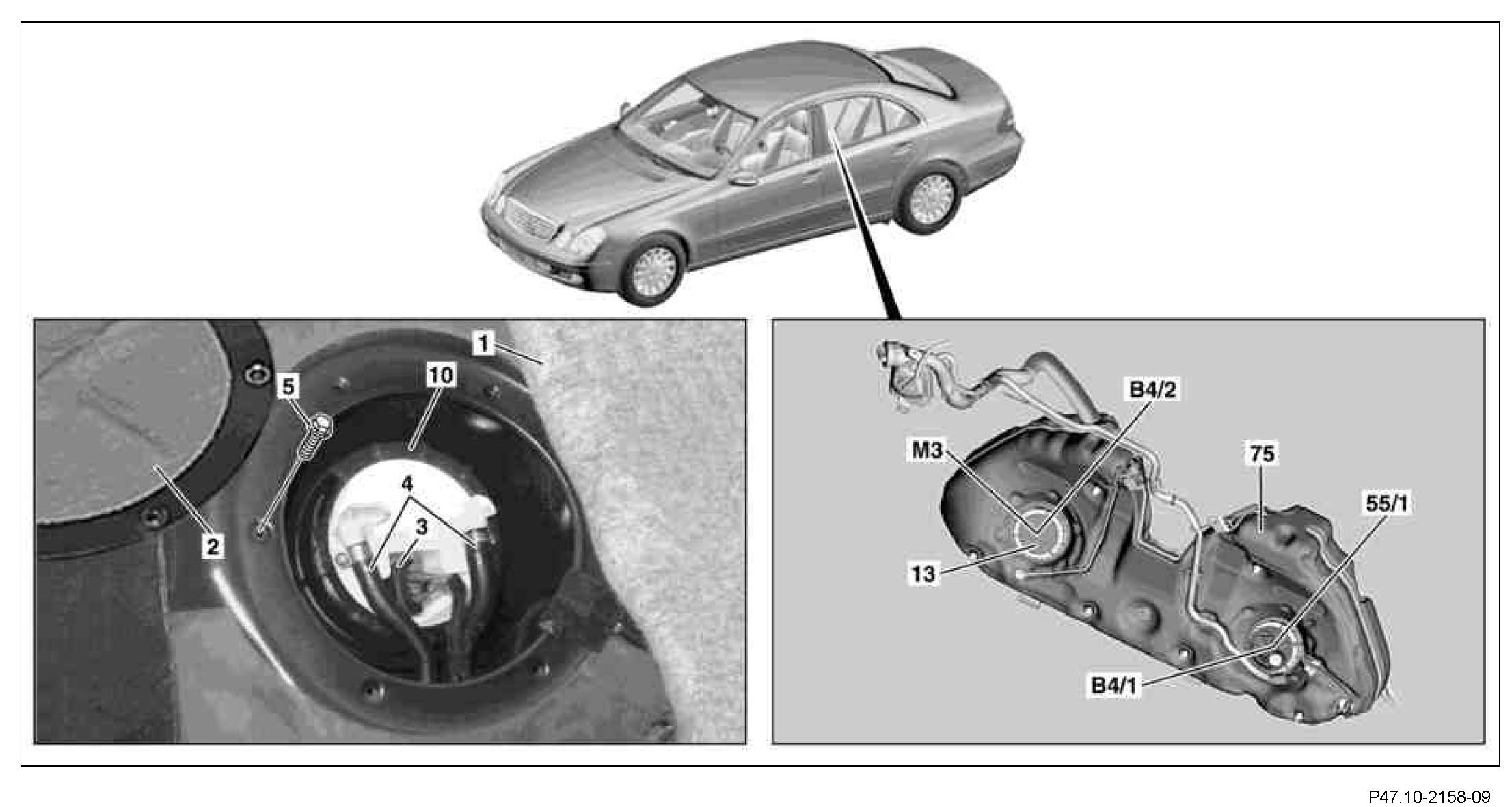

The fuel level sensor, right half of tank, (B4/2) and fuel pump (M3) form a single unit.

On the fuel level sensor, left half of tank (B4/1) and the fuel level sensor, right half of tank (B4/2) the connecting lines are fitted with plugs at the swirl pot.
