AR14.40-P-2011GZB Remove/Install Temperature Sensor Upstream SCR Catalytic Converter



AR14.40-P-2011GZB Remove/install temperature sensor upstream SCR catalytic converter
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)

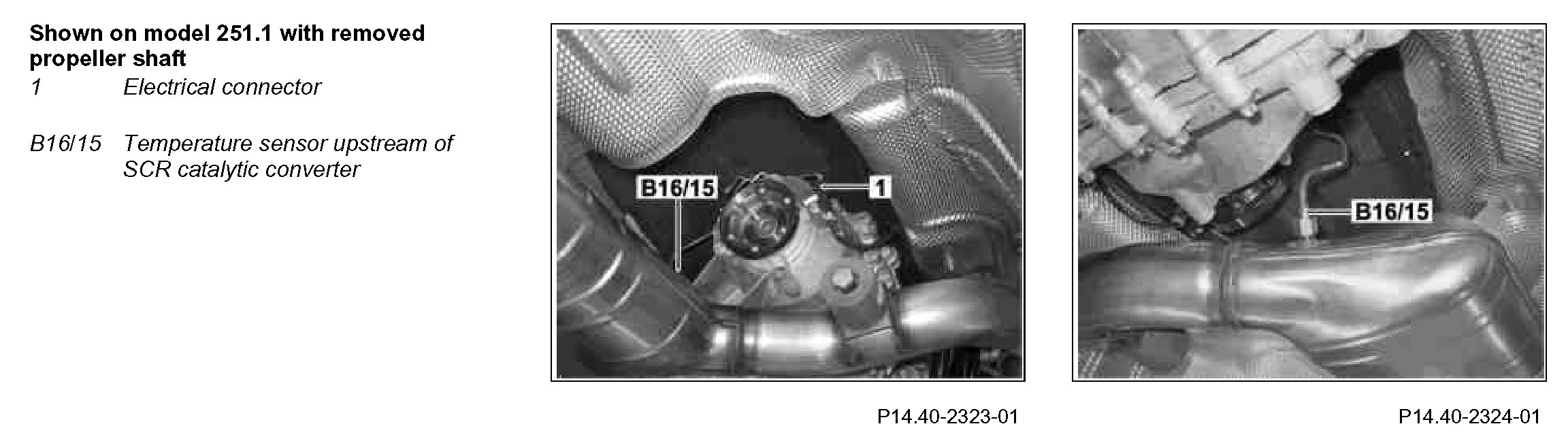

Component Identification:

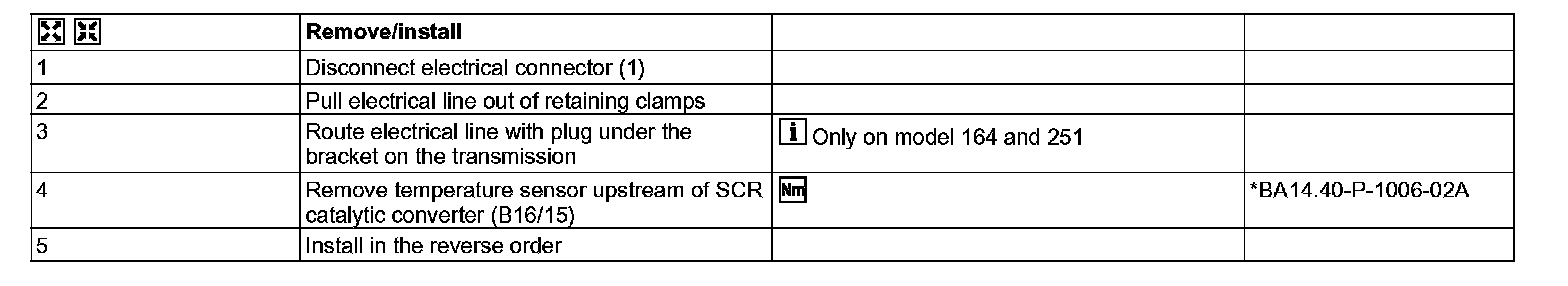

Steps 1-5:

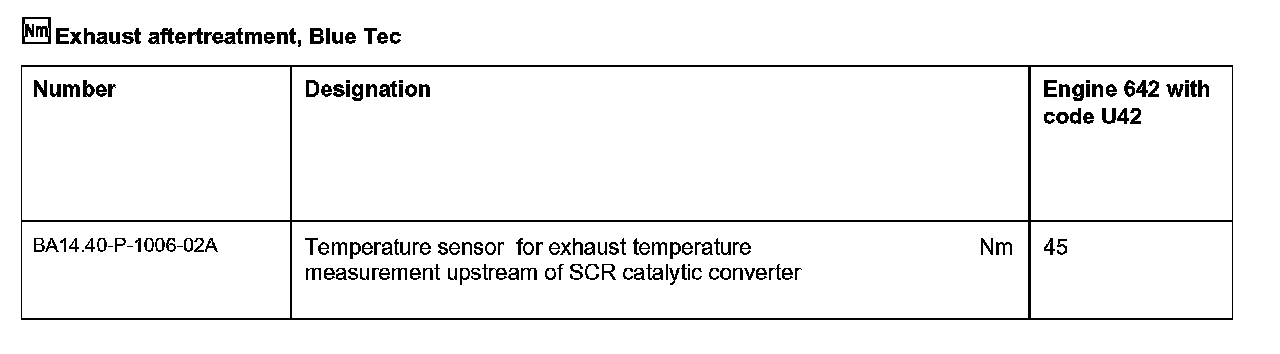

Exhaust aftertreatment, Blue Tec:
