GF07.04-P-6050P Component Description For Charge Air Temperature Sensor

GF07.04-P-6050P Component Description For Charge Air Temperature Sensor
ENGINE 642 in MODEL 164.1 /8, 203.0 /2, 221.0 /1, 251.0 /1 up to model year 2008
/YoM 07
ENGINE 642 in MODEL 209.3 /4, 211.0 /2 /6, 219.3
ENGINE 642 in MODEL 463 up to 31.5.12

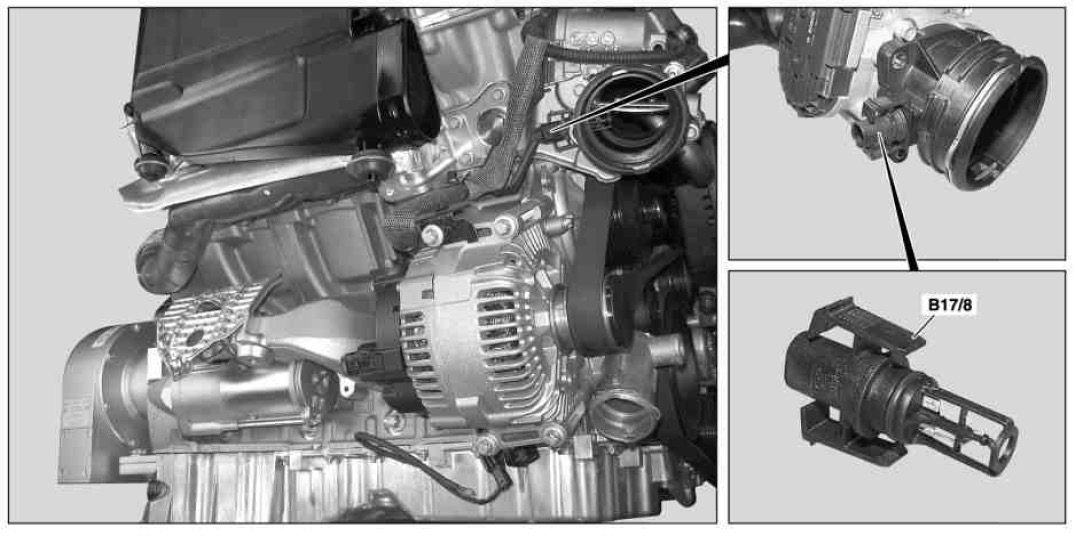

B17/8 Charge air temperature sensor

Location
The charge air temperature sensor sits in the plastic housing in front of the throttle valve actuator (M16/6).

Task
The charge air temperature sensor detects the charge air temperature and sends the signal to the CDI control unit (N3/9).

Design
The charge air temperature sensor possesses an integral measuring resistor with a negative temperature coefficient (NTC).

Function
The electrical resistance of the NTC measuring resistor varies according to charge air temperature. Electrical resistance decreases as temperature increases.
