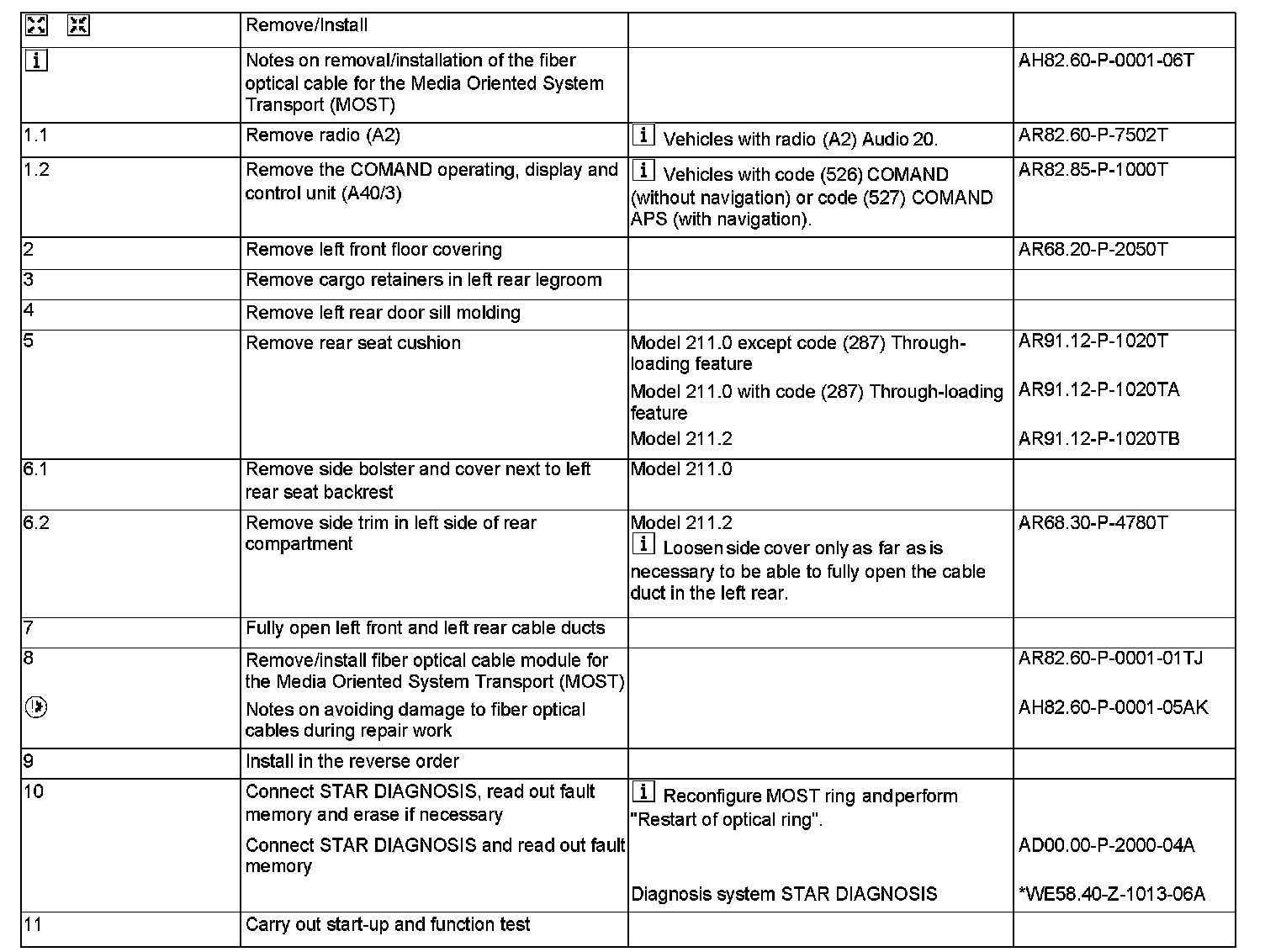

AR82.60-P-0001TJ Remove/Install Fiber Optical Cable For the Media Oriented System Transport (MOST)



AR82.60-P-0001TJ Remove/Install Fiber Optical Cable For the Media Oriented System Transport (MOST)

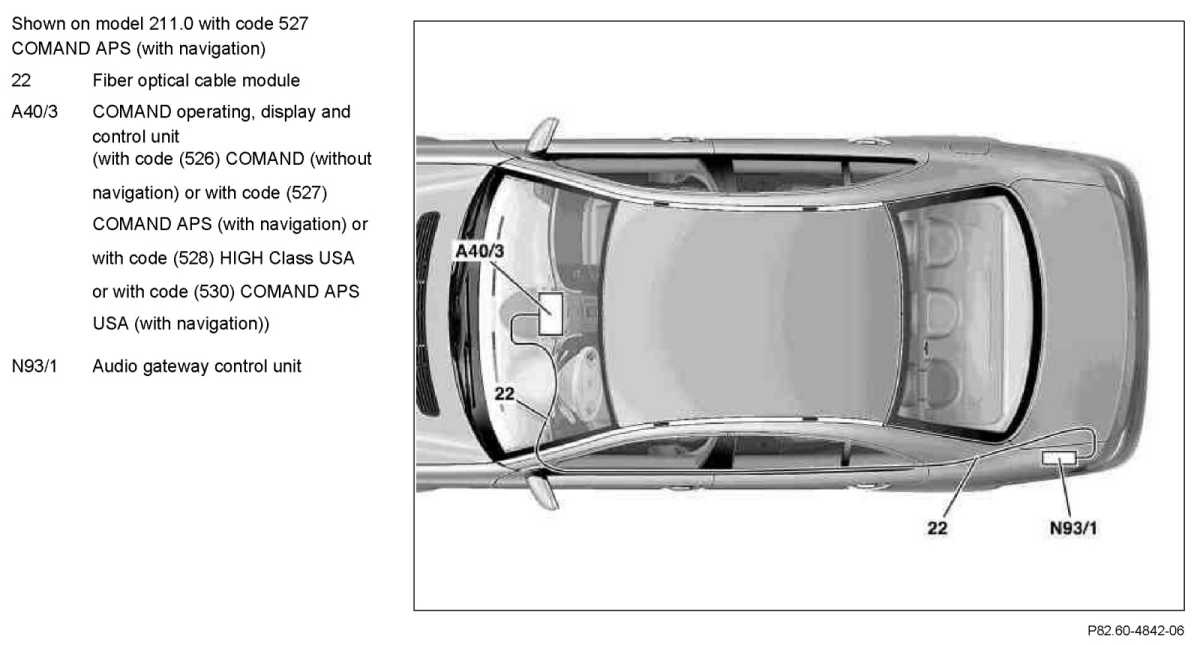

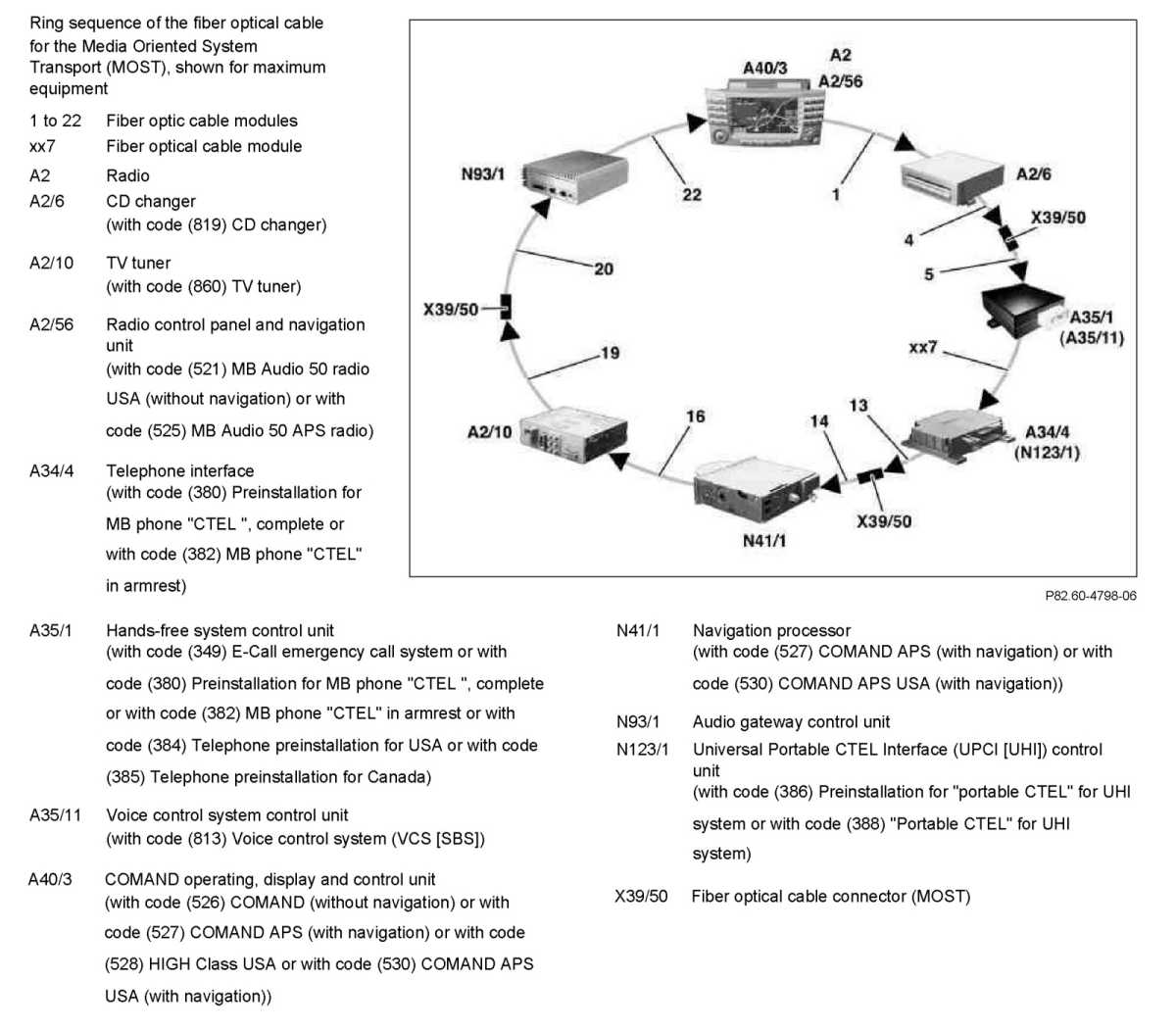

- Fiber optic cable (MOST) between audio gateway control unit and radio/COMAND
