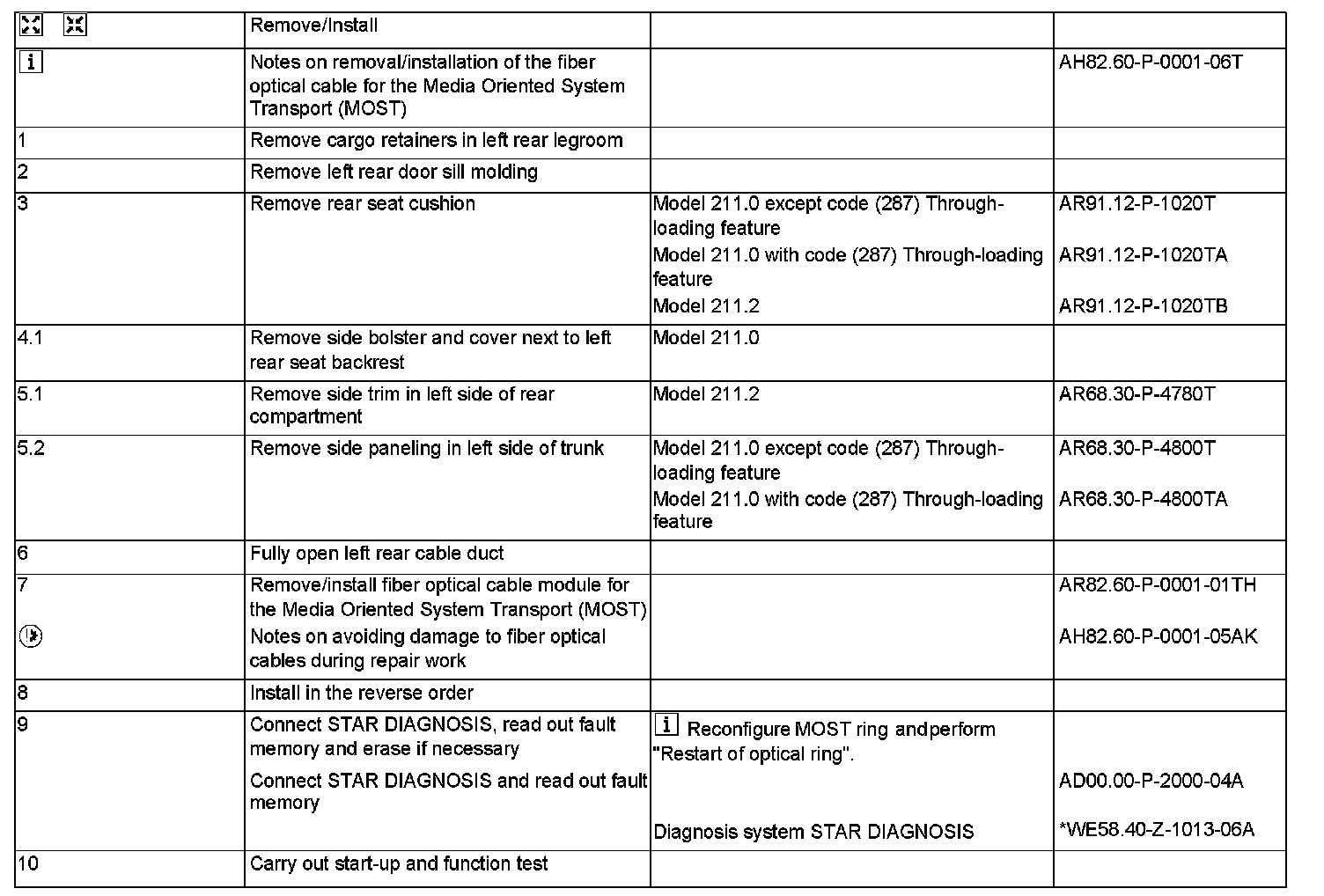

AR82.60-P-0001TH Remove/Install Fiber Optical Cable For the Media Oriented System Transport (MOST)



AR82.60-P-0001TH Remove/Install Fiber Optical Cable For the Media Oriented System Transport (MOST)
- with CODE (860) TV tuner

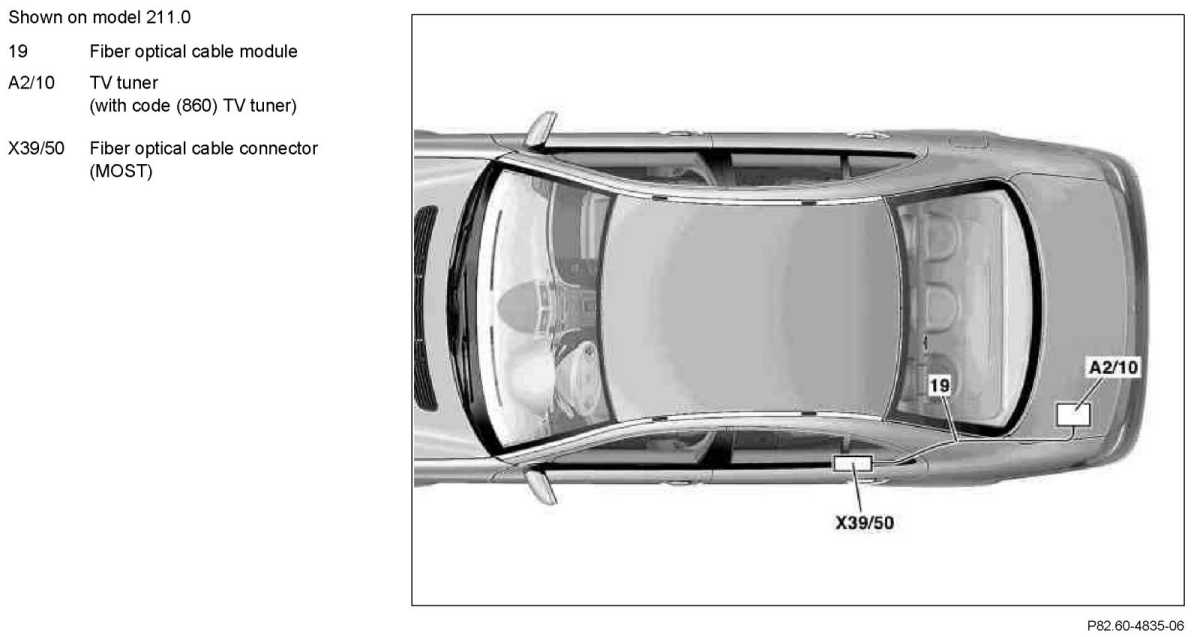

- Fiber optic cable (MOST) between TV tuner and fiber optical cable connector (MOST)
