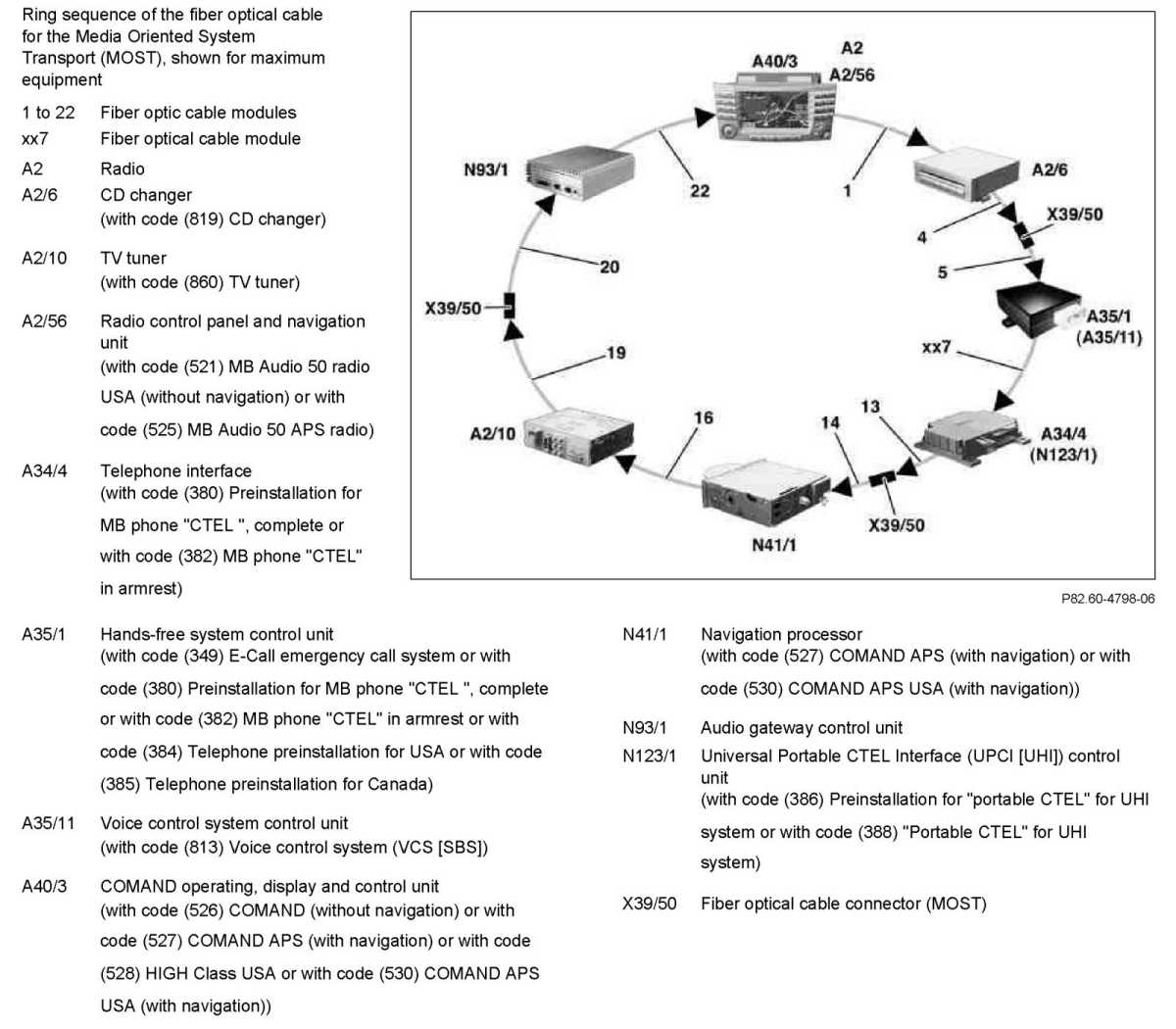

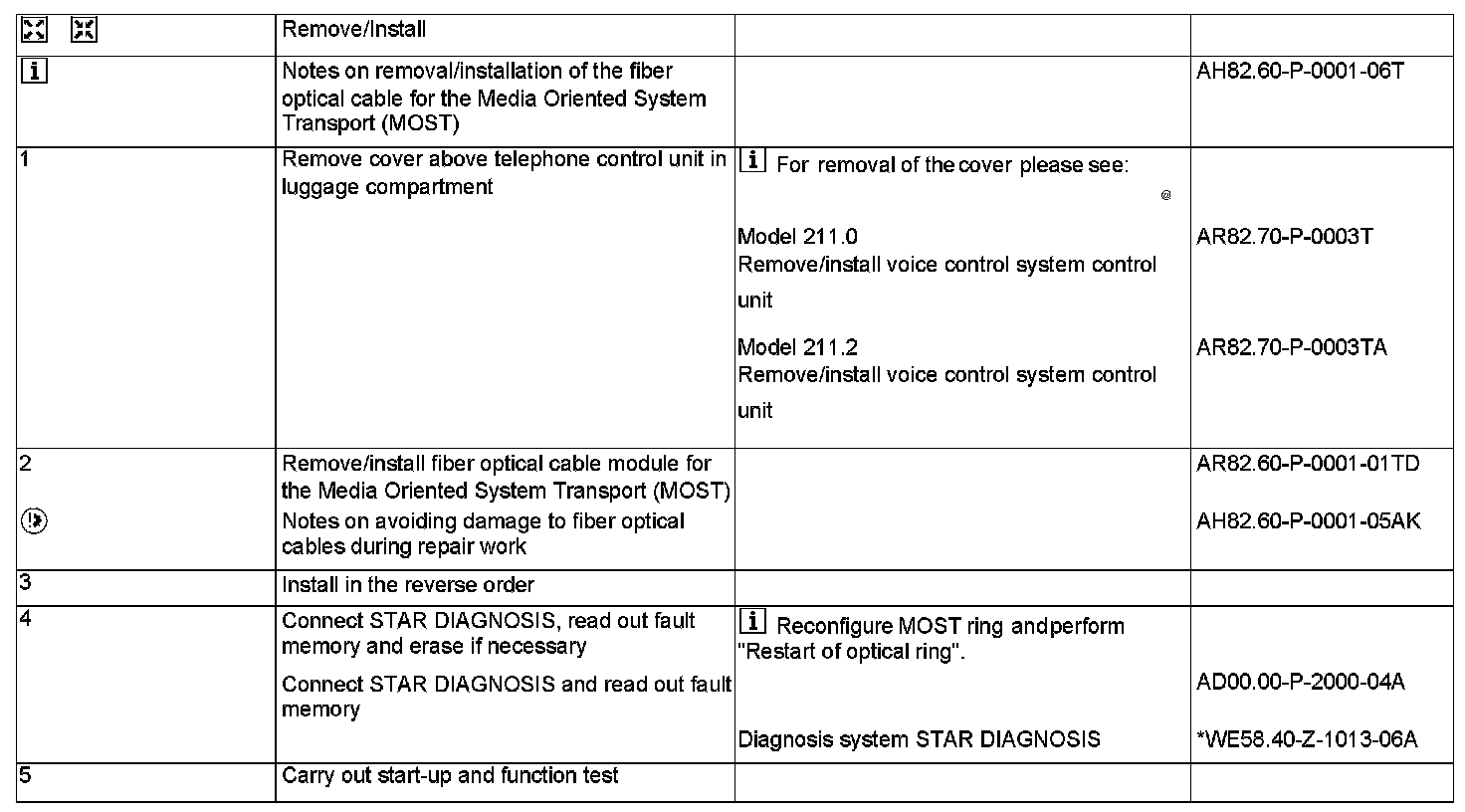

AR82.60-P-0001TD Remove/Install Fiber Optical Cable For the Media Oriented System Transport (MOST)



AR82.60-P-0001TD Remove/Install Fiber Optical Cable For the Media Oriented System Transport (MOST)
- with CODE (349) E-Call emergency call system
- with CODE (380) Preinstallation for MB phone "CTEL", complete
- with CODE (382) MB telephone "CTEL" in armrest
- with CODE (386) Preinstallation for "portable CTEL" UPCI telephone system
- with CODE (388) "Portable CTEL" UPCI telephone system
- with CODE (813) Coice control system (VCS)
- Fiber optic cable (MOST) between hands-free system control unit/VCS and portable CTEL control unit
