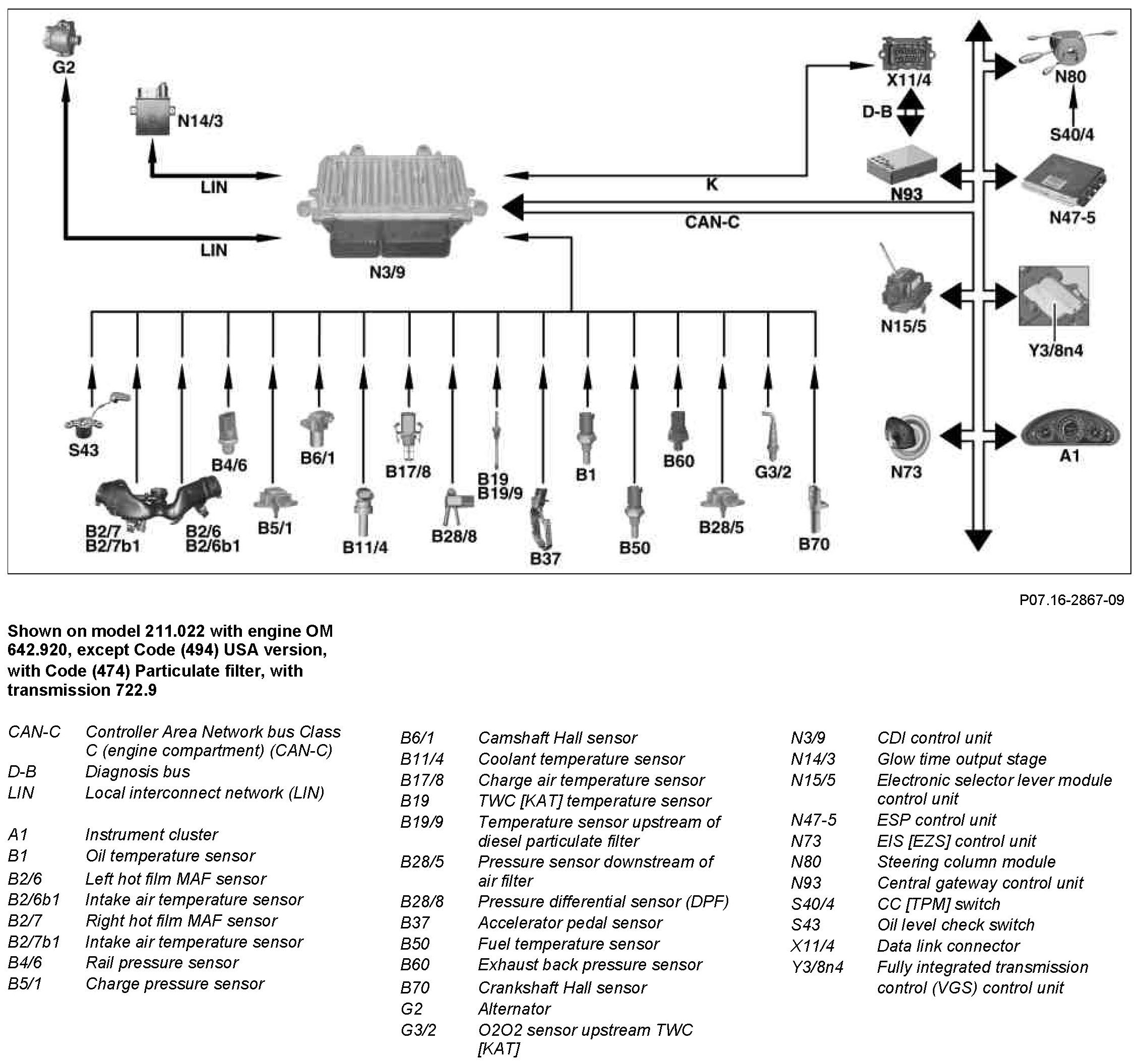

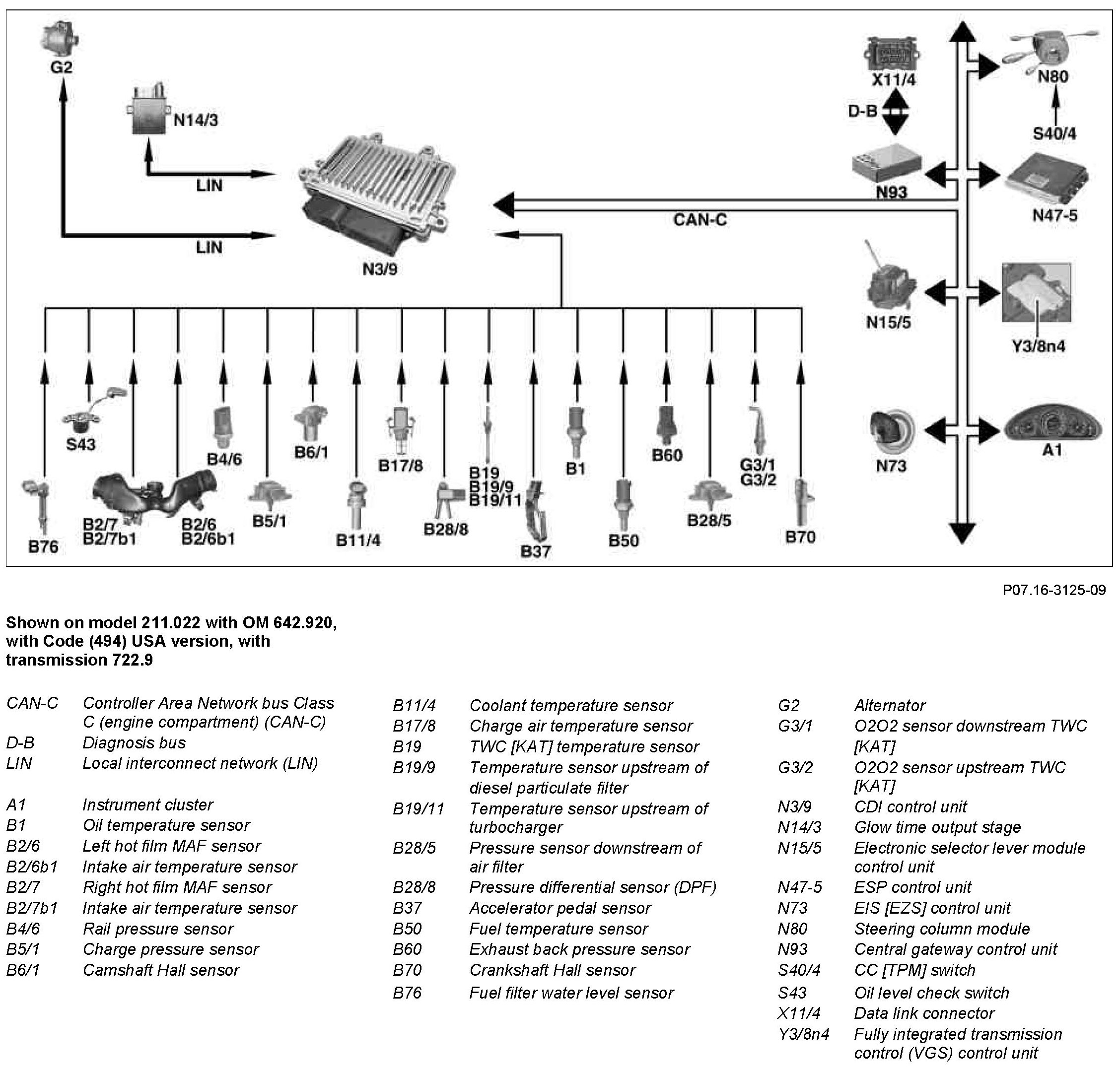

GF07.16-P-0001-06T Common Rail Diesel Injection (CDI), Control Unit Input Signals



GF07.16-P-0001-06T Common Rail Diesel Injection (CDI), Control Unit Input Signals


Component Identification:





Component Identification:
