AR35.20-P-0130-02TX Pull Bearing Inner Race Off Rear Axle Shaft Flange

AR35.20-P-0130-02TX Pull bearing inner race off rear axle shaft flange
- except CODE (Z07) Top protection [model 230]
- except CODE (P99) Special model "AMG Black Series" [model 230]

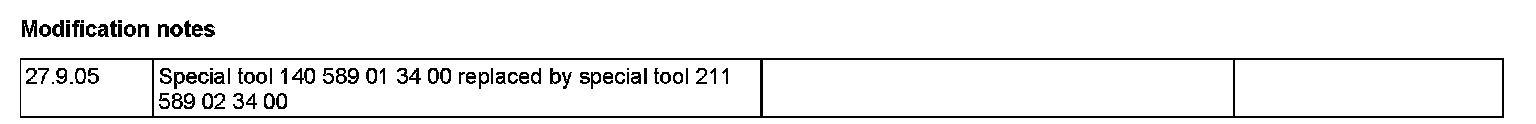

Modification Notes:

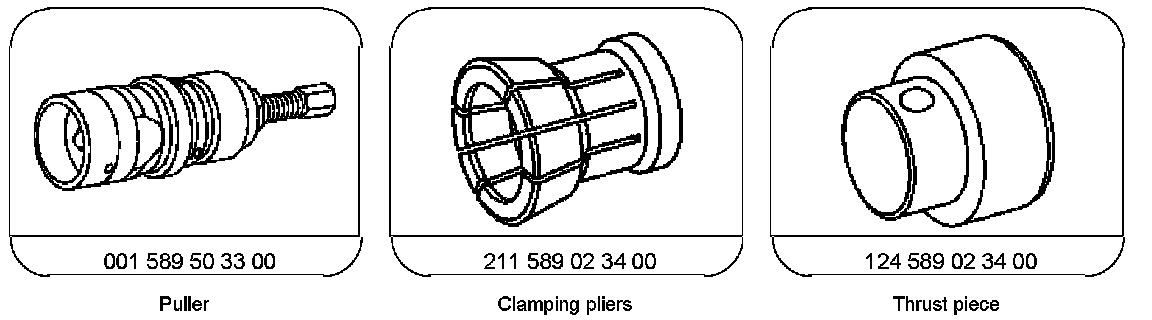

Special Tools:

Component Identification:

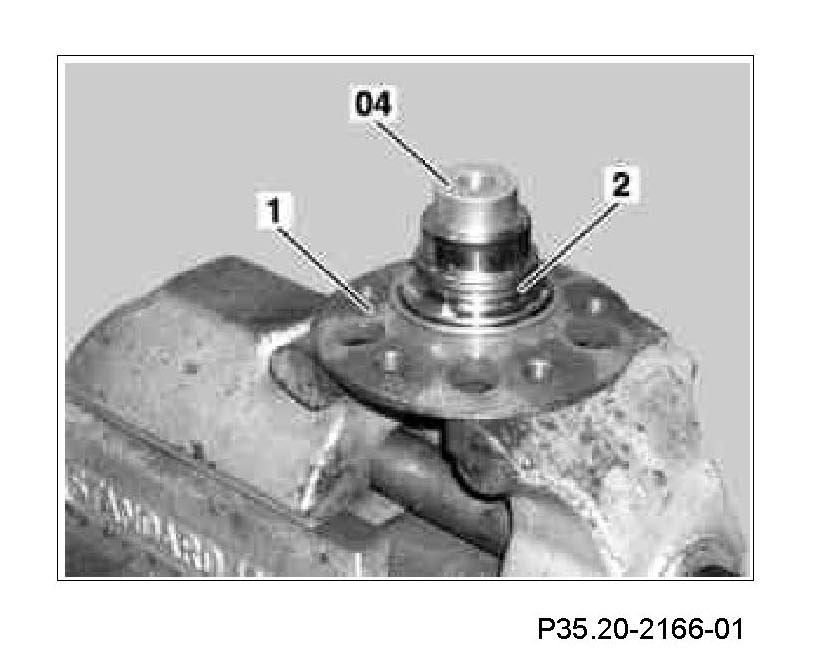

1 Clamp rear axle shaft flange (1) in vise.
2 Fit thrust piece (04) on rear axle shaft flange (1).

Component Identification:

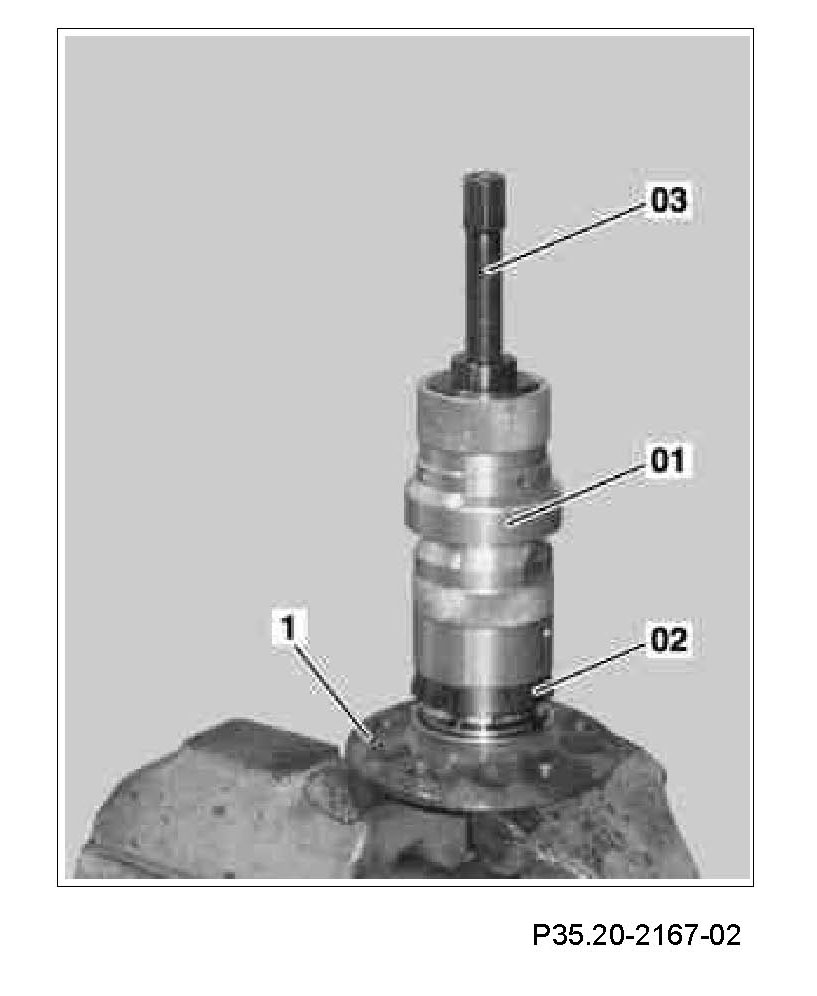

3 Screw clamping pliers (02) onto puller (01) and tighten.
4 Fit puller (01) on bearing inner race (2) and clamp securely.
5 Screw in pressure screw (03) and pull bearing inner race (2) off rear axle shaft flange (1) using puller (01).
