AR01.00-P-1200TI Testing The Compression Pressure



AR01.00-P-1200TI Testing the compression pressure

Component Identification:

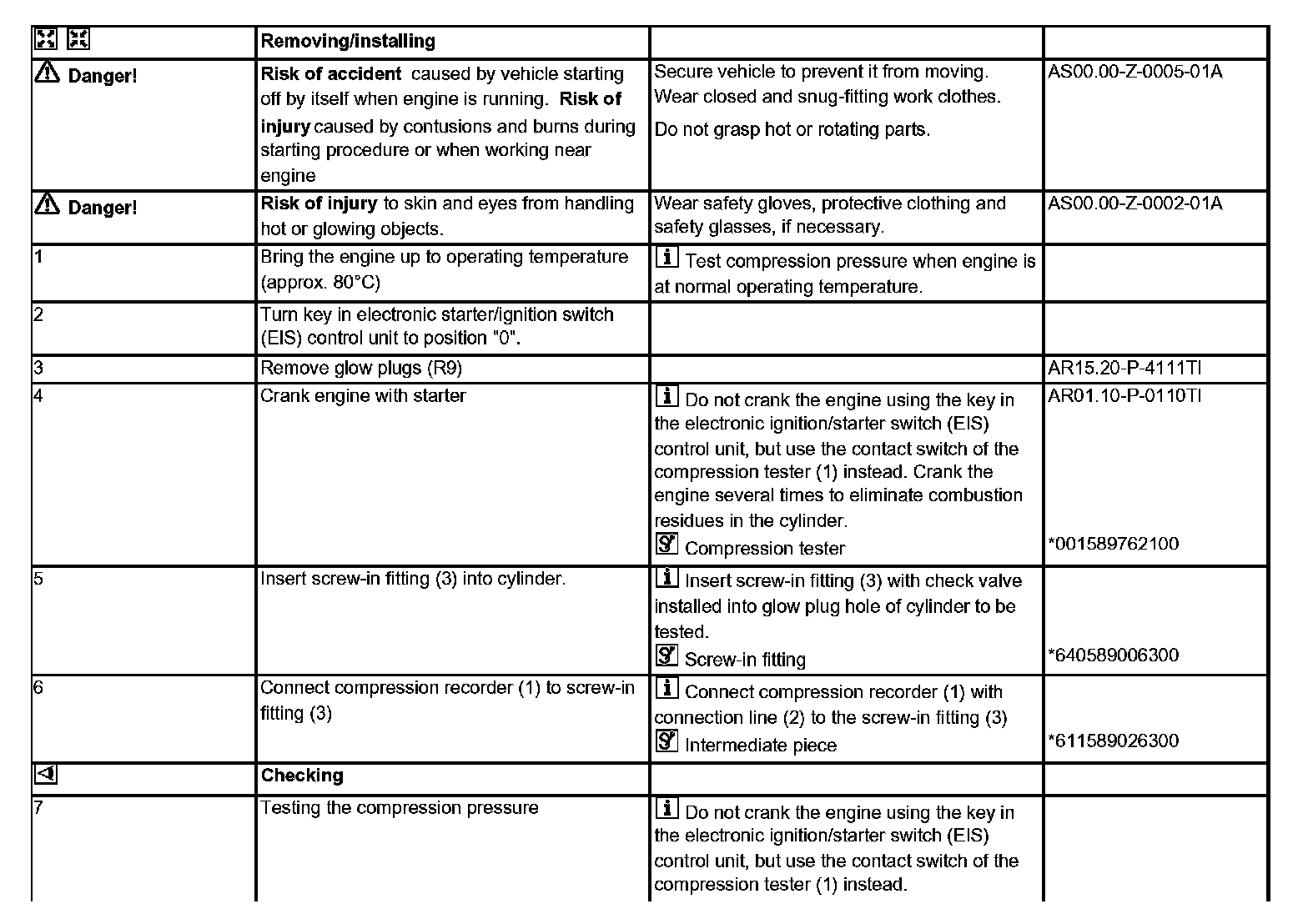

Remove/install Steps 1-7:

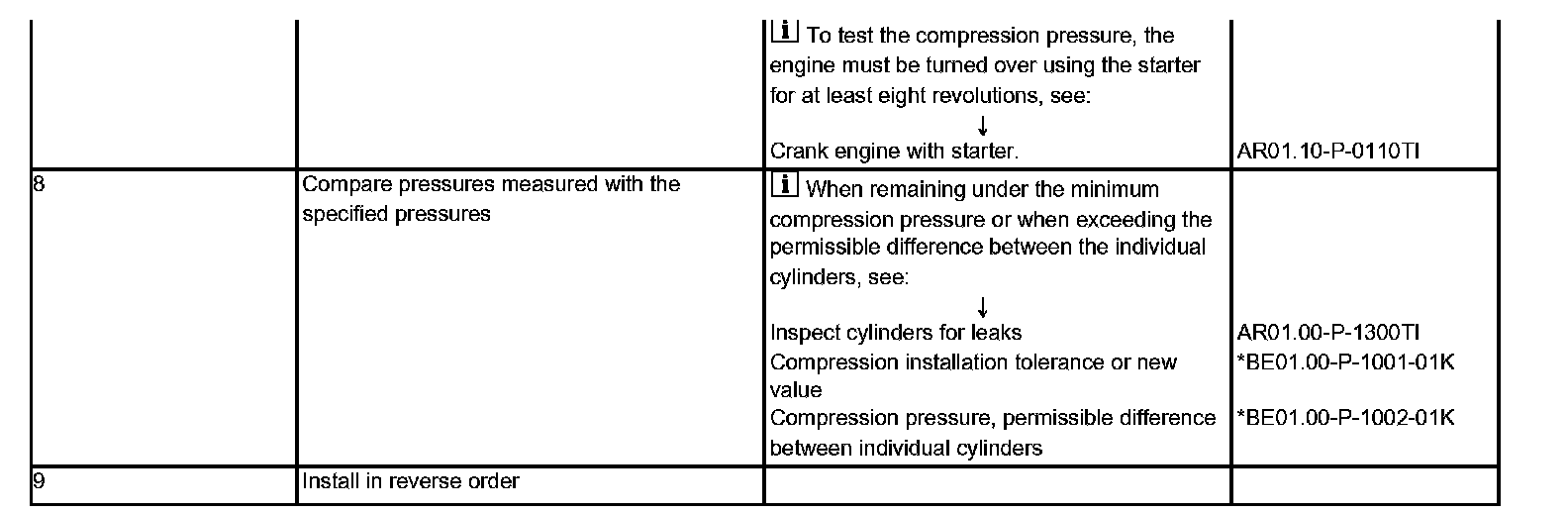

Remove/install Steps 7 (Continued)-9:




Compression pressure:




Special Tools:
