AR46.25-P-3016TI Remove/Install High-Pressure Expansion Hose of Power Steering



AR46.25-P-3016TI Remove/install high-pressure expansion hose of power steering

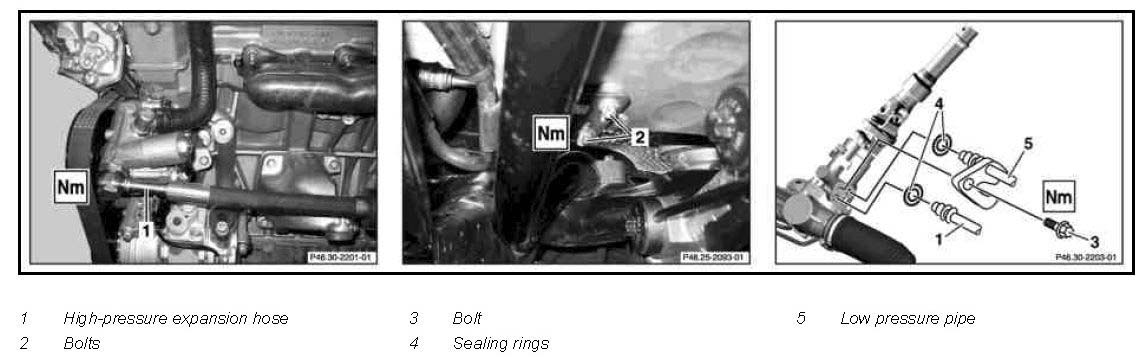

Component Identification:

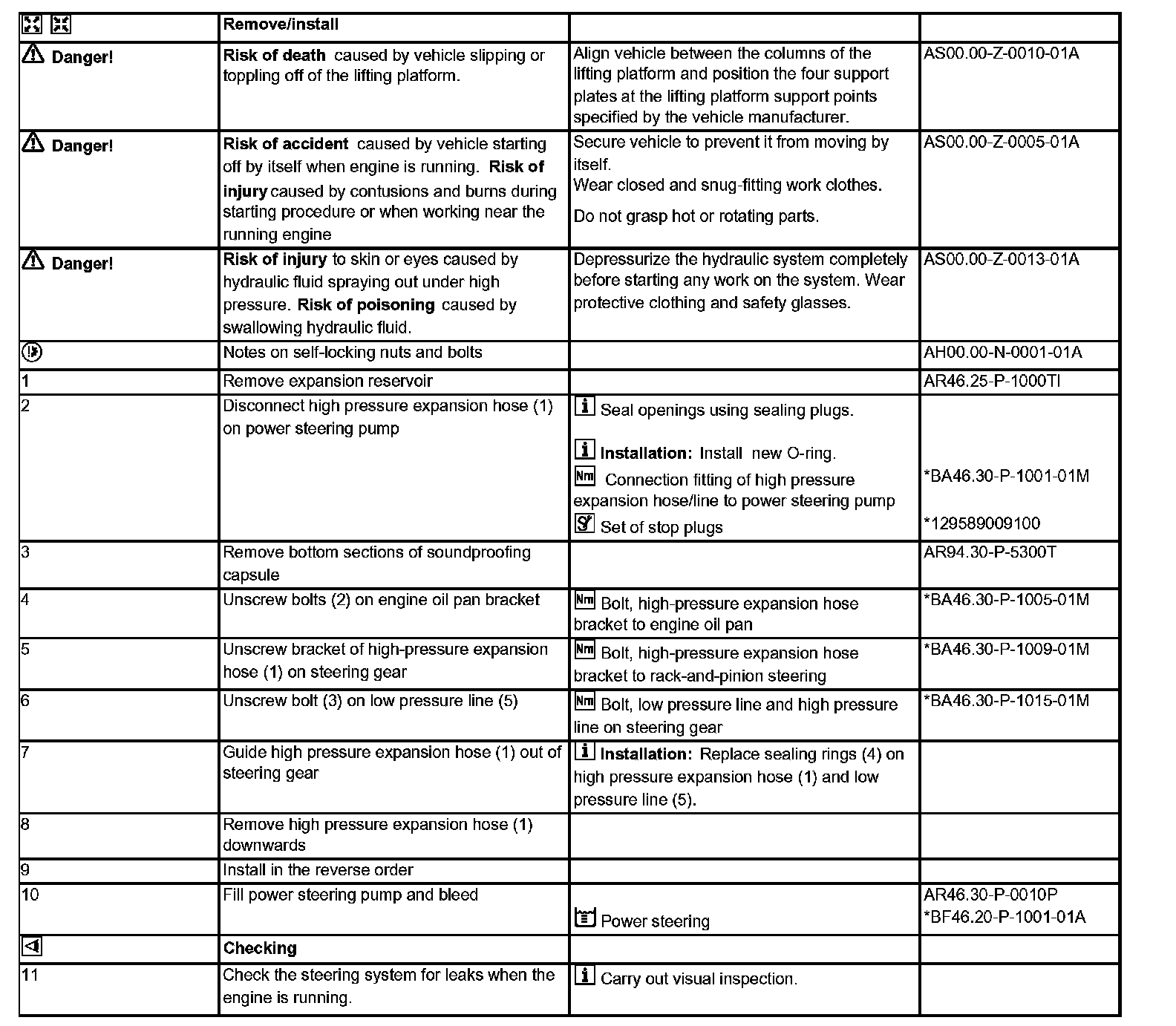

Remove/install Steps 1-11:

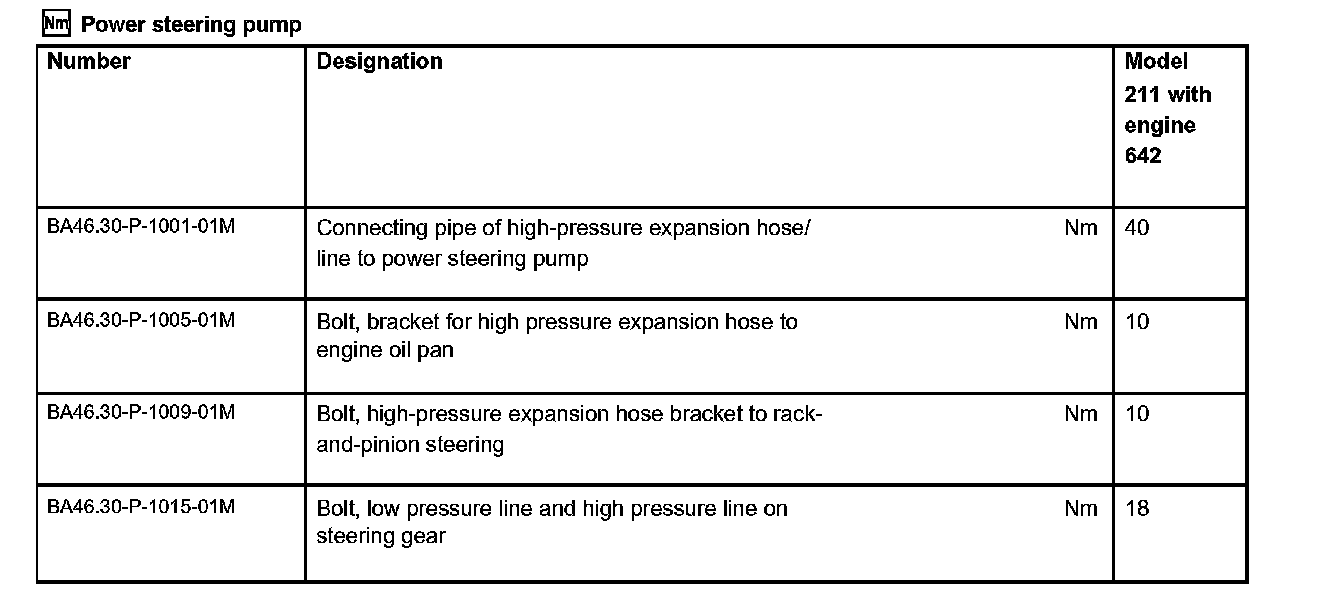

Power steering pump:

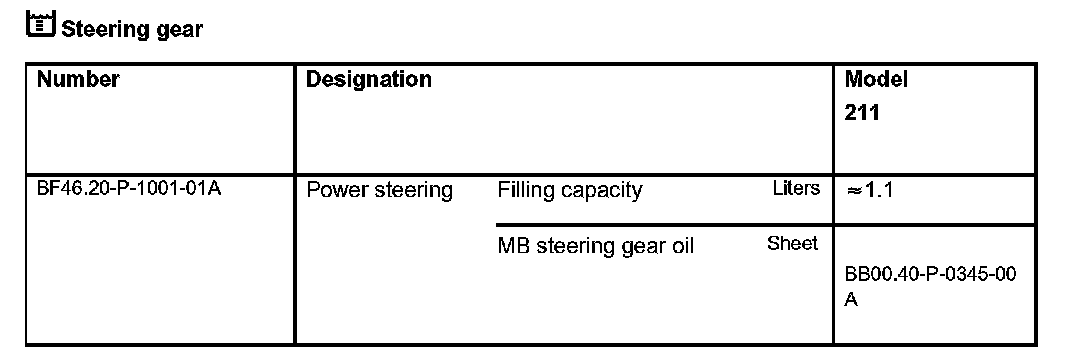

Steering gear:




Special Tools:
